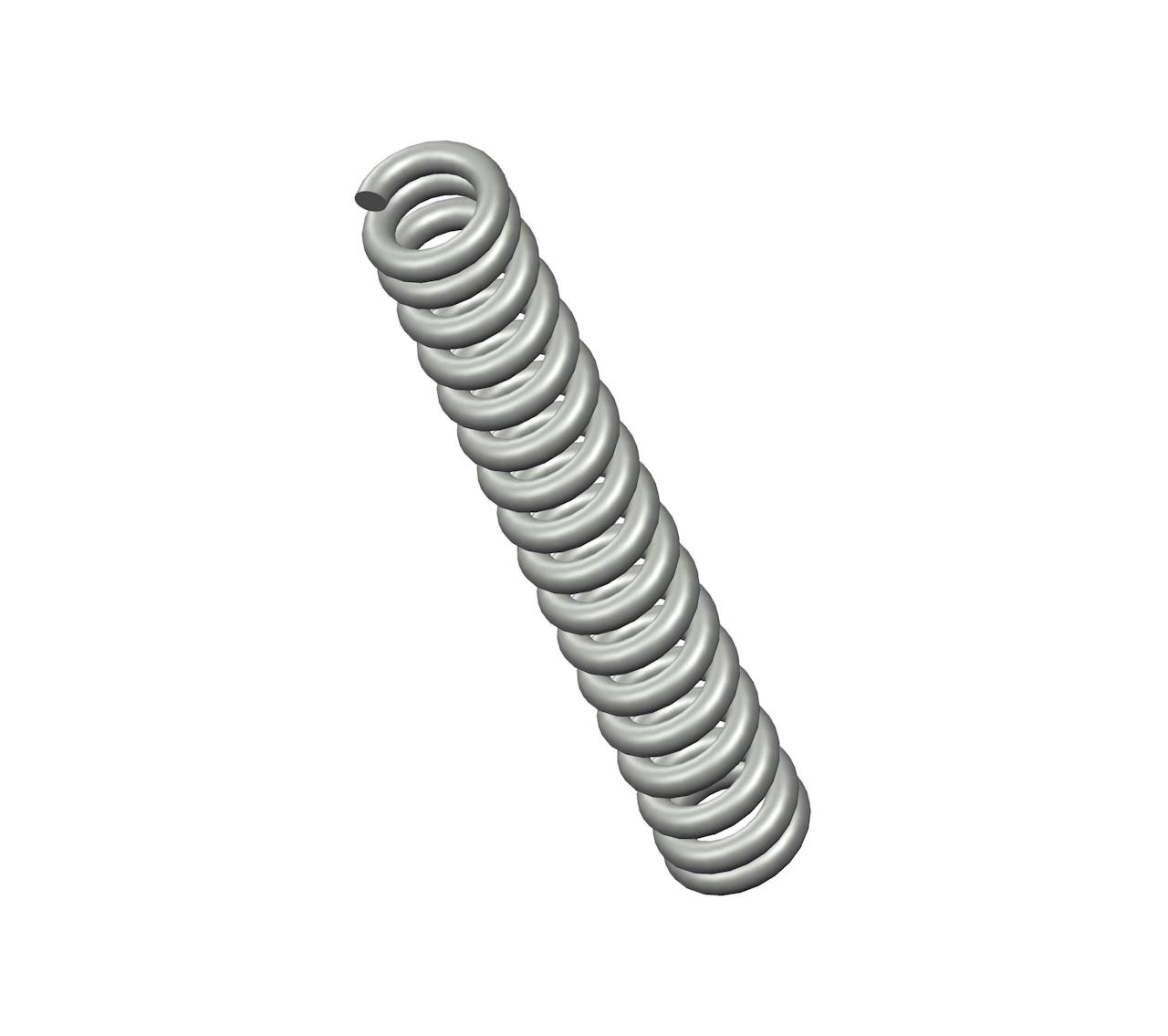

B4-14CS - 1.95" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 17 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.171".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B4-14 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.95 in |
| Inside Diameter | 0.171 in |
| Material | Spring Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 111 lbs/in |
| SKU | B4-14CS |
| Solid Length | 1.12 in |
| Suggested Max Deflection | 0.24 in |
| Suggested Max Load | 27 lbf |
| Total Coils | 17 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B4-14 |
| Ends | Closed |
| Finish | None |
| Free Length | 49.53 mm |
| Inside Diameter | 4.34 mm |
| Material | Spring Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 19.44 N/mm |
| SKU | B4-14CS |
| Solid Length | 28.45 mm |
| Suggested Max Deflection | 6.1 mm |
| Suggested Max Load | 120.1 N |
| Total Coils | 17 |
| Wire Diameter | 1.59 mm |
The B4-14 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The B4-14CS compression spring is designed with a free length of 1" total of 9 coils, and a rate of 5.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B4-14 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The B4-14CS compression spring is designed with a free length of 1" total of 9 coils, and a rate of 5.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B4-14 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
