PP-20CS - 1" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

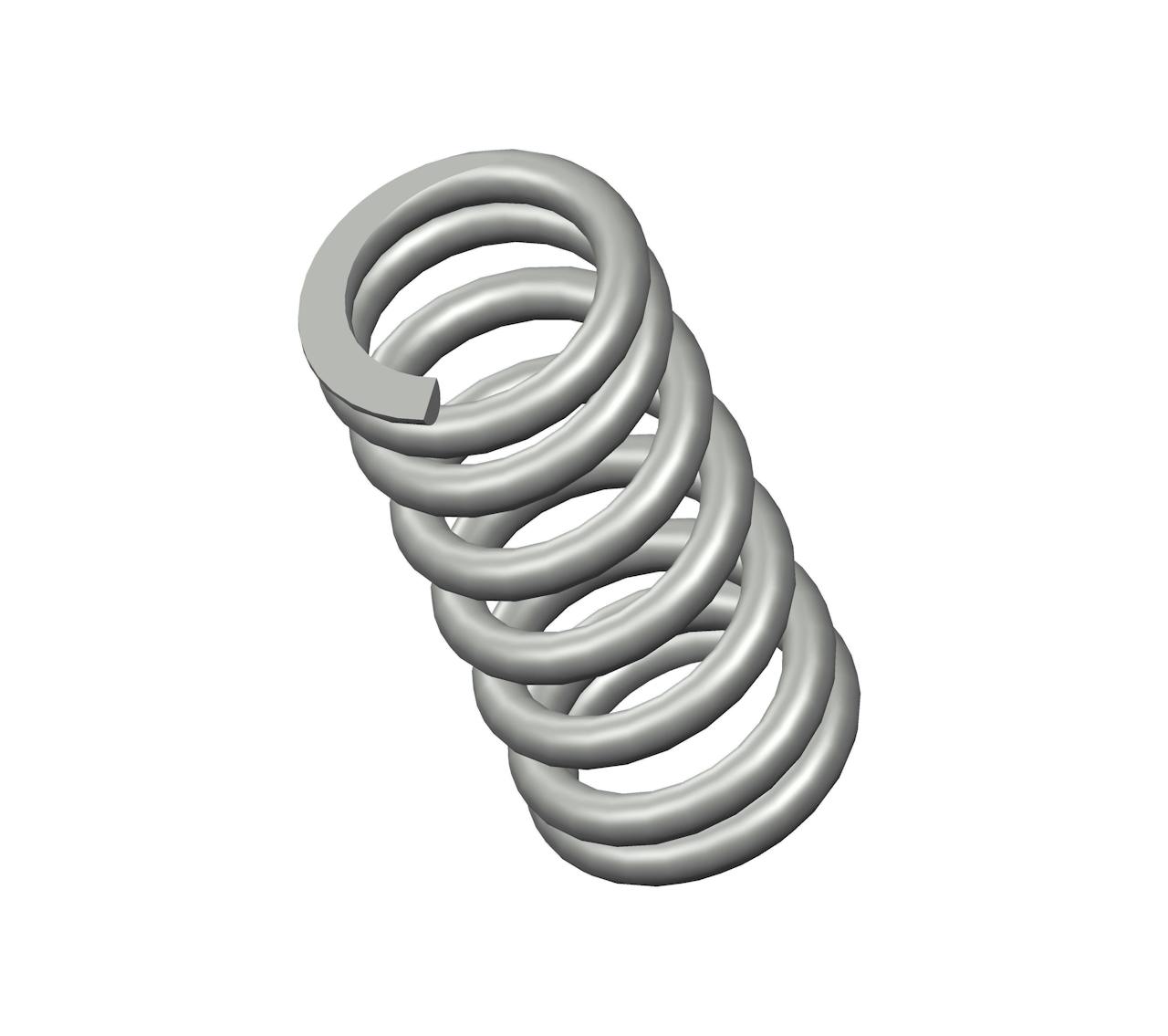

Compression spring manufactured from spring steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 0.468", and an I.D. of 0.328".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name PP-20
Ends Closed & Ground
Finish Zinc
Free Length 1 in
Inside Diameter 0.328 in
Material Spring Steel
Outside Diameter 0.468 in
Part Type Standard
Rate 100 lbs/in
SKU PP-20CS
Solid Length 0.53 in
Suggested Max Deflection 0.24 in
Suggested Max Load 24 lbf
Total Coils 7.5
Wire Diameter 0.07 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name PP-20
Ends Closed & Ground
Finish Zinc
Free Length 25.4 mm
Inside Diameter 8.33 mm
Material Spring Steel
Outside Diameter 11.89 mm
Part Type Standard
Rate 17.51 N/mm
SKU PP-20CS
Solid Length 13.46 mm
Suggested Max Deflection 6.1 mm
Suggested Max Load 106.75 N
Total Coils 7.5
Wire Diameter 1.78 mm
The PP-20CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.07" diameter spring steel, the PP-20 spring design exhibits reliable strength across its 7.5 active coils, withstanding repeated compression cycles with a maximum load of 24 lbf without succumbing to fatigue.

We manufacture the PP-20 design to provide a compression spring that is 1" long at rest and provides a consistent rate of 100 lbs/in along its recommended maximum of 0.24" deflection. For best results, your application should fully accommodate the inner (0.328") and outer (0.468") diameters of this spring and be designed for its closed & ground end configuration.
