75027SCS - 0.256" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

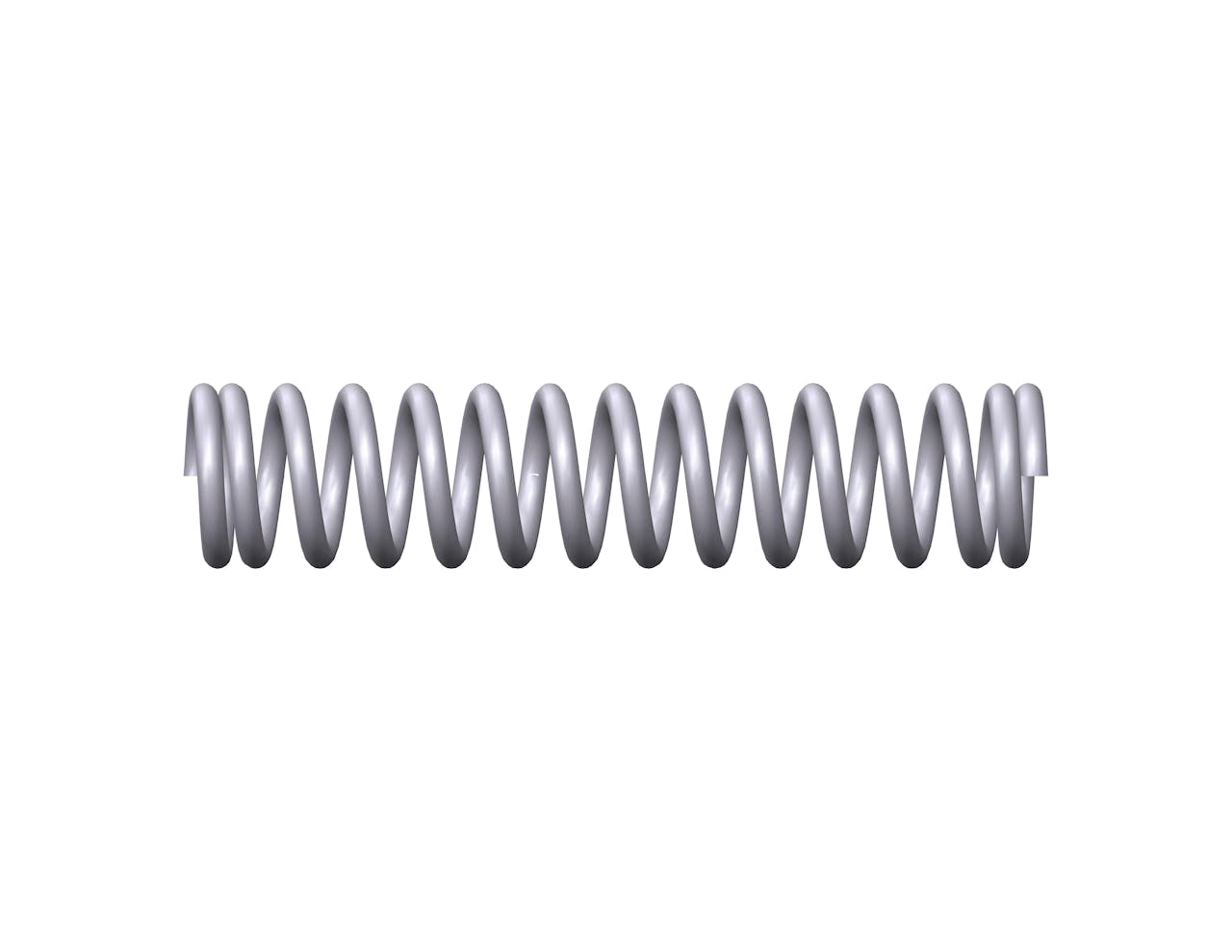

Compression spring manufactured from 302/304 stainless steel with 14.5 coils and closed ends. This spring features an O.D. of 0.055", and an I.D. of 0.039".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75027S |
| Ends | Closed |
| Finish | None |
| Free Length | 0.256 in |
| Inside Diameter | 0.039 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.055 in |
| Part Type | Metric |
| Rate | 3.808 lbs/in |
| SKU | 75027SCS |
| Solid Length | 0.122 in |
| Suggested Max Deflection | 0.097 in |
| Suggested Max Load | 0.369 lbf |
| Total Coils | 14.5 |
| Wire Diameter | 0.008 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75027S |
| Ends | Closed |
| Finish | None |
| Free Length | 6.5 mm |
| Inside Diameter | 0.99 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.4 mm |
| Part Type | Metric |
| Rate | 0.67 N/mm |
| SKU | 75027SCS |
| Solid Length | 3.1 mm |
| Suggested Max Deflection | 2.46 mm |
| Suggested Max Load | 1.64 N |
| Total Coils | 14.5 |
| Wire Diameter | 0.2 mm |
The compression spring 75027SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 75027S compression spring design exhibits exceptional tensile strength and resilience.
The 75027S design is manufactured with a free length of 0.256", with an outer diameter of 0.055", an inner diameter of 0.039", and a total of 14.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.808 lbs/in.
The 75027SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75027S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 75027S design is manufactured with a free length of 0.256", with an outer diameter of 0.055", an inner diameter of 0.039", and a total of 14.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.808 lbs/in.
The 75027SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75027S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
