NN-58CS - 0.5" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

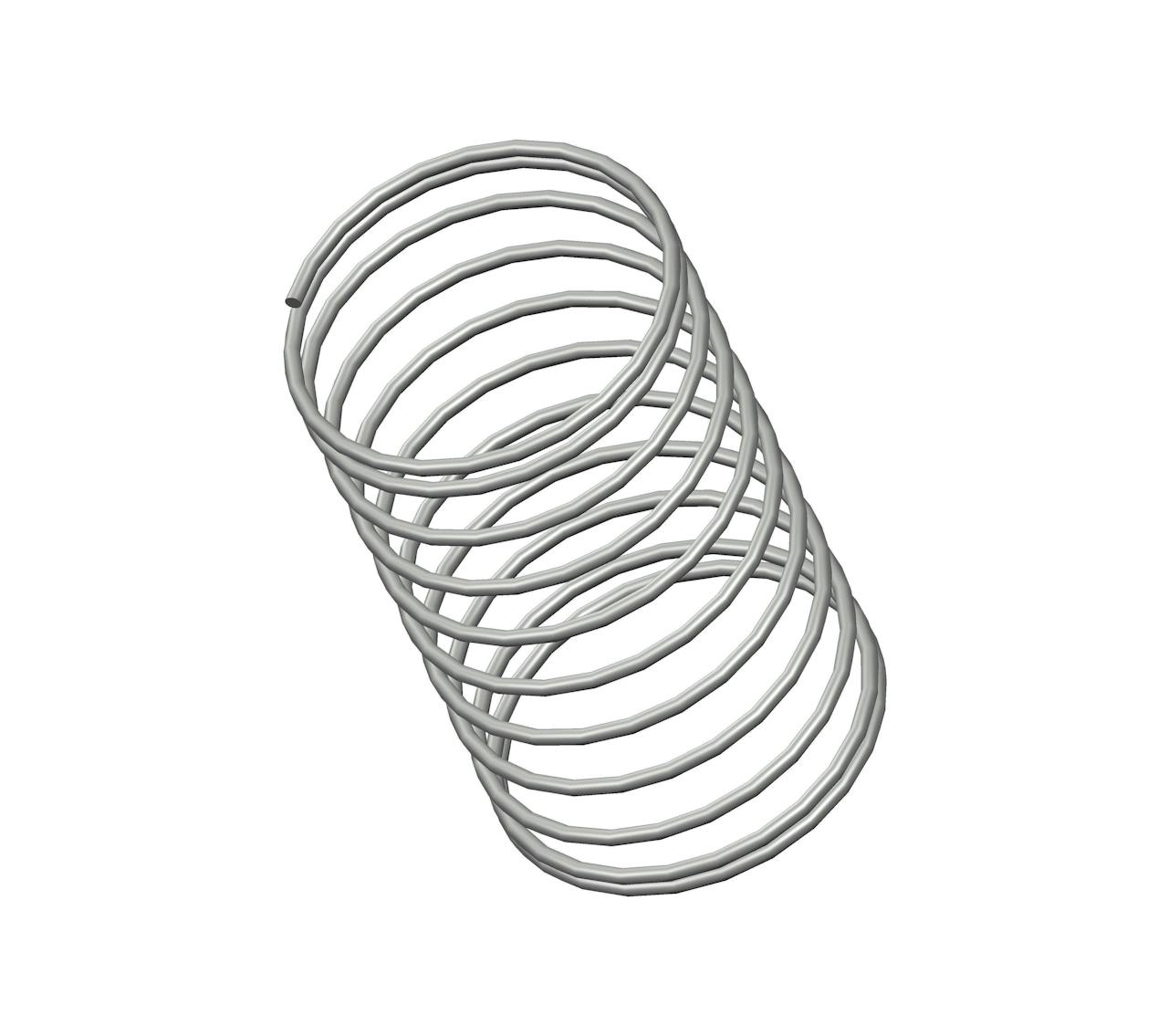

Compression spring manufactured from music wire with 11 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.272".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | NN-58 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.272 in |
| Material | Music Wire |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 0.14 lbs/in |
| SKU | NN-58CS |
| Solid Length | 0.14 in |
| Suggested Max Deflection | 0.36 in |
| Suggested Max Load | 0.05 lbf |
| Total Coils | 11 |
| Wire Diameter | 0.012 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | NN-58 |
| Ends | Closed |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 6.91 mm |
| Material | Music Wire |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 0.02 N/mm |
| SKU | NN-58CS |
| Solid Length | 3.56 mm |
| Suggested Max Deflection | 9.14 mm |
| Suggested Max Load | 0.22 N |
| Total Coils | 11 |
| Wire Diameter | 0.3 mm |
The NN-58CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.012" diameter music wire, the NN-58 spring design exhibits reliable strength across its 11 active coils, withstanding repeated compression cycles with a maximum load of 0.05 lbf without succumbing to fatigue.
We manufacture the NN-58 design to provide a compression spring that is 0.5" long at rest and provides a consistent rate of 0.14 lbs/in along its recommended maximum of 0.36" deflection. For best results, your application should fully accommodate the inner (0.272") and outer (0.296") diameters of this spring and be designed for its closed end configuration.
