Century Spring

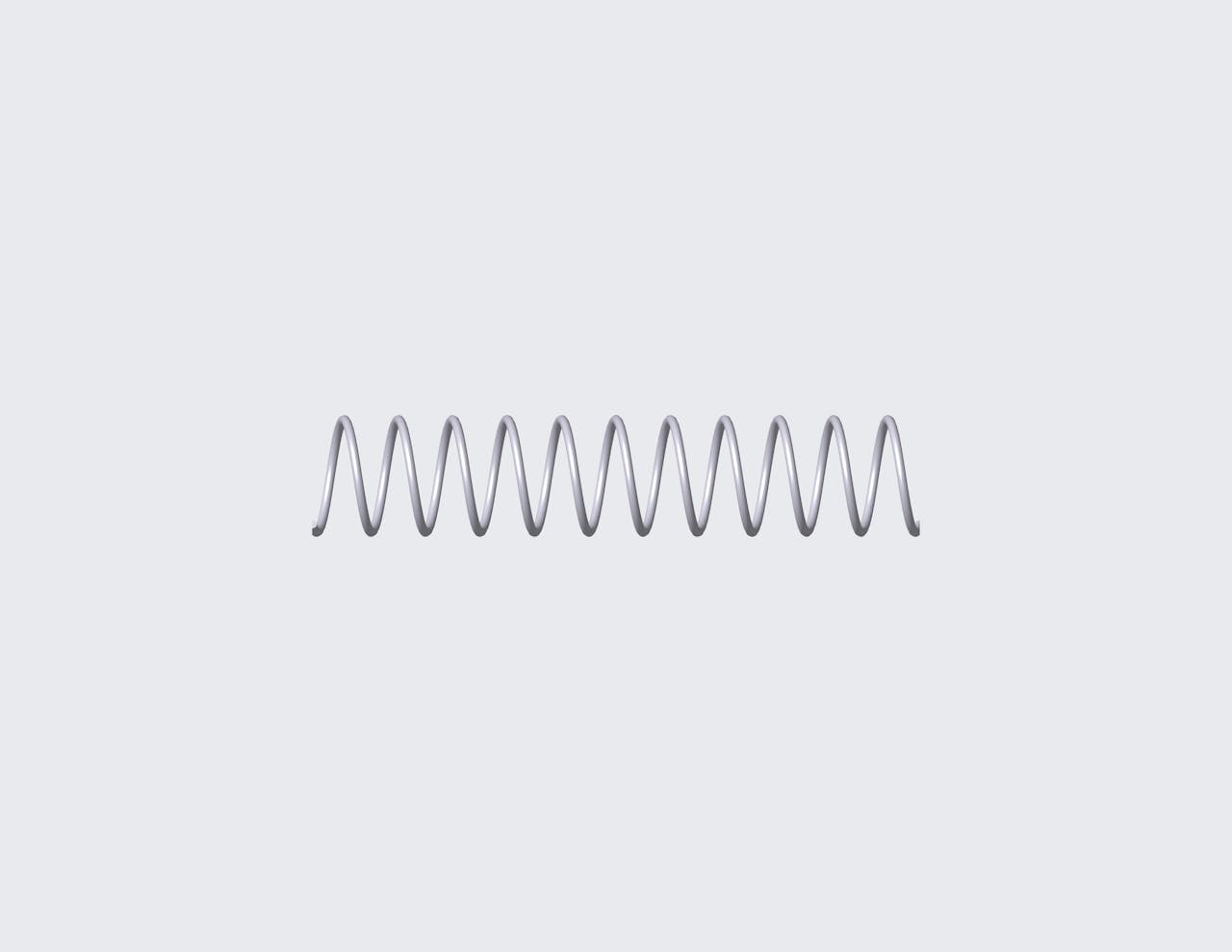

66060SCS - 0.44" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 14 coils and closed ends. This spring features an O.D. of 0.094", and an I.D. of 0.062".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 66060S
Ends Closed
Finish Passivated
Free Length 0.44 in
Inside Diameter 0.062 in
Material 316 Stainless Steel
Outside Diameter 0.094 in
Part Type Standard
Rate 14.385 lbs/in
SKU 66060SCS
Solid Length 0.24 in
Suggested Max Deflection 0.089 in
Suggested Max Load 1.28 lbf
Total Coils 14
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 66060S
Ends Closed
Finish Passivated
Free Length 11.18 mm
Inside Diameter 1.57 mm
Material 316 Stainless Steel
Outside Diameter 2.39 mm
Part Type Standard
Rate 2.52 N/mm
SKU 66060SCS
Solid Length 6.1 mm
Suggested Max Deflection 2.26 mm
Suggested Max Load 5.69 N
Total Coils 14
Wire Diameter 0.41 mm
The 66060SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.016" diameter 316 stainless steel, the 66060S spring design exhibits reliable strength across its 14 active coils, withstanding repeated compression cycles with a maximum load of 1.28 lbf without succumbing to fatigue.

We manufacture the 66060S design to provide a compression spring that is 0.44" long at rest and provides a consistent rate of 14.385 lbs/in along its recommended maximum of 0.089" deflection. For best results, your application should fully accommodate the inner (0.062") and outer (0.094") diameters of this spring and be designed for its closed end configuration.
