MM-44CS - 1.88" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

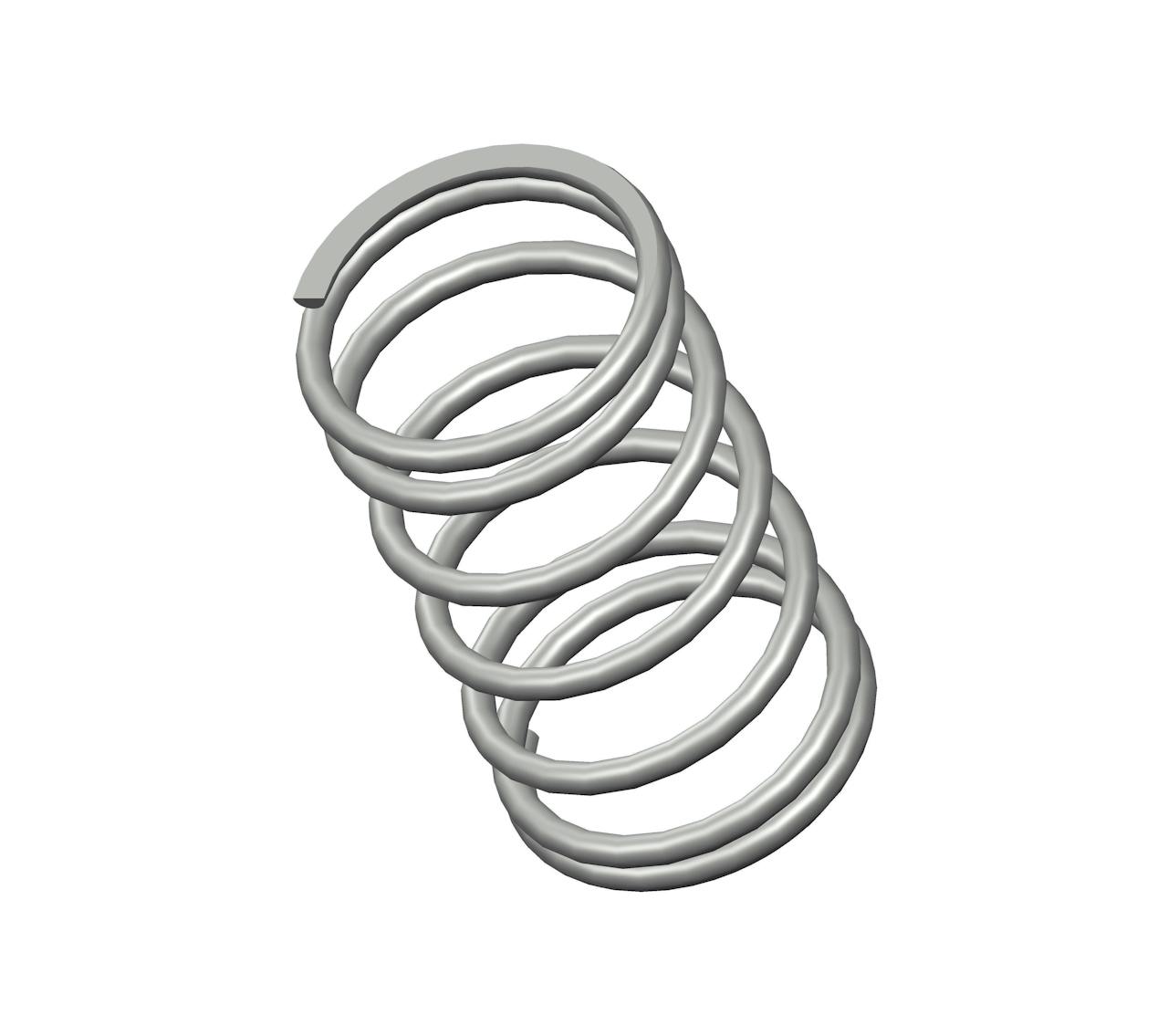

Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 1.062", and an I.D. of 0.882".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | MM-44 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.88 in |
| Inside Diameter | 0.882 in |
| Material | Spring Steel |
| Outside Diameter | 1.062 in |
| Part Type | Standard |
| Rate | 21 lbs/in |
| SKU | MM-44CS |
| Solid Length | 0.63 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 23 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.09 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | MM-44 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 47.75 mm |
| Inside Diameter | 22.4 mm |
| Material | Spring Steel |
| Outside Diameter | 26.97 mm |
| Part Type | Standard |
| Rate | 3.68 N/mm |
| SKU | MM-44CS |
| Solid Length | 16 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 102.3 N |
| Total Coils | 7 |
| Wire Diameter | 2.29 mm |
The MM-44 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The MM-44CS compression spring is designed with a free length of 0.94" total of 7 coils, and a rate of 395 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The MM-44 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The MM-44CS compression spring is designed with a free length of 0.94" total of 7 coils, and a rate of 395 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The MM-44 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
