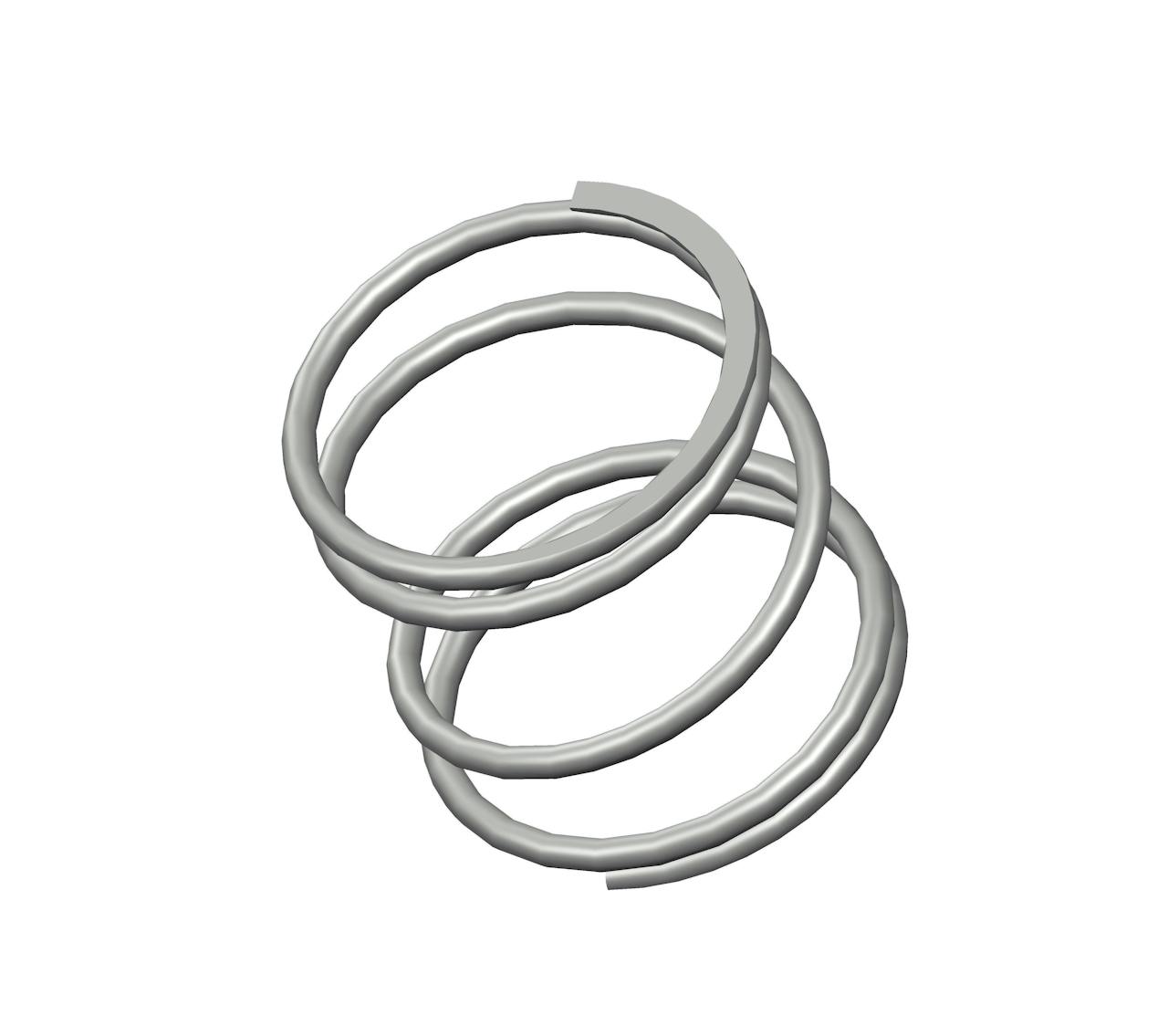

B18-203CS - 1.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 4.5 coils and closed & ground ends. This spring features an O.D. of 1.765", and an I.D. of 1.527".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B18-203
Ends Closed & Ground
Finish None
Free Length 1.75 in
Inside Diameter 1.527 in
Material Spring Steel
Outside Diameter 1.765 in
Part Type Standard
Rate 26 lbs/in
SKU B18-203CS
Solid Length 0.54 in
Suggested Max Deflection 1.2 in
Suggested Max Load 31 lbf
Total Coils 4.5
Wire Diameter 0.119 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B18-203
Ends Closed & Ground
Finish None
Free Length 44.45 mm
Inside Diameter 38.79 mm
Material Spring Steel
Outside Diameter 44.83 mm
Part Type Standard
Rate 4.55 N/mm
SKU B18-203CS
Solid Length 13.72 mm
Suggested Max Deflection 30.48 mm
Suggested Max Load 137.89 N
Total Coils 4.5
Wire Diameter 3.02 mm
The B18-203CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.119" diameter spring steel, the B18-203 spring design exhibits reliable strength across its 4.5 active coils, withstanding repeated compression cycles with a maximum load of 31 lbf without succumbing to fatigue.

We manufacture the B18-203 design to provide a compression spring that is 1.75" long at rest and provides a consistent rate of 26 lbs/in along its recommended maximum of 1.2" deflection. For best results, your application should fully accommodate the inner (1.527") and outer (1.765") diameters of this spring and be designed for its closed & ground end configuration.
