L-80CS - 0.19" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

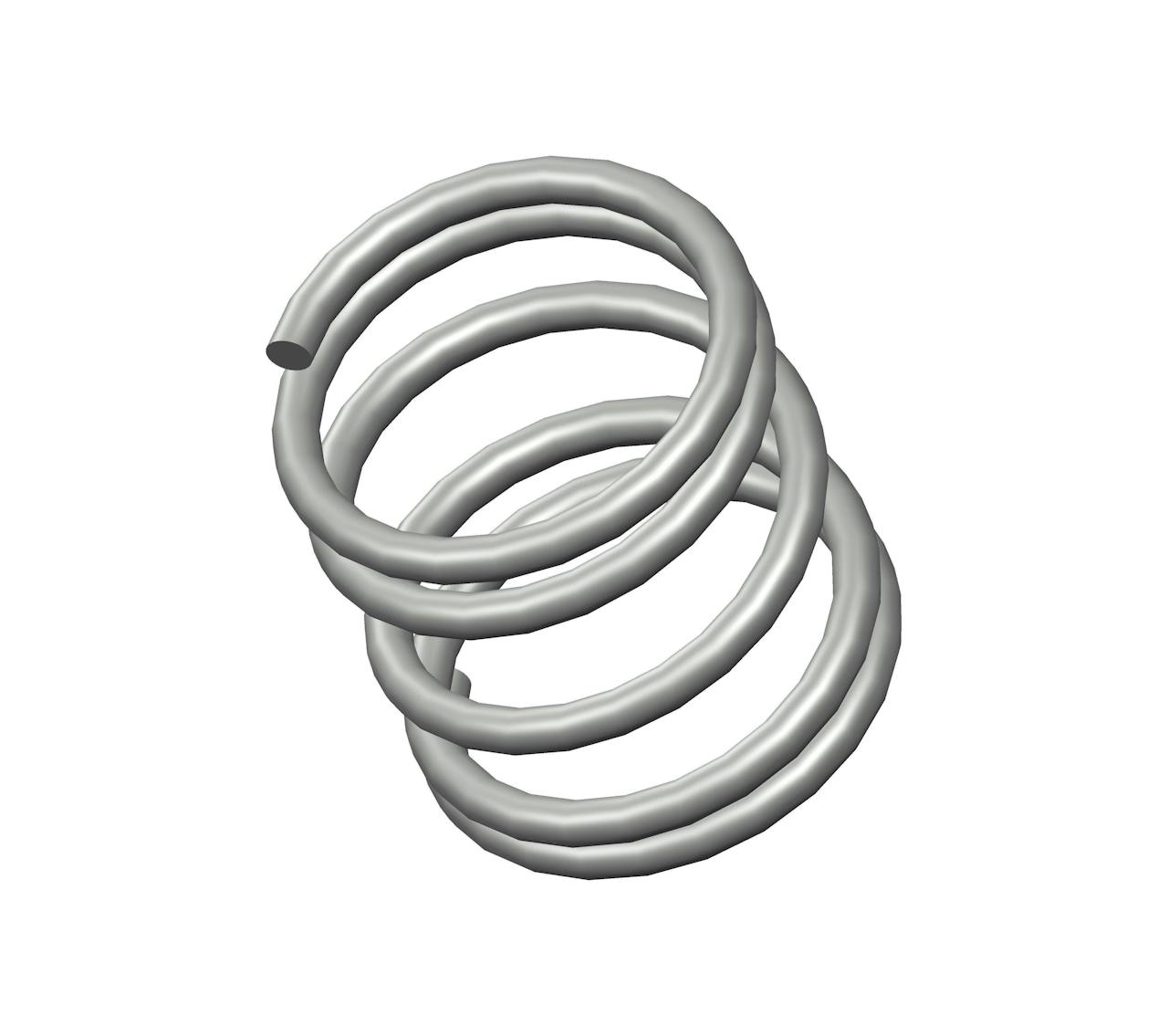

Compression spring manufactured from music wire with 5 coils and closed ends. This spring features an O.D. of 0.172", and an I.D. of 0.14".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-80 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.19 in |
| Inside Diameter | 0.14 in |
| Material | Music Wire |
| Outside Diameter | 0.172 in |
| Part Type | Standard |
| Rate | 8.3 lbs/in |
| SKU | L-80CS |
| Solid Length | 0.1 in |
| Suggested Max Deflection | 0.09 in |
| Suggested Max Load | 0.76 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.016 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-80 |
| Ends | Closed |
| Finish | None |
| Free Length | 4.83 mm |
| Inside Diameter | 3.56 mm |
| Material | Music Wire |
| Outside Diameter | 4.37 mm |
| Part Type | Standard |
| Rate | 1.45 N/mm |
| SKU | L-80CS |
| Solid Length | 2.54 mm |
| Suggested Max Deflection | 2.29 mm |
| Suggested Max Load | 3.38 N |
| Total Coils | 5 |
| Wire Diameter | 0.41 mm |
The compression spring L-80CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the L-80 compression spring design exhibits exceptional tensile strength and resilience.
The L-80 design is manufactured with a free length of 0.19", with an outer diameter of 0.172", an inner diameter of 0.14", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.3 lbs/in.
The L-80CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-80 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-80 design is manufactured with a free length of 0.19", with an outer diameter of 0.172", an inner diameter of 0.14", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.3 lbs/in.
The L-80CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-80 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
