Century Spring

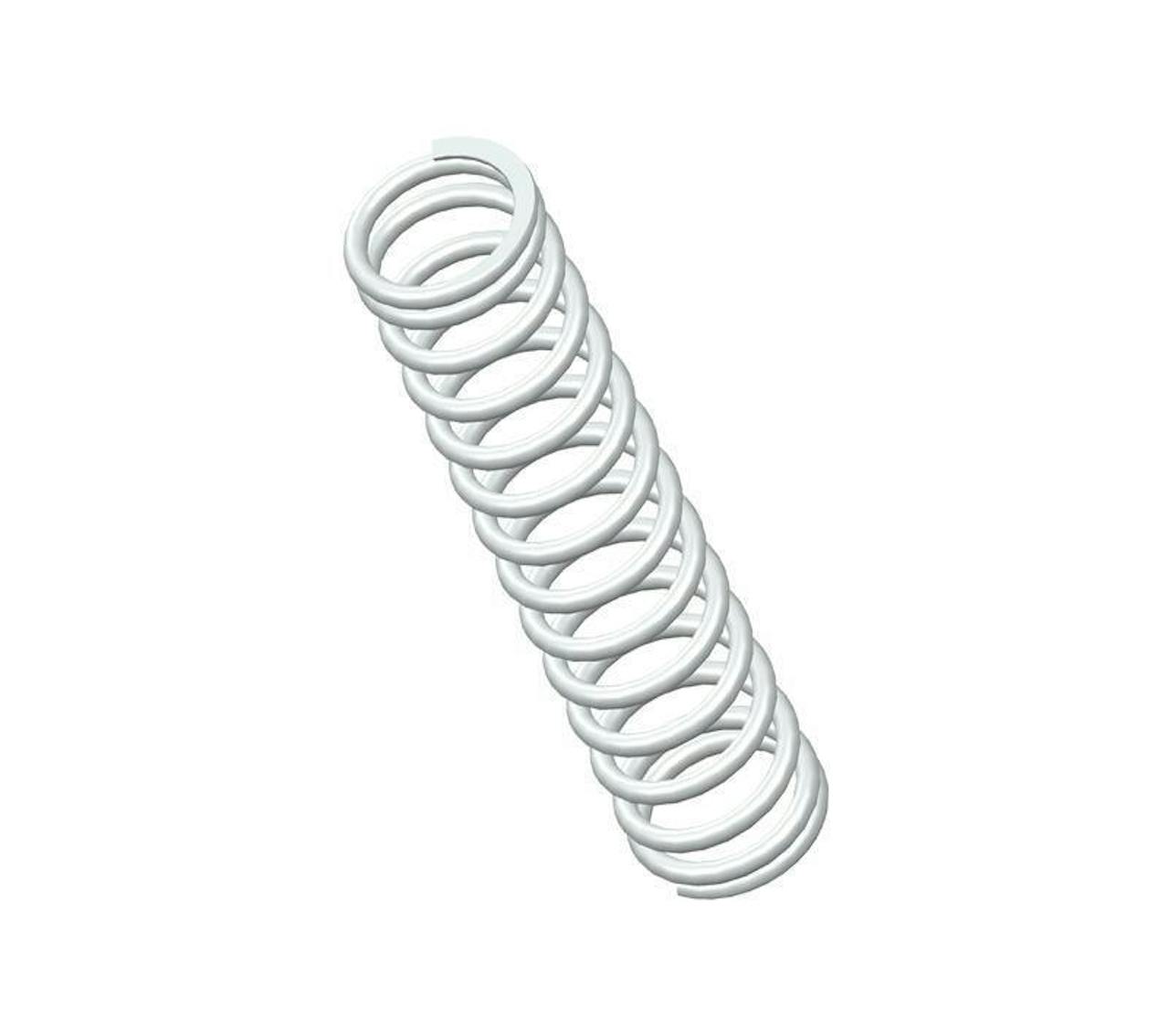

71695SCS - 2.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 14.5 coils and closed & ground ends. This spring features an O.D. of 0.54", and an I.D. of 0.414".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 71695S
Ends Closed & Ground
Finish None
Free Length 2.5 in
Inside Diameter 0.414 in
Material 302/304 Stainless Steel
Outside Diameter 0.54 in
Part Type Standard
Rate 14 lbs/in
SKU 71695SCS
Solid Length 0.907 in
Suggested Max Deflection 1.071 in
Suggested Max Load 15 lbf
Total Coils 14.5
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 71695S
Ends Closed & Ground
Finish None
Free Length 63.5 mm
Inside Diameter 10.52 mm
Material 302/304 Stainless Steel
Outside Diameter 13.72 mm
Part Type Standard
Rate 2.45 N/mm
SKU 71695SCS
Solid Length 23.04 mm
Suggested Max Deflection 27.2 mm
Suggested Max Load 66.72 N
Total Coils 14.5
Wire Diameter 1.59 mm
The compression spring 71695SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 71695S compression spring design exhibits exceptional tensile strength and resilience.

The 71695S design is manufactured with a free length of 2.5", with an outer diameter of 0.54", an inner diameter of 0.414", and a total of 14.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 14 lbs/in.

The 71695SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 71695S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
