L-75CS - 0.56" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

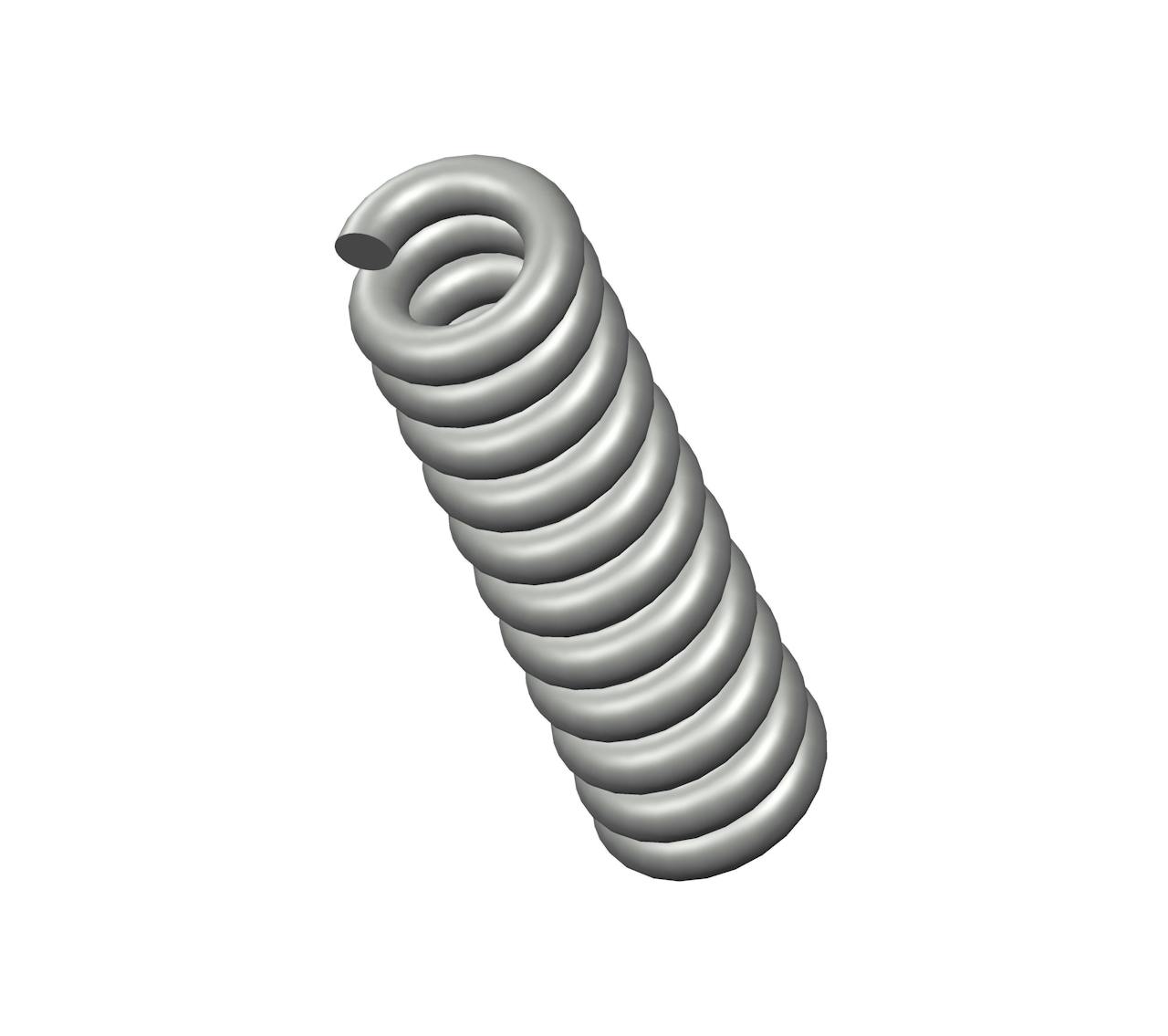

Compression spring manufactured from spring steel with 11 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.082".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-75 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.56 in |
| Inside Diameter | 0.082 in |
| Material | Spring Steel |
| Outside Diameter | 0.156 in |
| Part Type | Standard |
| Rate | 178 lbs/in |
| SKU | L-75CS |
| Solid Length | 0.44 in |
| Suggested Max Deflection | 0.06 in |
| Suggested Max Load | 11 lbf |
| Total Coils | 11 |
| Wire Diameter | 0.037 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | L-75 |
| Ends | Closed |
| Finish | None |
| Free Length | 14.22 mm |
| Inside Diameter | 2.08 mm |
| Material | Spring Steel |
| Outside Diameter | 3.96 mm |
| Part Type | Standard |
| Rate | 31.17 N/mm |
| SKU | L-75CS |
| Solid Length | 11.18 mm |
| Suggested Max Deflection | 1.52 mm |
| Suggested Max Load | 48.93 N |
| Total Coils | 11 |
| Wire Diameter | 0.94 mm |
The compression spring L-75CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the L-75 compression spring design exhibits exceptional tensile strength and resilience.
The L-75 design is manufactured with a free length of 0.56", with an outer diameter of 0.156", an inner diameter of 0.082", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 178 lbs/in.
The L-75CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-75 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The L-75 design is manufactured with a free length of 0.56", with an outer diameter of 0.156", an inner diameter of 0.082", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 178 lbs/in.
The L-75CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring L-75 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
