Century Spring

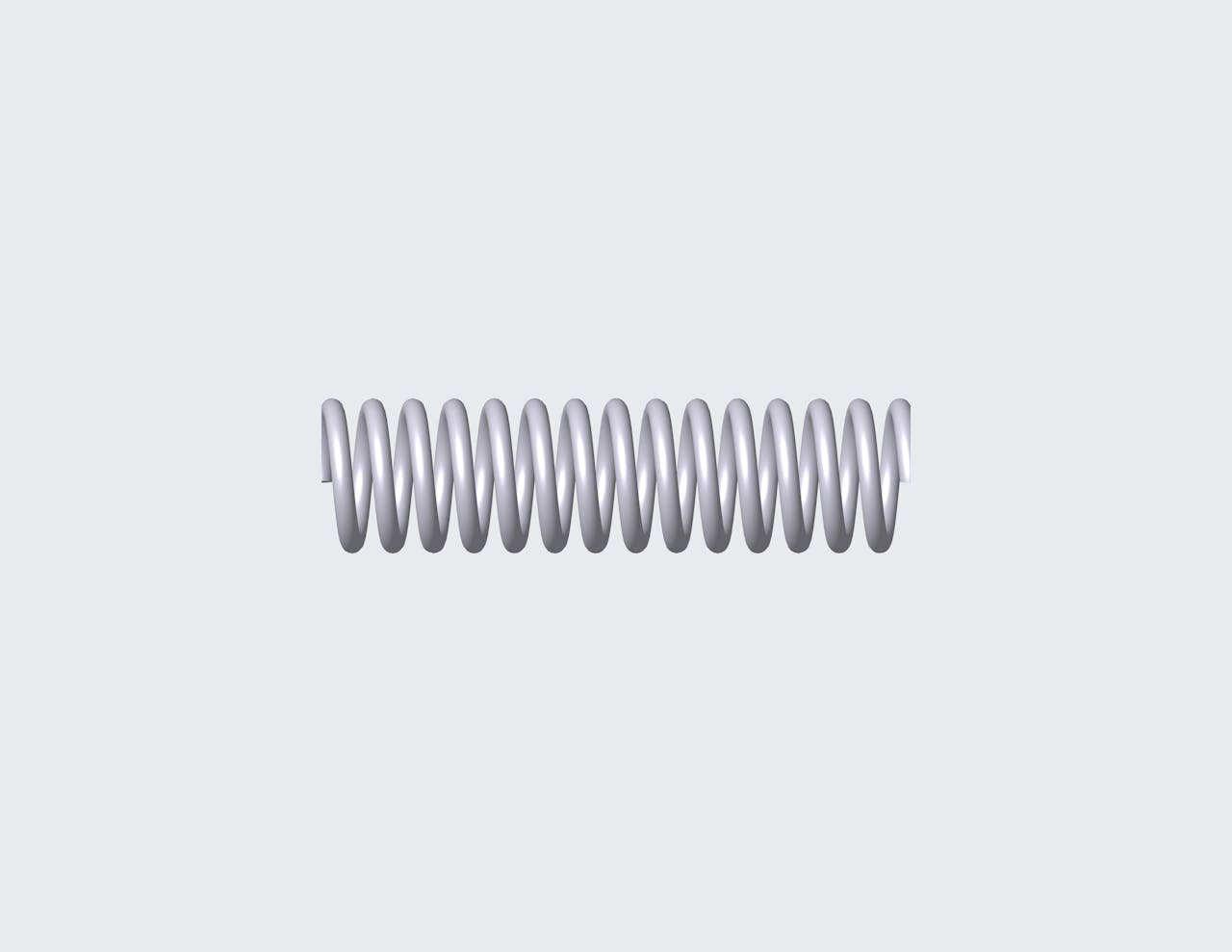

50346SCS - 1.732" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 14 coils and closed & ground ends. This spring features an O.D. of 0.457", and an I.D. of 0.332".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50346S
Ends Closed & Ground
Finish Passivated
Free Length 1.732 in
Inside Diameter 0.332 in
Material 316 Stainless Steel
Outside Diameter 0.457 in
Rate 26.877 lbs/in
SKU 50346SCS
Solid Length 0.882 in
Suggested Max Deflection 0.561 in
Suggested Max Load 15.09 lbf
Total Coils 14
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50346S
Ends Closed & Ground
Finish Passivated
Free Length 43.99 mm
Inside Diameter 8.43 mm
Material 316 Stainless Steel
Outside Diameter 11.61 mm
Rate 4.71 N/mm
SKU 50346SCS
Solid Length 22.4 mm
Suggested Max Deflection 14.25 mm
Suggested Max Load 67.12 N
Total Coils 14
Wire Diameter 1.59 mm
The 50346SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0625" diameter 316 stainless steel, the 50346S spring design exhibits reliable strength across its 14 active coils, withstanding repeated compression cycles with a maximum load of 15.09 lbf without succumbing to fatigue.

We manufacture the 50346S design to provide a compression spring that is 1.732" long at rest and provides a consistent rate of 26.877 lbs/in along its recommended maximum of 0.561" deflection. For best results, your application should fully accommodate the inner (0.332") and outer (0.457") diameters of this spring and be designed for its closed & ground end configuration.
