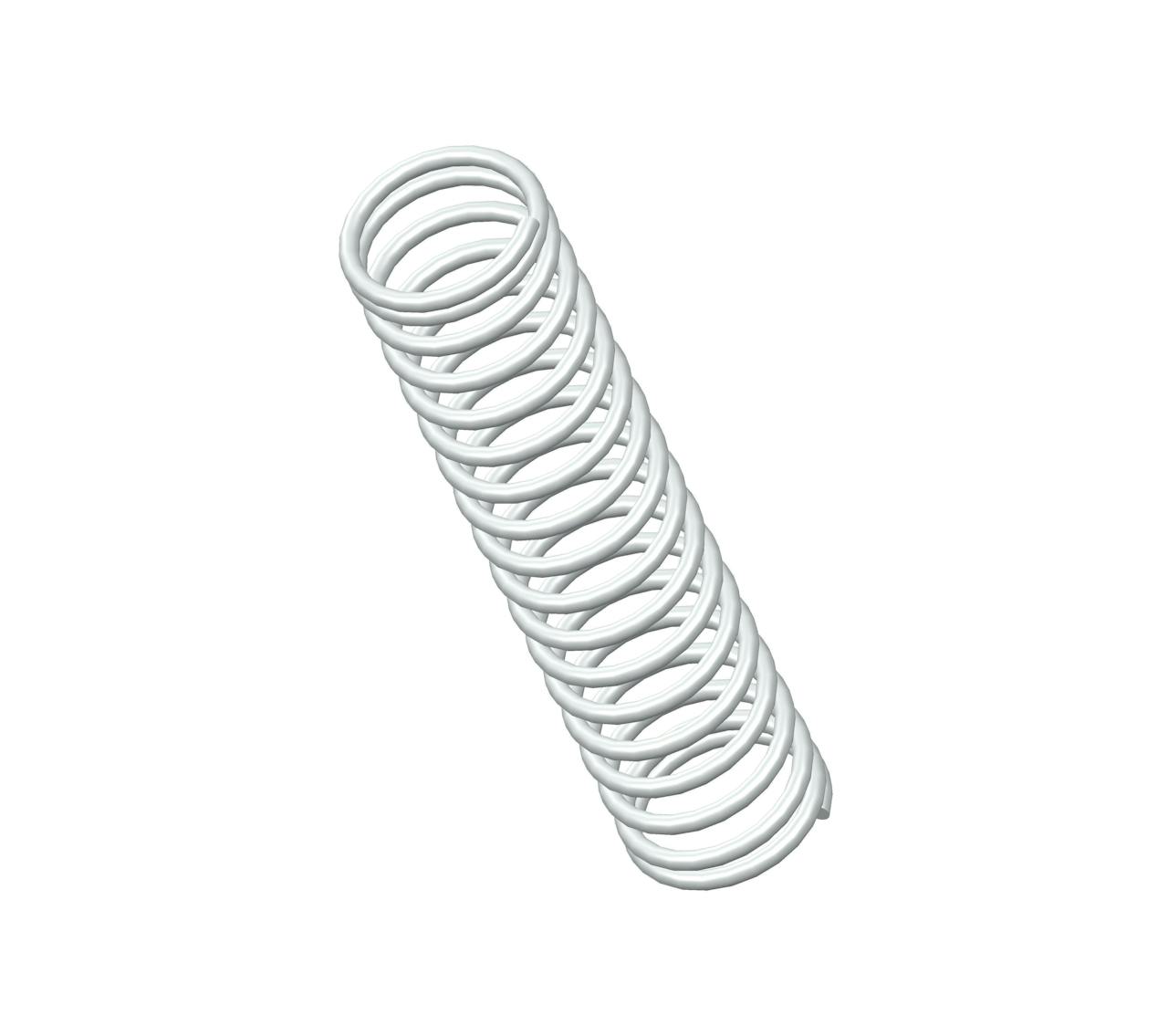

KK-12CS - 0.84" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 18 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.152".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-12 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.84 in |
| Inside Diameter | 0.152 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 1.7 lbs/in |
| SKU | KK-12CS |
| Solid Length | 0.34 in |
| Suggested Max Deflection | 0.5 in |
| Suggested Max Load | 0.85 lbf |
| Total Coils | 18 |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | KK-12 |
| Ends | Closed |
| Finish | None |
| Free Length | 21.34 mm |
| Inside Diameter | 3.86 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 0.3 N/mm |
| SKU | KK-12CS |
| Solid Length | 8.64 mm |
| Suggested Max Deflection | 12.7 mm |
| Suggested Max Load | 3.78 N |
| Total Coils | 18 |
| Wire Diameter | 0.46 mm |
The compression spring KK-12CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the KK-12 compression spring design exhibits exceptional tensile strength and resilience.
The KK-12 design is manufactured with a free length of 0.84", with an outer diameter of 0.188", an inner diameter of 0.152", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.7 lbs/in.
The KK-12CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring KK-12 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The KK-12 design is manufactured with a free length of 0.84", with an outer diameter of 0.188", an inner diameter of 0.152", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.7 lbs/in.
The KK-12CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring KK-12 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
