Century Spring

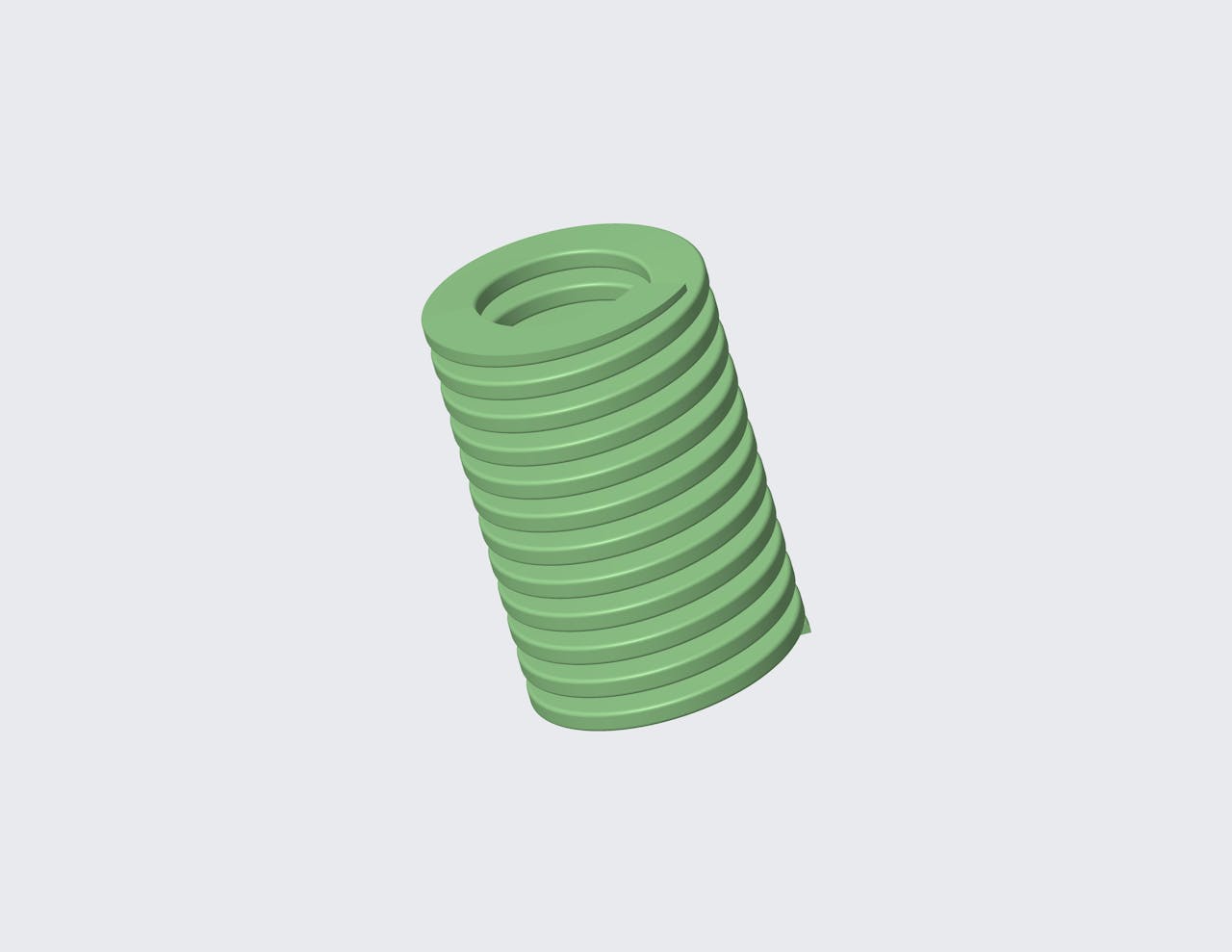

D-303918CS - 114 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 114 Millimeter long and has a 118.1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.122 in
Deflection 2 1.3465 in
Deflection 3 1.7953 in
Display Name D-303918
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 4.4882 in
Hole Size 2.4803 in
Load 1 763.2644 lbf
Load 2 915.9173 lbf
Load 3 1221.223 lbf
Load At Max Deflection 1494.6043 lbf
Material Chrome Silicon
Max Deflection 2.2165 in
Measurement Units Metric
Rate 674.4717 lbs/in
Rod Size 1.4961 in
SKU D-303918CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 28.5 mm
Deflection 2 34.2 mm
Deflection 3 45.6 mm
Display Name D-303918
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 114 mm
Hole Size 63 mm
Load 1 3395 N
Load 2 4074 N
Load 3 5432 N
Load At Max Deflection 6648 N
Material Chrome Silicon
Max Deflection 56.3 mm
Measurement Units Metric
Rate 118.1 N/mm
Rod Size 38 mm
SKU D-303918CS
