Century Spring

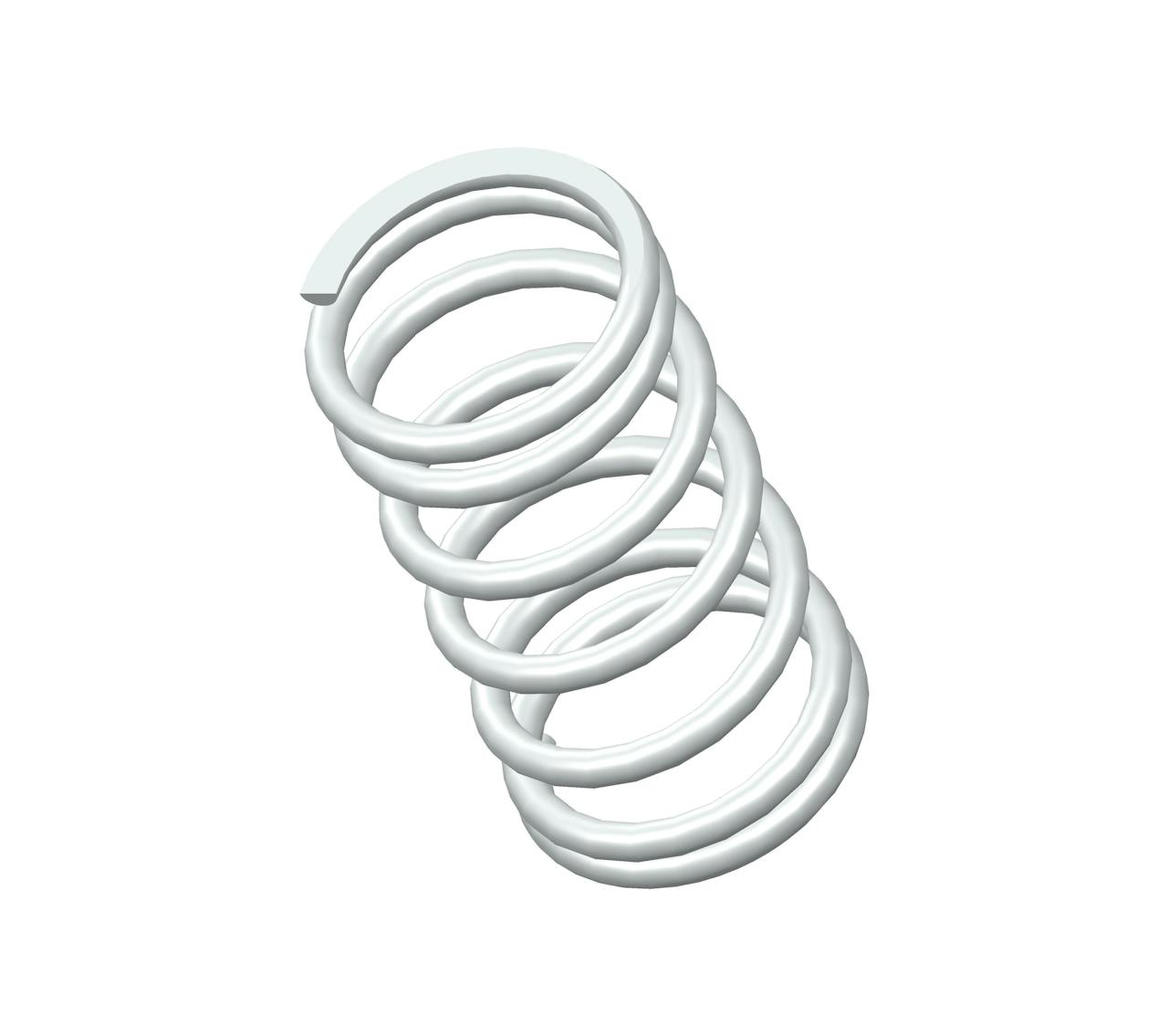

K-46CS - 1.13" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7.1 coils and closed & ground ends. This spring features an O.D. of 0.593", and an I.D. of 0.469".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name K-46
Ends Closed & Ground
Finish None
Free Length 1.13 in
Inside Diameter 0.469 in
Material 302/304 Stainless Steel
Outside Diameter 0.593 in
Part Type Standard
Rate 25 lbs/in
SKU K-46CS
Solid Length 0.444 in
Suggested Max Deflection 0.55 in
Suggested Max Load 13.7 lbf
Total Coils 7.1
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name K-46
Ends Closed & Ground
Finish None
Free Length 28.7 mm
Inside Diameter 11.91 mm
Material 302/304 Stainless Steel
Outside Diameter 15.06 mm
Part Type Standard
Rate 4.38 N/mm
SKU K-46CS
Solid Length 11.28 mm
Suggested Max Deflection 13.97 mm
Suggested Max Load 60.94 N
Total Coils 7.1
Wire Diameter 1.59 mm
The compression spring K-46CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the K-46 compression spring design exhibits exceptional tensile strength and resilience.

The K-46 design is manufactured with a free length of 1.13", with an outer diameter of 0.593", an inner diameter of 0.469", and a total of 7.1 coils, expertly designed to deliver consistent compression characteristics including a rate of 25 lbs/in.

The K-46CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring K-46 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
