Century Spring

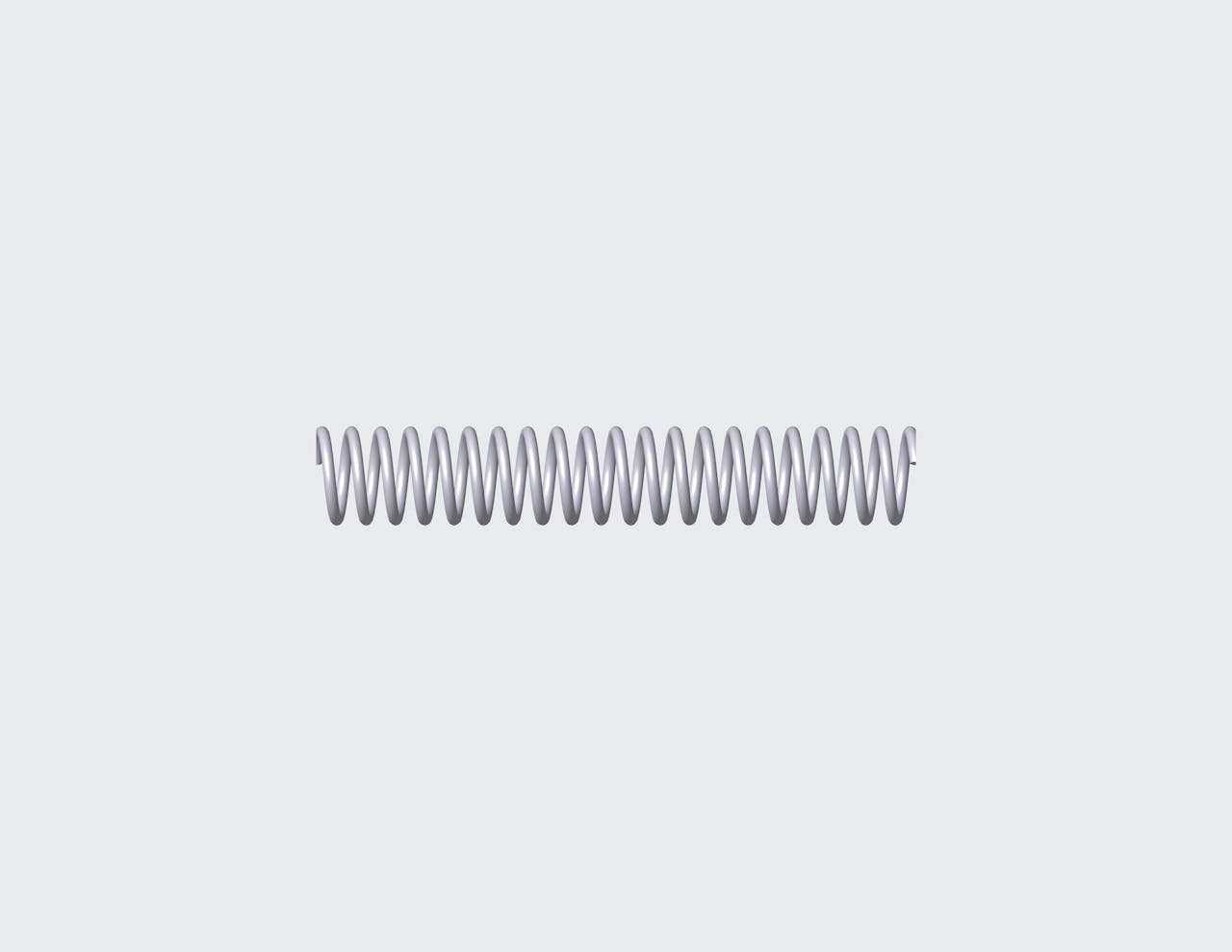

50074SCS - 0.984" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 20 coils and closed & ground ends. This spring features an O.D. of 0.163", and an I.D. of 0.124".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50074S
Ends Closed & Ground
Finish Passivated
Free Length 0.984 in
Inside Diameter 0.124 in
Material 316 Stainless Steel
Outside Diameter 0.163 in
Rate 3.514 lbs/in
SKU 50074SCS
Solid Length 0.394 in
Suggested Max Deflection 0.405 in
Suggested Max Load 1.425 lbf
Total Coils 20
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50074S
Ends Closed & Ground
Finish Passivated
Free Length 24.99 mm
Inside Diameter 3.15 mm
Material 316 Stainless Steel
Outside Diameter 4.14 mm
Rate 0.62 N/mm
SKU 50074SCS
Solid Length 10.01 mm
Suggested Max Deflection 10.29 mm
Suggested Max Load 6.34 N
Total Coils 20
Wire Diameter 0.51 mm
The 50074S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50074SCS compression spring is designed with a free length of 0.787" total of 17.5 coils, and a rate of 4.362 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50074S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
