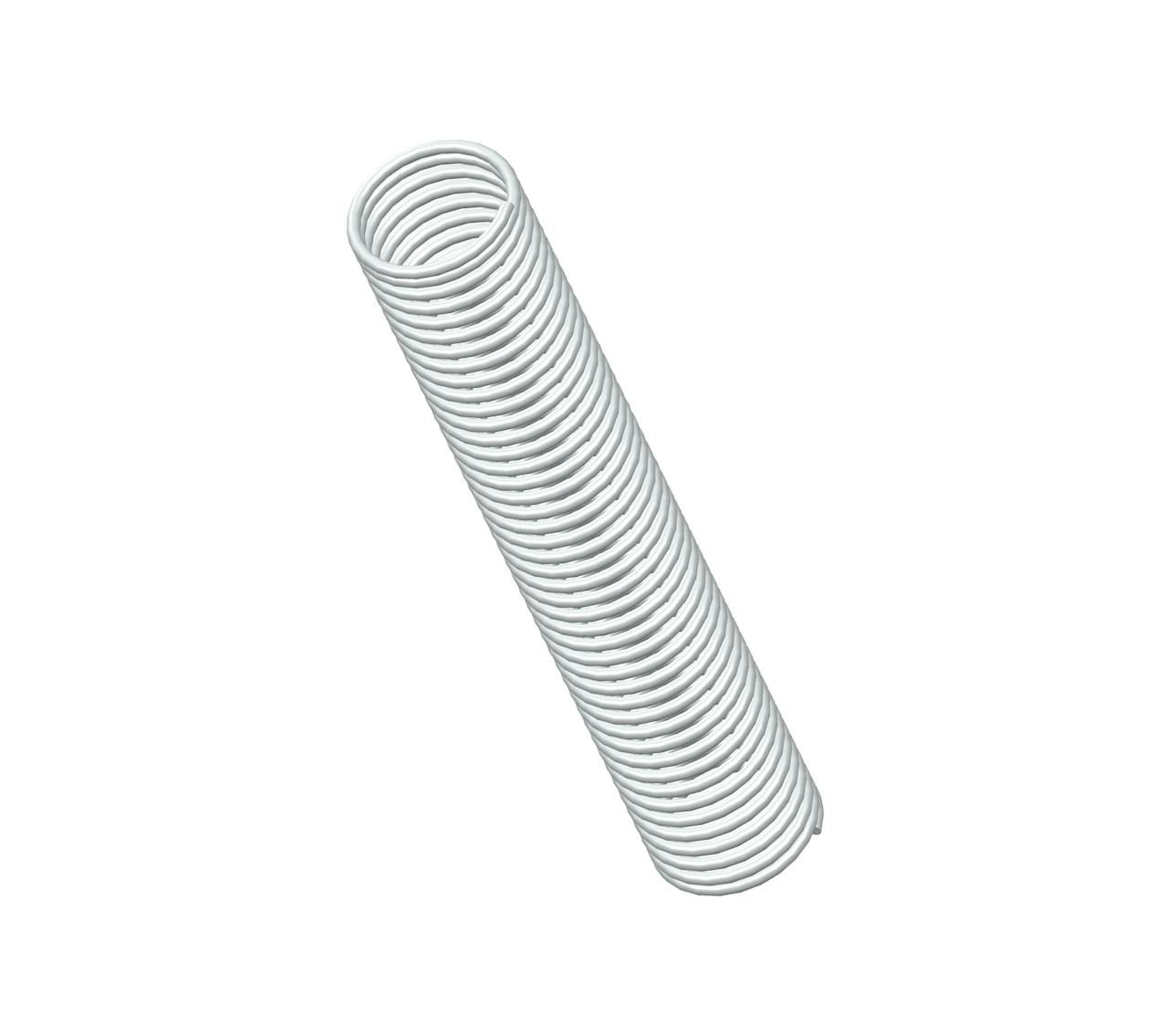

II-45CS - 0.88" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 44 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.132".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | II-45 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.88 in |
| Inside Diameter | 0.132 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.156 in |
| Part Type | Standard |
| Rate | 0.21 lbs/in |
| SKU | II-45CS |
| Solid Length | 0.54 in |
| Suggested Max Deflection | 0.34 in |
| Suggested Max Load | 0.07 lbf |
| Total Coils | 44 |
| Wire Diameter | 0.012 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | II-45 |
| Ends | Closed |
| Finish | None |
| Free Length | 22.35 mm |
| Inside Diameter | 3.35 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.96 mm |
| Part Type | Standard |
| Rate | 0.04 N/mm |
| SKU | II-45CS |
| Solid Length | 13.72 mm |
| Suggested Max Deflection | 8.64 mm |
| Suggested Max Load | 0.31 N |
| Total Coils | 44 |
| Wire Diameter | 0.3 mm |
The compression spring II-45CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the II-45 compression spring design exhibits exceptional tensile strength and resilience.
The II-45 design is manufactured with a free length of 0.88", with an outer diameter of 0.156", an inner diameter of 0.132", and a total of 44 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.21 lbs/in.
The II-45CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring II-45 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The II-45 design is manufactured with a free length of 0.88", with an outer diameter of 0.156", an inner diameter of 0.132", and a total of 44 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.21 lbs/in.
The II-45CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring II-45 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
