B11-45CS - 1.56" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

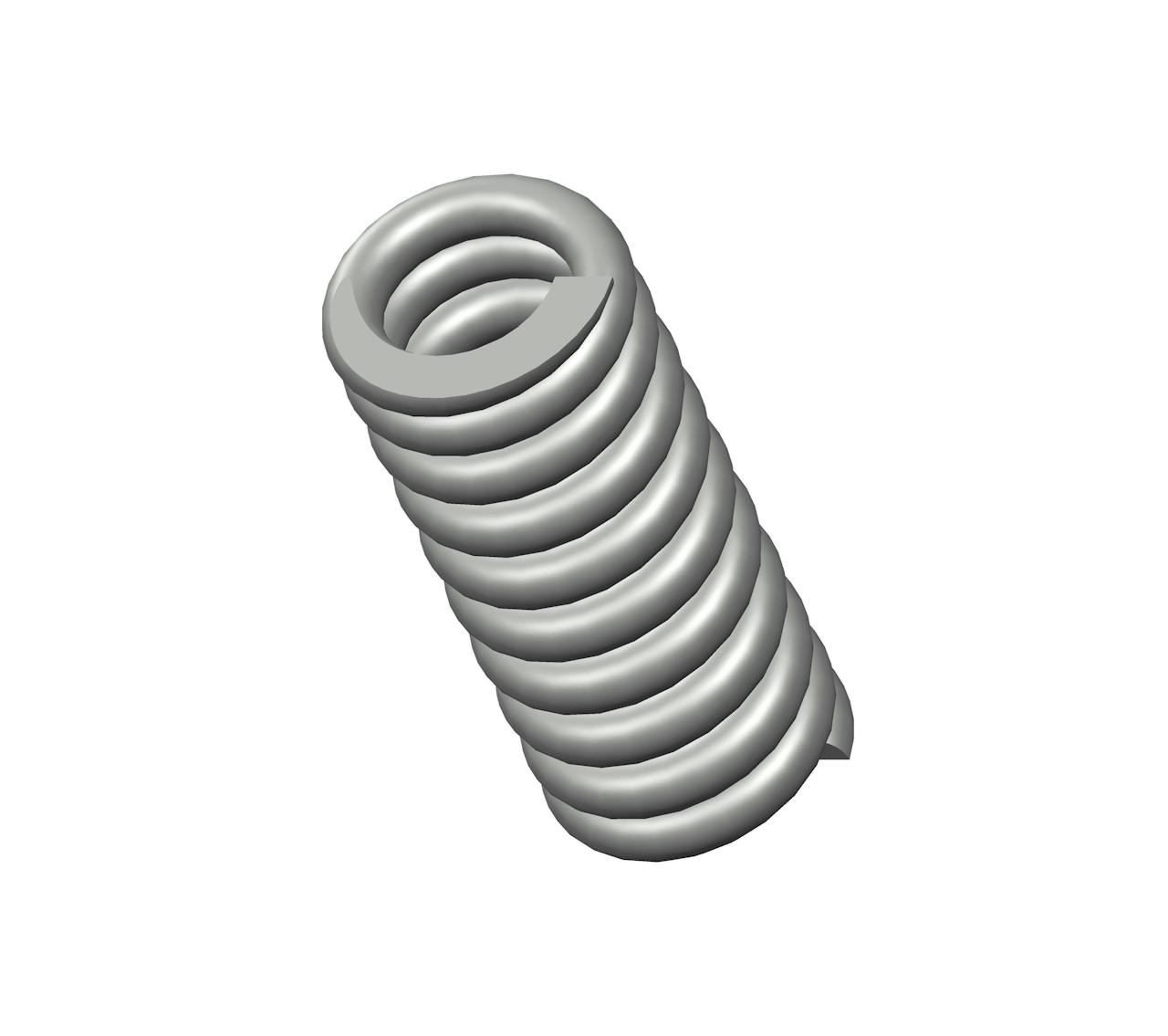

Compression spring manufactured from spring steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.64", and an I.D. of 0.39".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B11-45
Ends Closed & Ground
Finish Zinc
Free Length 1.56 in
Inside Diameter 0.39 in
Material Spring Steel
Outside Diameter 0.64 in
Part Type Standard
Rate 321 lbs/in
SKU B11-45CS
Solid Length 1.25 in
Suggested Max Deflection 0.28 in
Suggested Max Load 90 lbf
Total Coils 10
Wire Diameter 0.125 in
The compression spring B11-45CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B11-45 compression spring design exhibits exceptional tensile strength and resilience.

The B11-45 design is manufactured with a free length of 1.56", with an outer diameter of 0.64", an inner diameter of 0.39", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 321 lbs/in.

The B11-45CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring B11-45 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
