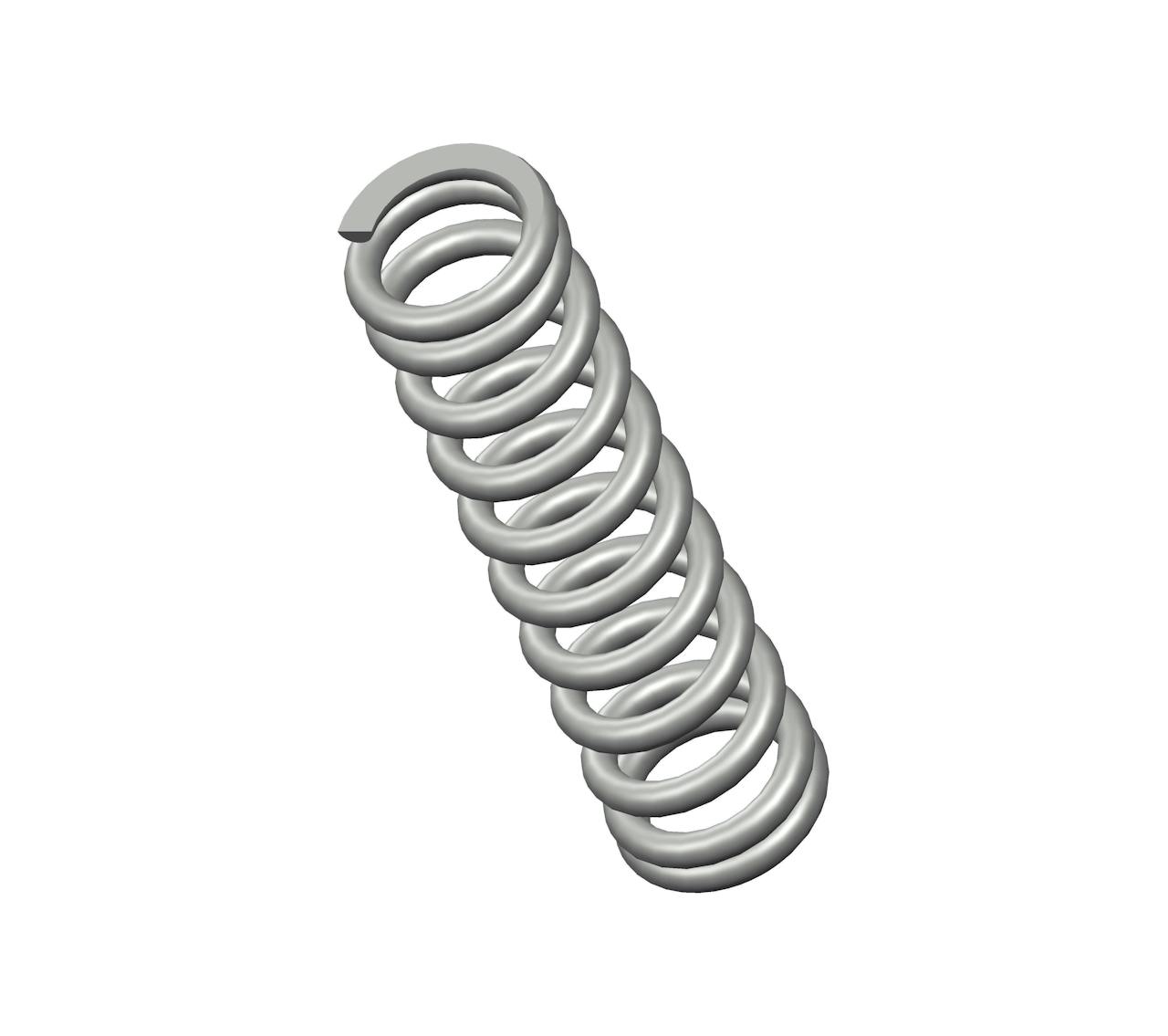

I-66CS - 1" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 11 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.17".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | I-66 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 1 in |
| Inside Diameter | 0.17 in |
| Material | Spring Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 44 lbs/in |
| SKU | I-66CS |
| Solid Length | 0.44 in |
| Suggested Max Deflection | 0.21 in |
| Suggested Max Load | 9.5 lbf |
| Total Coils | 11 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | I-66 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 25.4 mm |
| Inside Diameter | 4.32 mm |
| Material | Spring Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 7.7 N/mm |
| SKU | I-66CS |
| Solid Length | 11.18 mm |
| Suggested Max Deflection | 5.33 mm |
| Suggested Max Load | 42.26 N |
| Total Coils | 11 |
| Wire Diameter | 1.02 mm |
The compression spring I-66CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the I-66 compression spring design exhibits exceptional tensile strength and resilience.
The I-66 design is manufactured with a free length of 1", with an outer diameter of 0.25", an inner diameter of 0.17", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 44 lbs/in.
The I-66CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring I-66 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
