HH-93CS - 1.75" Spring Steel Compression Spring
Inventory:
|
|
Estimated Lead Time | |
---|---|

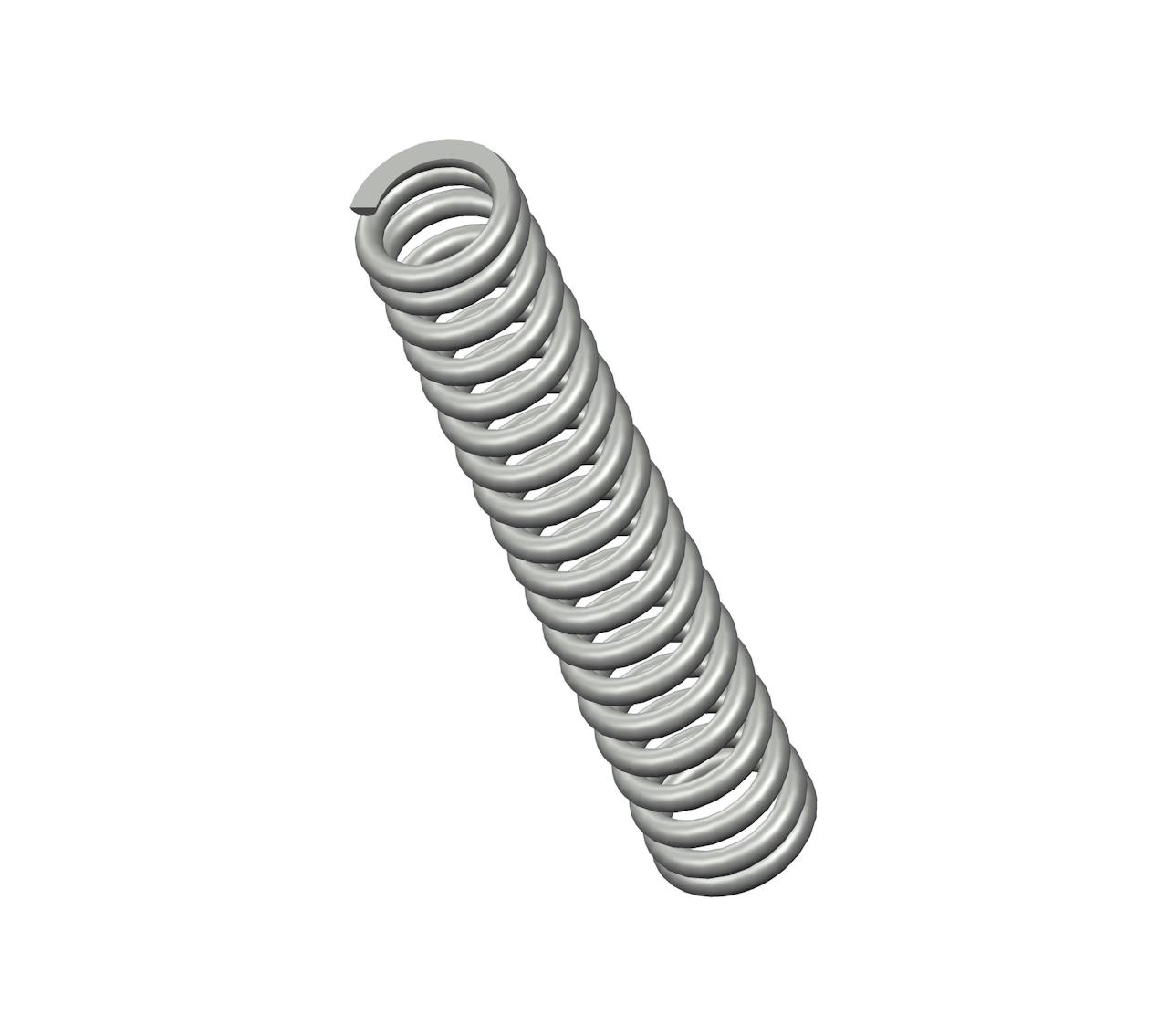

Compression spring manufactured from spring steel with 19 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.212".


Label | Value |
---|---|
Brand | Century Spring |
Display Name | HH-93 |
Ends | Closed & Ground |
Finish | None |
Free Length | 1.75 in |
Inside Diameter | 0.212 in |
Material | Spring Steel |
Outside Diameter | 0.312 in |
Part Type | Standard |
Rate | 29 lbs/in |
SKU | HH-93CS |
Solid Length | 0.95 in |
Suggested Max Deflection | 0.47 in |
Suggested Max Load | 14 lbf |
Total Coils | 19 |
Wire Diameter | 0.05 in |
Label | Value |
---|---|
Brand | Century Spring |
Display Name | HH-93 |
Ends | Closed & Ground |
Finish | None |
Free Length | 44.45 mm |
Inside Diameter | 5.38 mm |
Material | Spring Steel |
Outside Diameter | 7.92 mm |
Part Type | Standard |
Rate | 5.08 N/mm |
SKU | HH-93CS |
Solid Length | 24.13 mm |
Suggested Max Deflection | 11.94 mm |
Suggested Max Load | 62.27 N |
Total Coils | 19 |
Wire Diameter | 1.27 mm |
The compression spring HH-93CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the HH-93 compression spring design exhibits exceptional tensile strength and resilience.
The HH-93 design is manufactured with a free length of 1.75", with an outer diameter of 0.312", an inner diameter of 0.212", and a total of 19 coils, expertly designed to deliver consistent compression characteristics including a rate of 29 lbs/in.
The HH-93CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring HH-93 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The HH-93 design is manufactured with a free length of 1.75", with an outer diameter of 0.312", an inner diameter of 0.212", and a total of 19 coils, expertly designed to deliver consistent compression characteristics including a rate of 29 lbs/in.
The HH-93CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring HH-93 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
