Century Spring

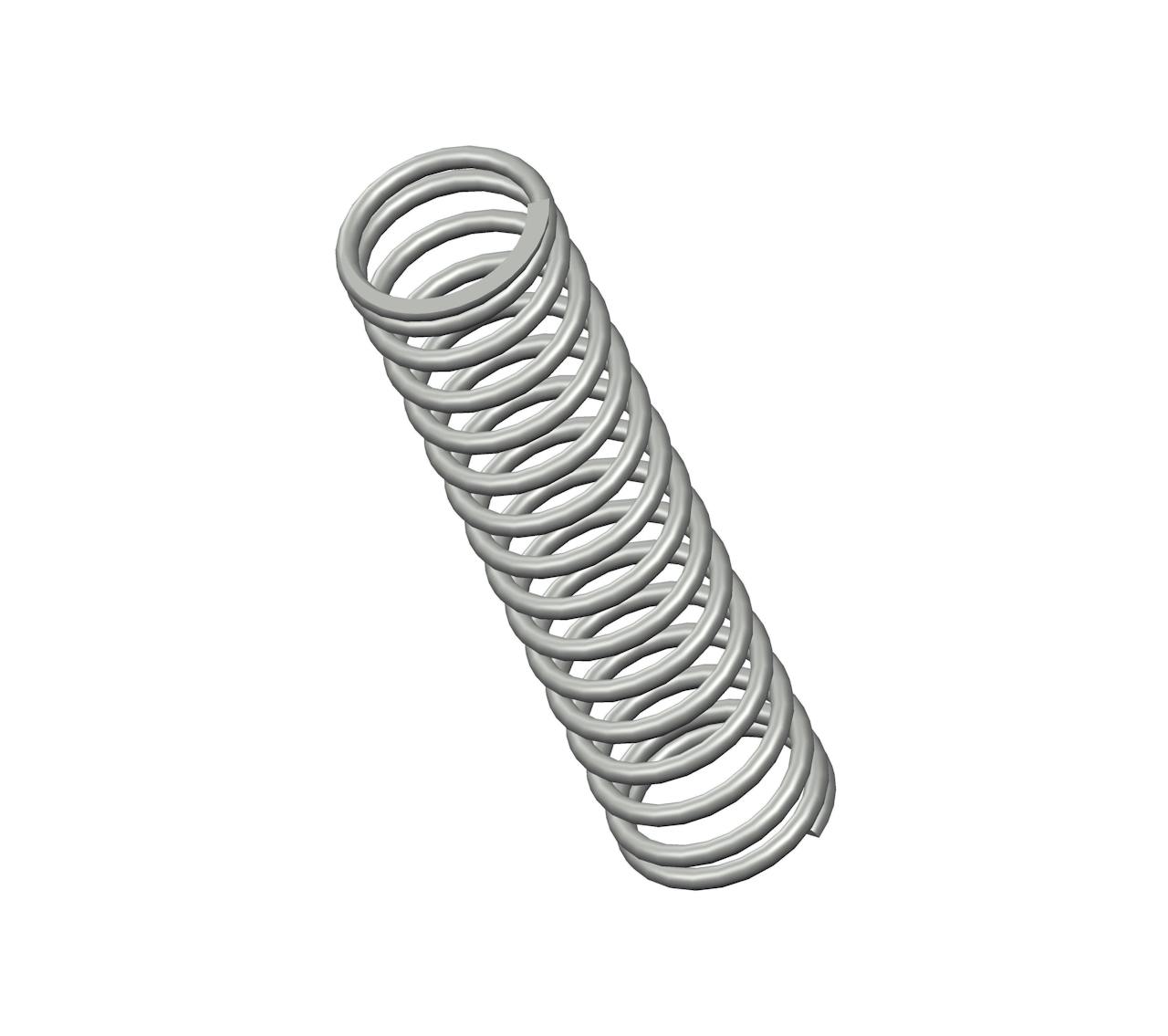

73301CS - 14" Oil Tempered Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from oil tempered with 16.1 coils and closed & ground ends. This spring features an O.D. of 3.406", and an I.D. of 2.72".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73301
Ends Closed & Ground
Finish None
Free Length 14 in
Inside Diameter 2.72 in
Material Oil Tempered
Outside Diameter 3.406 in
Part Type Standard
Rate 49 lbs/in
SKU 73301CS
Solid Length 5.53 in
Suggested Max Deflection 6.9 in
Suggested Max Load 338 lbf
Total Coils 16.1
Wire Diameter 0.343 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73301
Ends Closed & Ground
Finish None
Free Length 355.6 mm
Inside Diameter 69.09 mm
Material Oil Tempered
Outside Diameter 86.51 mm
Part Type Standard
Rate 8.58 N/mm
SKU 73301CS
Solid Length 140.46 mm
Suggested Max Deflection 175.26 mm
Suggested Max Load 1503.42 N
Total Coils 16.1
Wire Diameter 8.71 mm
The 73301CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.343" diameter oil tempered, the 73301 spring design exhibits reliable strength across its 16.1 active coils, withstanding repeated compression cycles with a maximum load of 338 lbf without succumbing to fatigue.

We manufacture the 73301 design to provide a compression spring that is 14" long at rest and provides a consistent rate of 49 lbs/in along its recommended maximum of 6.9" deflection. For best results, your application should fully accommodate the inner (2.72") and outer (3.406") diameters of this spring and be designed for its closed & ground end configuration.
