GG-4CS - 0.63" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

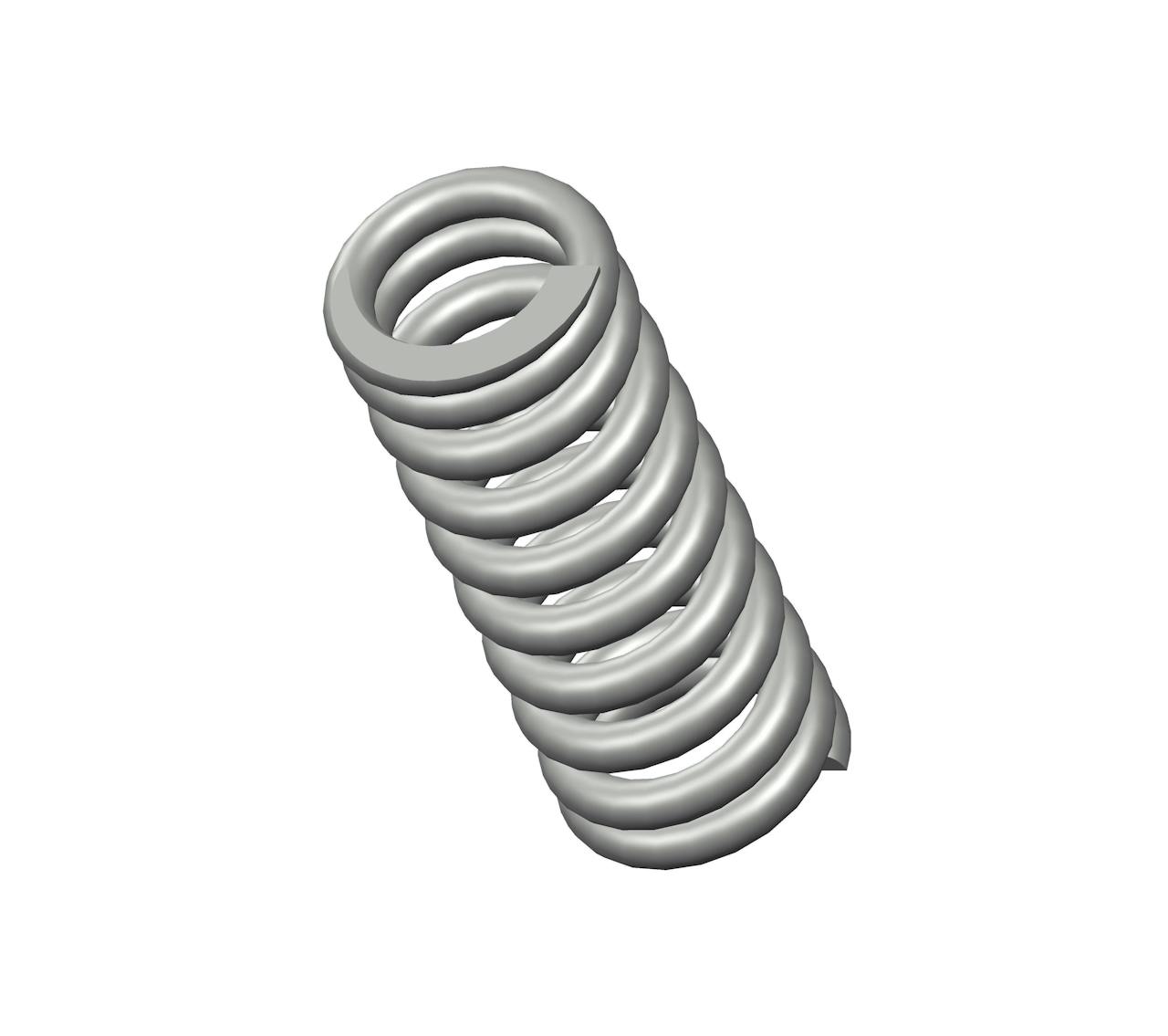

Compression spring manufactured from spring steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.154".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name GG-4
Ends Closed & Ground
Finish None
Free Length 0.63 in
Inside Diameter 0.154 in
Material Spring Steel
Outside Diameter 0.234 in
Part Type Standard
Rate 63 lbs/in
SKU GG-4CS
Solid Length 0.4 in
Suggested Max Deflection 0.16 in
Suggested Max Load 10 lbf
Total Coils 10
Wire Diameter 0.04 in
The GG-4CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.04" diameter spring steel, the GG-4 spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 10 lbf without succumbing to fatigue.

We manufacture the GG-4 design to provide a compression spring that is 0.63" long at rest and provides a consistent rate of 63 lbs/in along its recommended maximum of 0.16" deflection. For best results, your application should fully accommodate the inner (0.154") and outer (0.234") diameters of this spring and be designed for its closed & ground end configuration.
