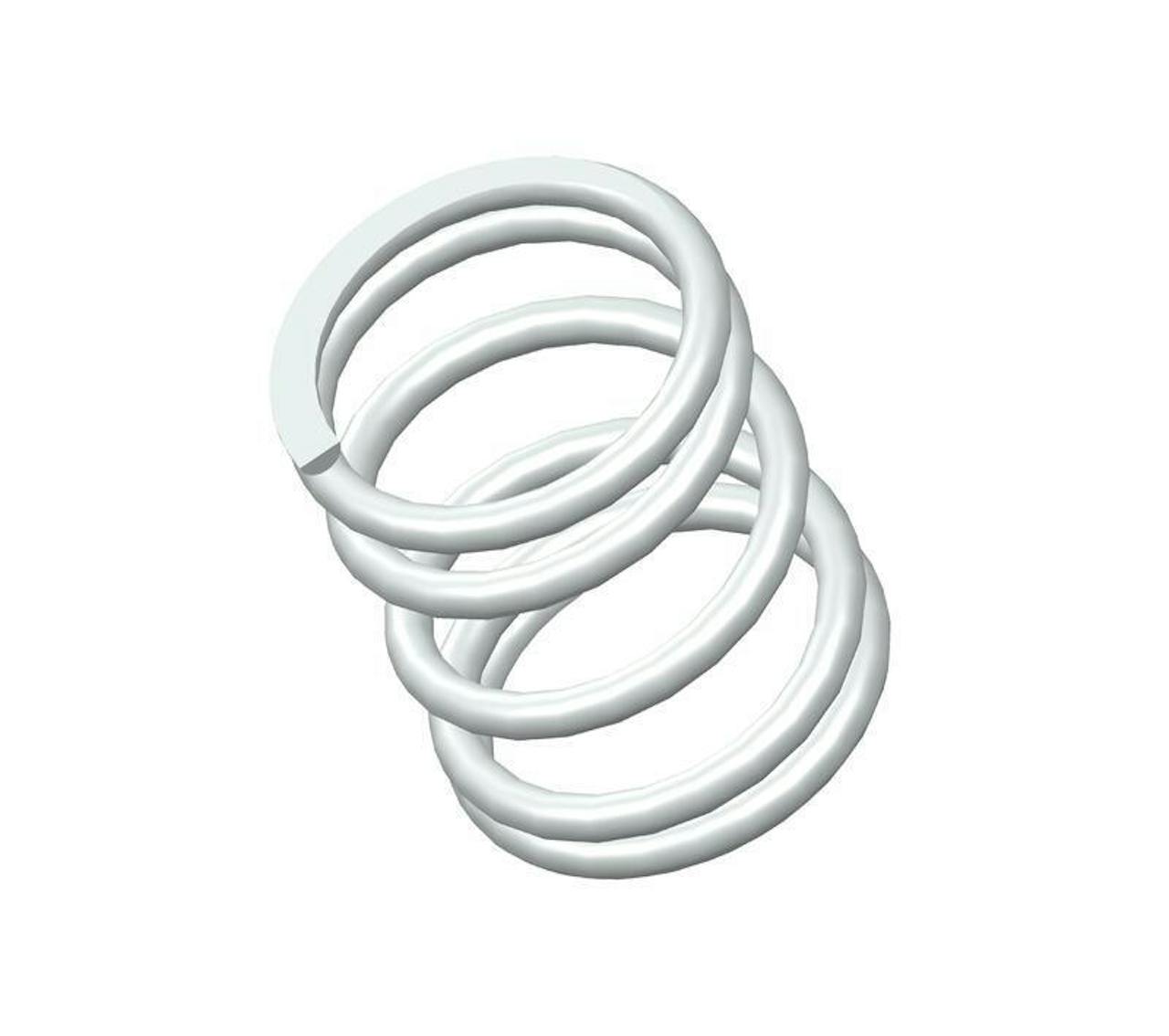

72682SCS - 1.5" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 5.25 coils and closed & ground ends. This spring features an O.D. of 1.225", and an I.D. of 0.975".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72682S
Ends Closed & Ground
Finish None
Free Length 1.5 in
Inside Diameter 0.975 in
Material 302/304 Stainless Steel
Outside Diameter 1.225 in
Part Type Standard
Rate 69 lbs/in
SKU 72682SCS
Solid Length 0.66 in
Suggested Max Deflection 0.67 in
Suggested Max Load 46 lbf
Total Coils 5.25
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72682S
Ends Closed & Ground
Finish None
Free Length 38.1 mm
Inside Diameter 24.77 mm
Material 302/304 Stainless Steel
Outside Diameter 31.12 mm
Part Type Standard
Rate 12.08 N/mm
SKU 72682SCS
Solid Length 16.76 mm
Suggested Max Deflection 17.02 mm
Suggested Max Load 204.61 N
Total Coils 5.25
Wire Diameter 3.18 mm
The compression spring 72682SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72682S compression spring design exhibits exceptional tensile strength and resilience.

The 72682S design is manufactured with a free length of 1.5", with an outer diameter of 1.225", an inner diameter of 0.975", and a total of 5.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 69 lbs/in.

The 72682SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72682S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
