GG-40CS - 0.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

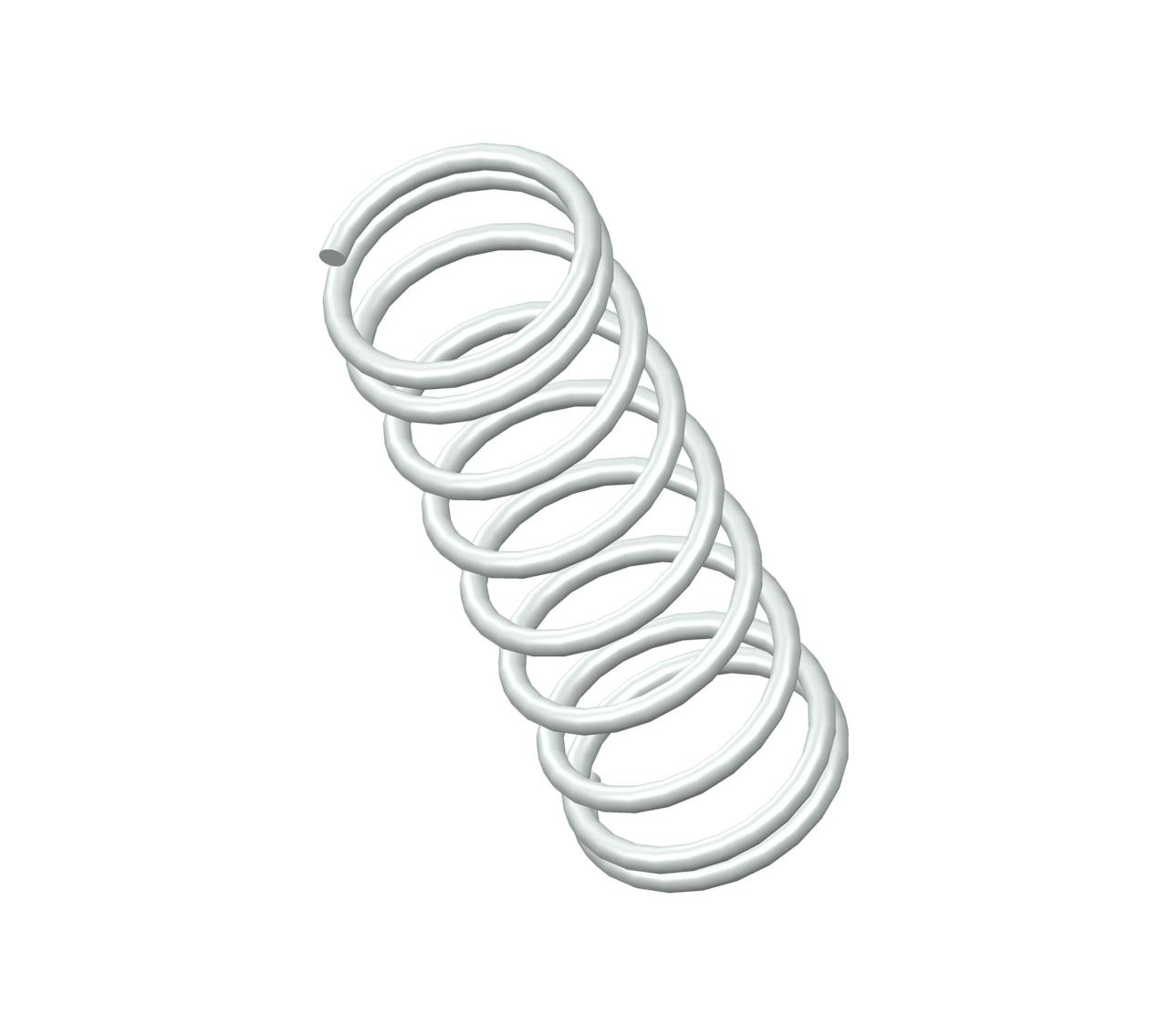

Compression spring manufactured from 302/304 stainless steel with 9 coils and closed ends. This spring features an O.D. of 0.172", and an I.D. of 0.14".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | GG-40 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.14 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.172 in |
| Part Type | Standard |
| Rate | 3.1 lbs/in |
| SKU | GG-40CS |
| Solid Length | 0.16 in |
| Suggested Max Deflection | 0.31 in |
| Suggested Max Load | 0.94 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.016 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | GG-40 |
| Ends | Closed |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 3.56 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.37 mm |
| Part Type | Standard |
| Rate | 0.54 N/mm |
| SKU | GG-40CS |
| Solid Length | 4.06 mm |
| Suggested Max Deflection | 7.87 mm |
| Suggested Max Load | 4.18 N |
| Total Coils | 9 |
| Wire Diameter | 0.41 mm |
The GG-40 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The GG-40CS compression spring is designed with a free length of 0.47" total of 6.5 coils, and a rate of 51 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The GG-40 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The GG-40CS compression spring is designed with a free length of 0.47" total of 6.5 coils, and a rate of 51 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The GG-40 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
