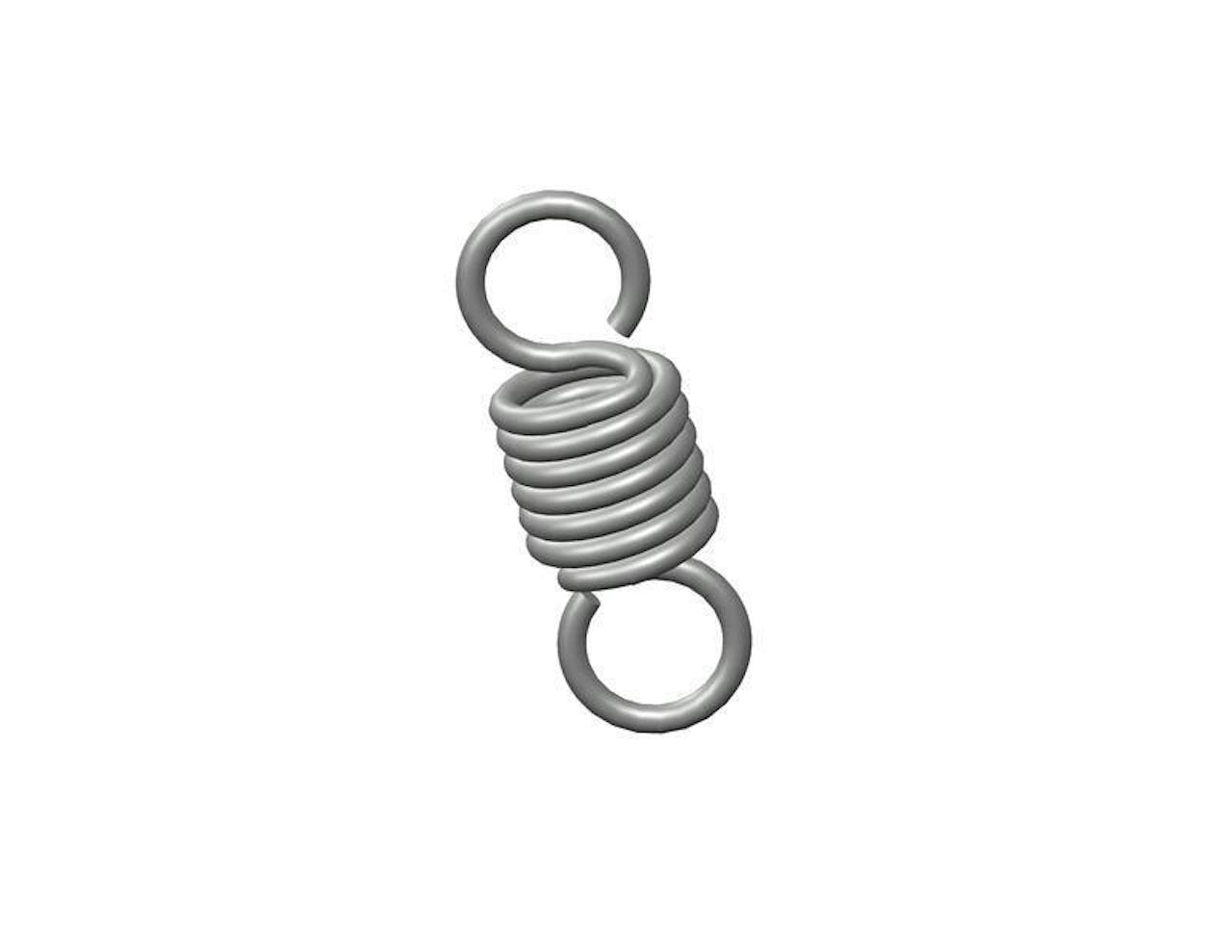

80750CS - 1.38 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.5 Inch and an initial tension of 3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80750
Ends Full Loop
Finish None
Initial Tension 3 lb
Length 1.38 in
Material Music Wire
Outside Diameter 0.5 in
Part Type Standard
Rate 85 lbs/in
SKU 80750CS
Sugg Max Deflection 0.36 in
Sugg Max Load 33 lbf
Wire Diameter 0.075 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80750
Ends Full Loop
Finish None
Initial Tension 1.36 kg
Length 35.05 mm
Material Music Wire
Outside Diameter 12.7 mm
Part Type Standard
Rate 14.88 N/mm
SKU 80750CS
Sugg Max Deflection 9.14 mm
Sugg Max Load 146.78 N
Wire Diameter 1.91 mm
