G-53CS - 0.94" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

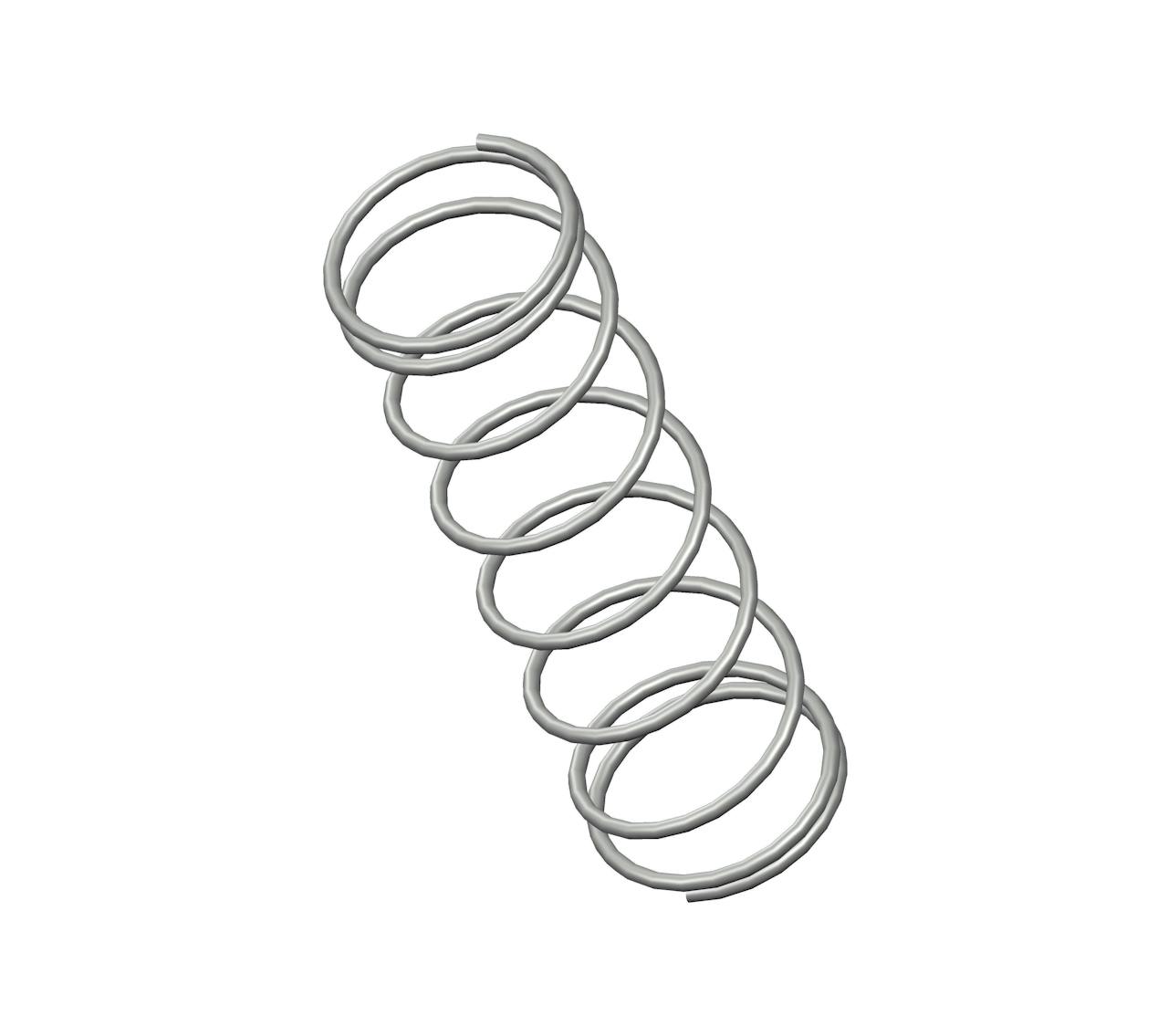

Compression spring manufactured from music wire with 8.5 coils and closed ends. This spring features an O.D. of 0.281", and an I.D. of 0.245".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-53 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.94 in |
| Inside Diameter | 0.245 in |
| Material | Music Wire |
| Outside Diameter | 0.281 in |
| Part Type | Standard |
| Rate | 1.3 lbs/in |
| SKU | G-53CS |
| Solid Length | 0.17 in |
| Suggested Max Deflection | 0.77 in |
| Suggested Max Load | 0.98 lbf |
| Total Coils | 8.5 |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | G-53 |
| Ends | Closed |
| Finish | None |
| Free Length | 23.88 mm |
| Inside Diameter | 6.22 mm |
| Material | Music Wire |
| Outside Diameter | 7.14 mm |
| Part Type | Standard |
| Rate | 0.23 N/mm |
| SKU | G-53CS |
| Solid Length | 4.32 mm |
| Suggested Max Deflection | 19.56 mm |
| Suggested Max Load | 4.36 N |
| Total Coils | 8.5 |
| Wire Diameter | 0.46 mm |
The compression spring G-53CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the G-53 compression spring design exhibits exceptional tensile strength and resilience.
The G-53 design is manufactured with a free length of 0.94", with an outer diameter of 0.281", an inner diameter of 0.245", and a total of 8.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.3 lbs/in.
The G-53CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring G-53 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
