Century Spring

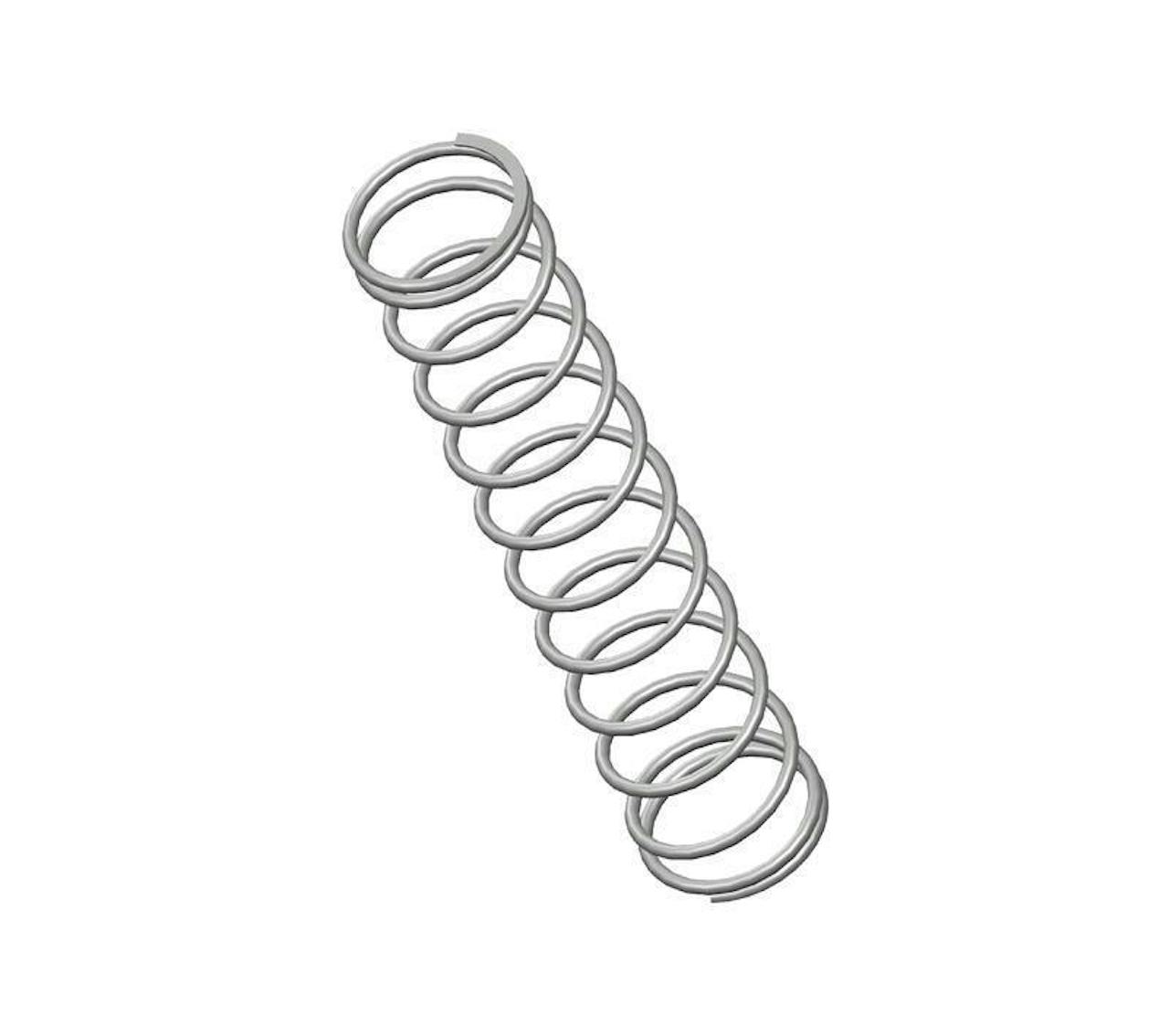

GG-79CS - 2" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 16 coils and closed & ground ends. This spring features an O.D. of 0.687", and an I.D. of 0.547".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name GG-79
Ends Closed & Ground
Finish Zinc
Free Length 2 in
Inside Diameter 0.547 in
Material Spring Steel
Outside Diameter 0.687 in
Part Type Standard
Rate 10 lbs/in
SKU GG-79CS
Solid Length 1.12 in
Suggested Max Deflection 0.88 in
Suggested Max Load 9.2 lbf
Total Coils 16
Wire Diameter 0.07 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name GG-79
Ends Closed & Ground
Finish Zinc
Free Length 50.8 mm
Inside Diameter 13.89 mm
Material Spring Steel
Outside Diameter 17.45 mm
Part Type Standard
Rate 1.75 N/mm
SKU GG-79CS
Solid Length 28.45 mm
Suggested Max Deflection 22.35 mm
Suggested Max Load 40.92 N
Total Coils 16
Wire Diameter 1.78 mm
The compression spring GG-79CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the GG-79 compression spring design exhibits exceptional tensile strength and resilience.

The GG-79 design is manufactured with a free length of 2", with an outer diameter of 0.687", an inner diameter of 0.547", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 10 lbs/in.

The GG-79CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring GG-79 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
