FF-91CS - 1.31" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

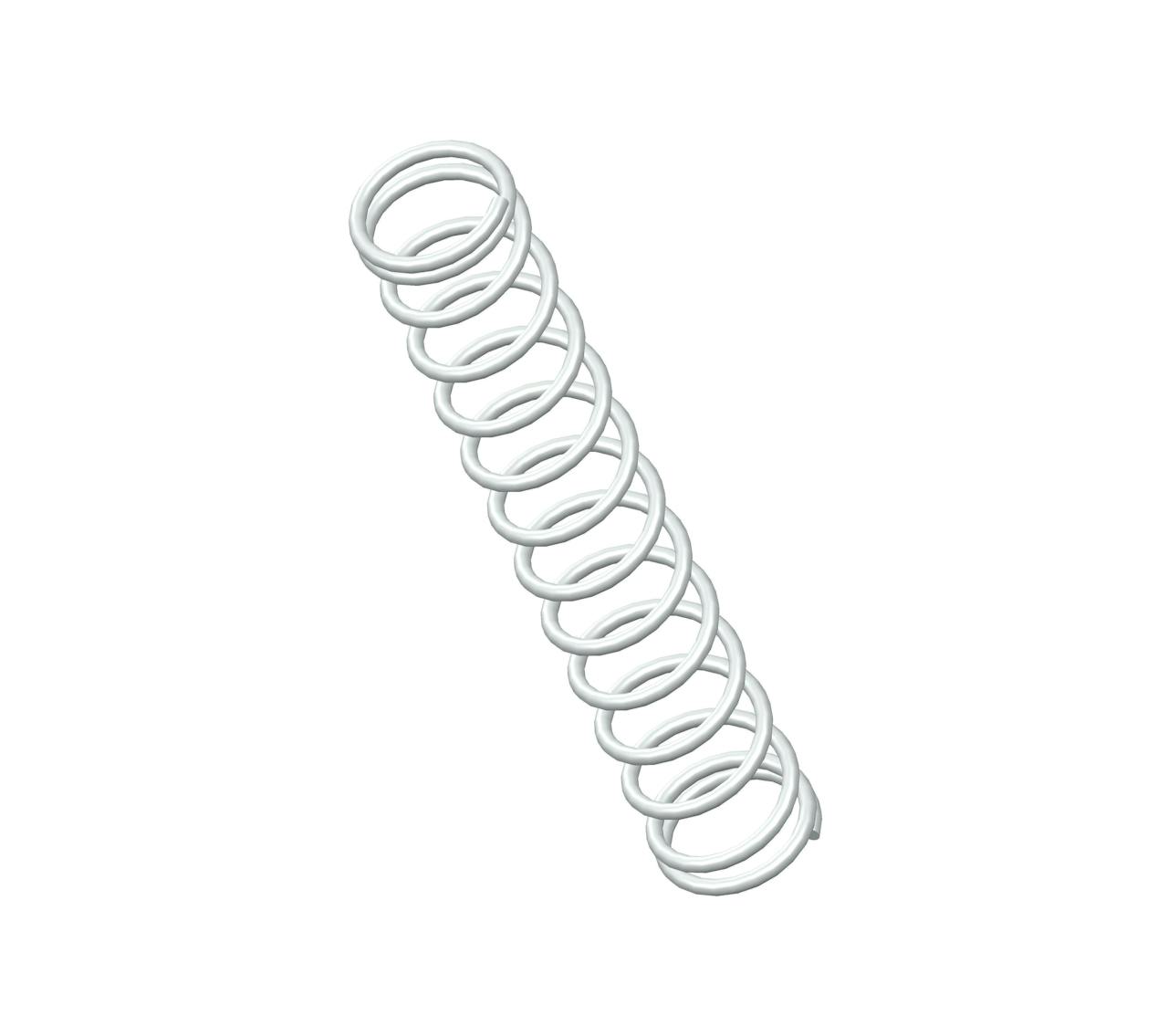

Compression spring manufactured from 302/304 stainless steel with 14 coils and closed ends. This spring features an O.D. of 0.219", and an I.D. of 0.175".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | FF-91 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.31 in |
| Inside Diameter | 0.175 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.219 in |
| Part Type | Standard |
| Rate | 3.2 lbs/in |
| SKU | FF-91CS |
| Solid Length | 0.33 in |
| Suggested Max Deflection | 0.6 in |
| Suggested Max Load | 1.9 lbf |
| Total Coils | 14 |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | FF-91 |
| Ends | Closed |
| Finish | None |
| Free Length | 33.27 mm |
| Inside Diameter | 4.45 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.56 mm |
| Part Type | Standard |
| Rate | 0.56 N/mm |
| SKU | FF-91CS |
| Solid Length | 8.38 mm |
| Suggested Max Deflection | 15.24 mm |
| Suggested Max Load | 8.45 N |
| Total Coils | 14 |
| Wire Diameter | 0.56 mm |
The FF-91 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The FF-91CS compression spring is designed with a free length of 1.13" total of 10 coils, and a rate of 44 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The FF-91 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The FF-91CS compression spring is designed with a free length of 1.13" total of 10 coils, and a rate of 44 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The FF-91 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
