Century Spring

CRV-26146CS - 0.231 Inch ID 0.49 Inch OD Curved Disc Spring

Inventory Status
Estimated Lead Time

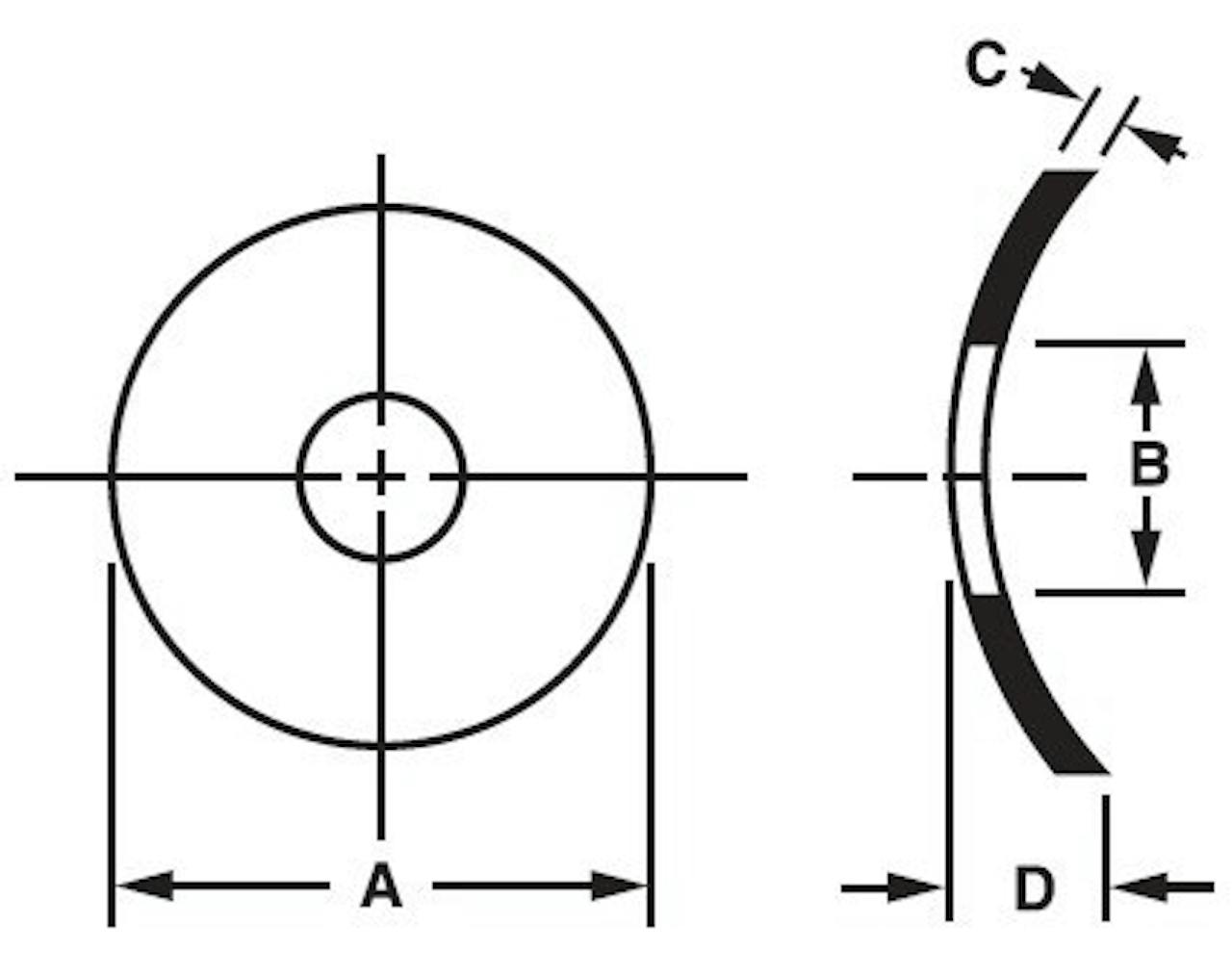

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.231 Inch and an outside diameter of 0.49 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size #12
Brand Century Spring
Calculated Load at Approximate Deflection 15 lb
Deflection 0.018 in
Display Name CRV-26146
Finish None
Inside Diameter 0.231 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.49 in
Outside Height 0.05 in
SKU CRV-26146CS
T 0.015 in
Specs (in metric)
Label Value
Bolt Size #12
Brand Century Spring
Calculated Load at Approximate Deflection 6.8 kg
Deflection 0.46 mm
Display Name CRV-26146
Finish None
Inside Diameter 5.87 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 12.45 mm
Outside Height 1.27 mm
SKU CRV-26146CS
T 0.38 mm
