Century Spring

F-48CS - 1.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

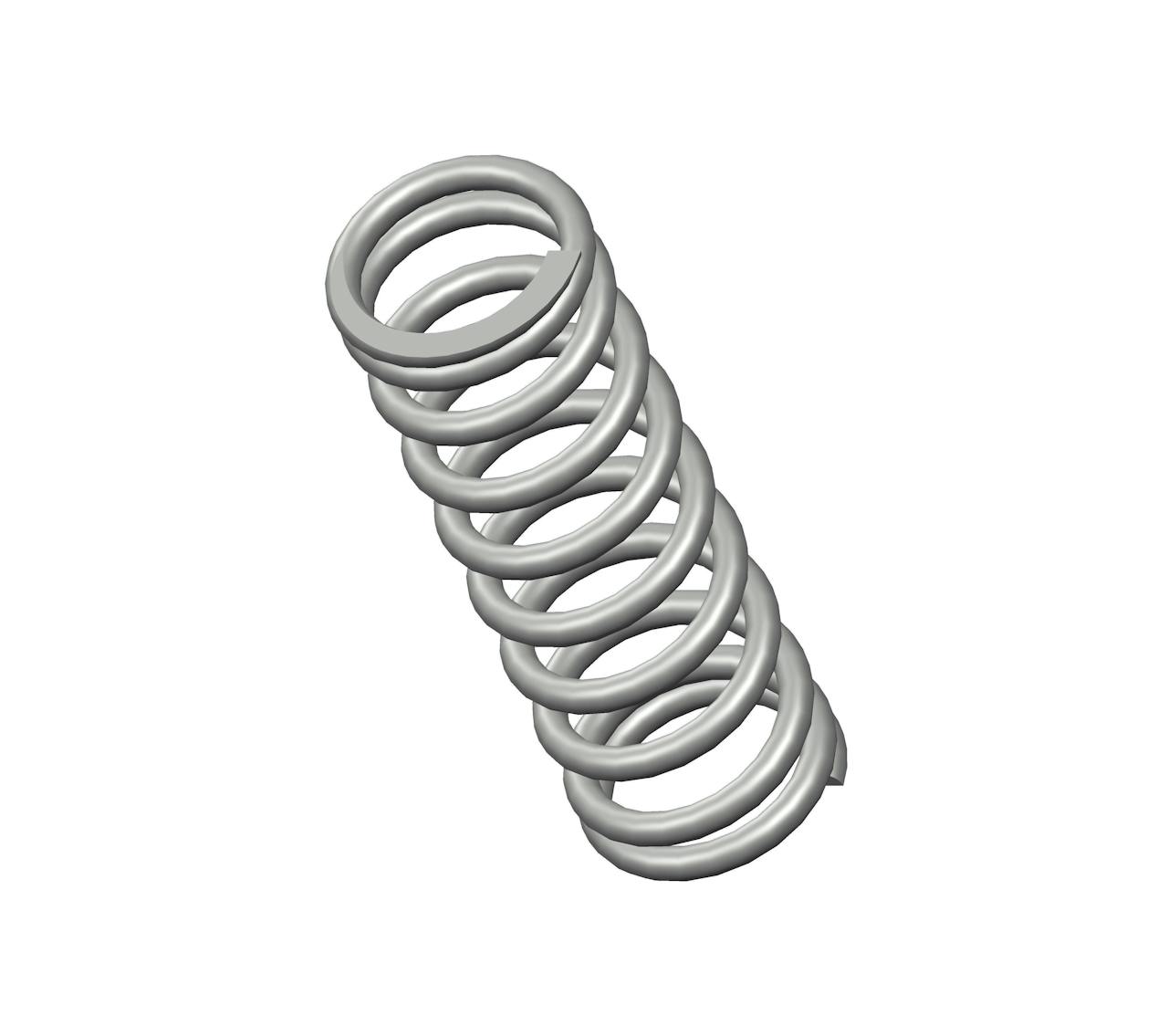

Compression spring manufactured from spring steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.359".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name F-48
Ends Closed & Ground
Finish Zinc
Free Length 1.5 in
Inside Diameter 0.359 in
Material Spring Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 35 lbs/in
SKU F-48CS
Solid Length 0.62 in
Suggested Max Deflection 0.49 in
Suggested Max Load 17 lbf
Total Coils 10
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name F-48
Ends Closed & Ground
Finish Zinc
Free Length 38.1 mm
Inside Diameter 9.12 mm
Material Spring Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 6.13 N/mm
SKU F-48CS
Solid Length 15.75 mm
Suggested Max Deflection 12.45 mm
Suggested Max Load 75.62 N
Total Coils 10
Wire Diameter 1.59 mm
The F-48 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The F-48CS compression spring is designed with a free length of 0.34" total of 5.5 coils, and a rate of 0.93 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The F-48 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
