WAV-24765CS - 0.169 Inch ID 0.306 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

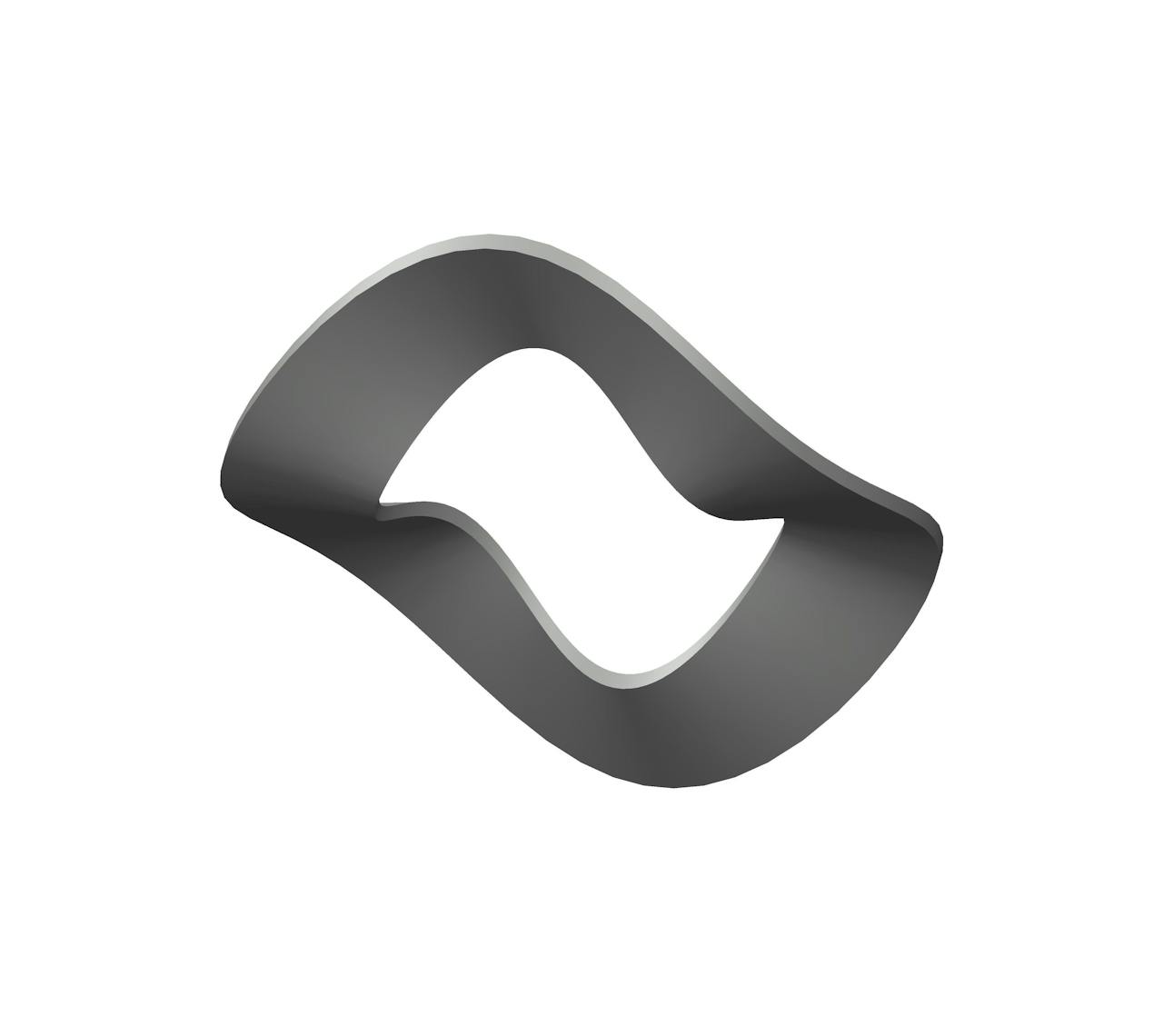

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.169 Inch and an outside diameter of 0.306 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 15.5 lb
Display Name WAV-24765
Finish None
Inside Diameter 0.169 in
Material Spring Steel
Maximum Deflection at 100% Height 0.005 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.306 in
Outside Height 0.06 in
SKU WAV-24765CS
T 0.008 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 7.03 kg
Display Name WAV-24765
Finish None
Inside Diameter 4.29 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.13 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 7.77 mm
Outside Height 1.52 mm
SKU WAV-24765CS
T 0.2 mm
