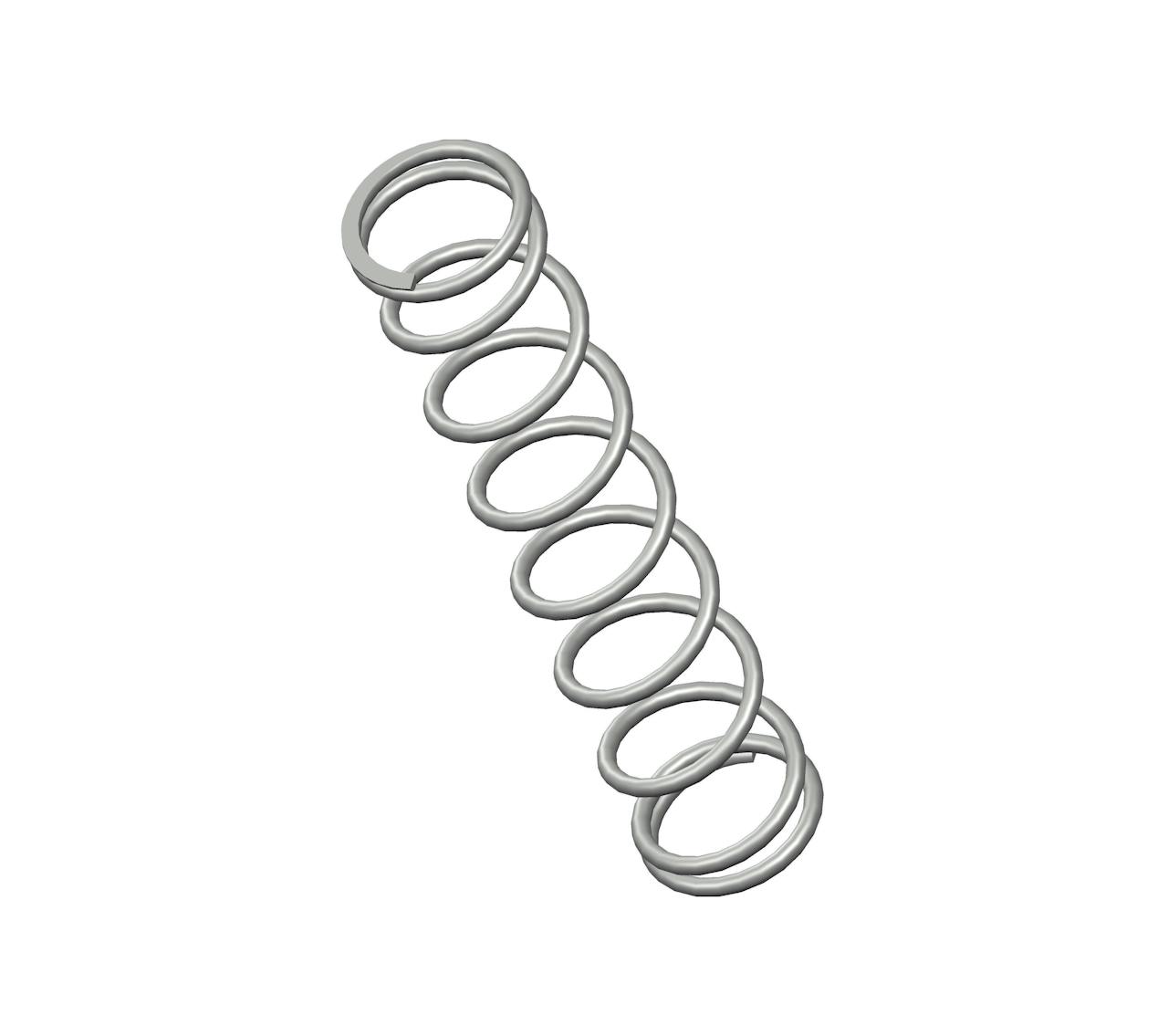

EE-59CS - 2.5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 9.5 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.4".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.5 in |
| Inside Diameter | 0.4 in |
| Material | Spring Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 13 lbs/in |
| SKU | EE-59CS |
| Solid Length | 0.48 in |
| Suggested Max Deflection | 0.68 in |
| Suggested Max Load | 9 lbf |
| Total Coils | 9.5 |
| Wire Diameter | 0.05 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 63.5 mm |
| Inside Diameter | 10.16 mm |
| Material | Spring Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 2.28 N/mm |
| SKU | EE-59CS |
| Solid Length | 12.19 mm |
| Suggested Max Deflection | 17.27 mm |
| Suggested Max Load | 40.03 N |
| Total Coils | 9.5 |
| Wire Diameter | 1.27 mm |
The compression spring EE-59CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the EE-59 compression spring design exhibits exceptional tensile strength and resilience.
The EE-59 design is manufactured with a free length of 2.5", with an outer diameter of 0.5", an inner diameter of 0.4", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.
The EE-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The EE-59 design is manufactured with a free length of 2.5", with an outer diameter of 0.5", an inner diameter of 0.4", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.
The EE-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
