Century Spring

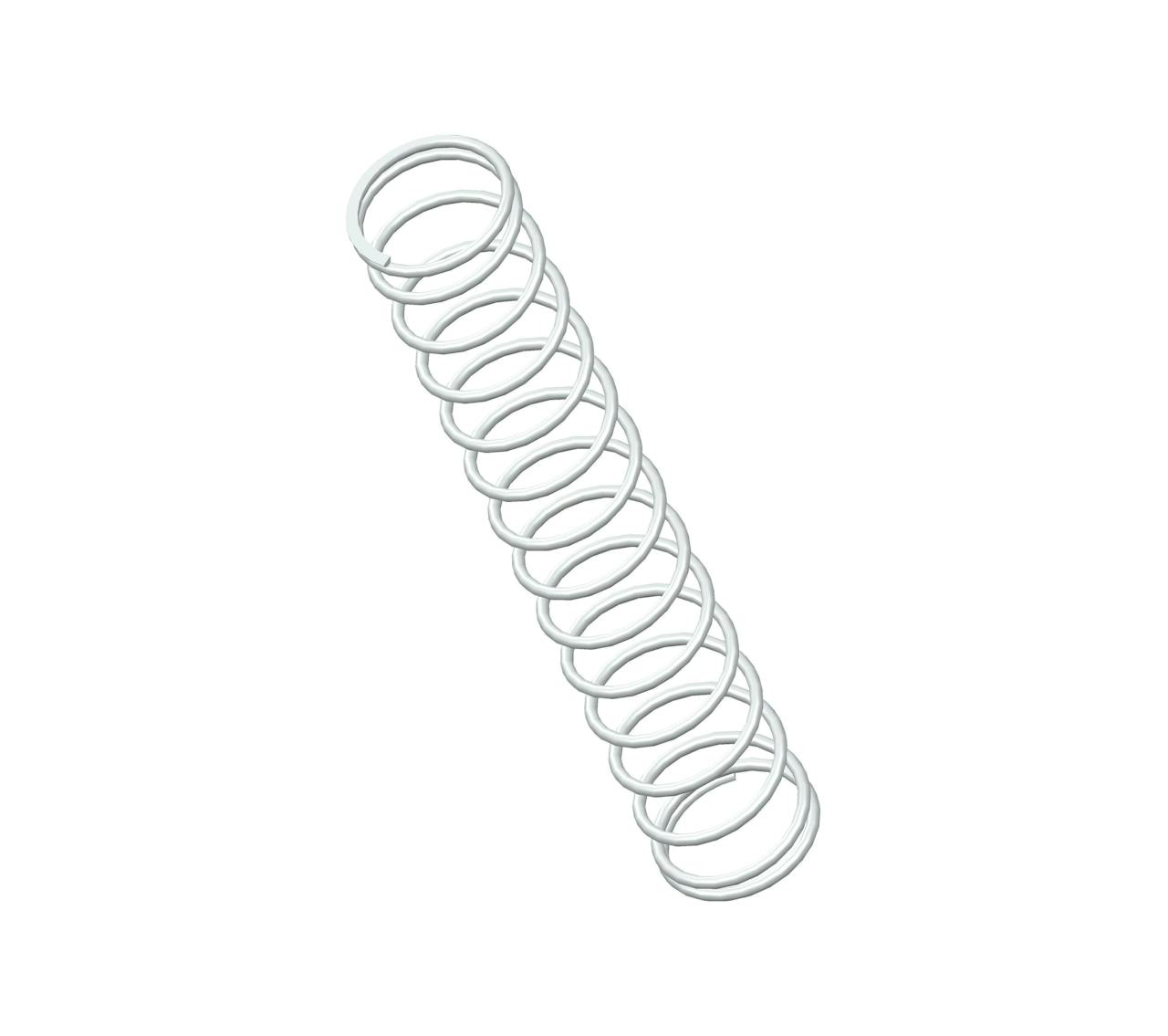

12675CS - 3.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 15.4 coils and closed & ground ends. This spring features an O.D. of 0.6", and an I.D. of 0.51".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 12675
Ends Closed & Ground
Finish None
Free Length 3.5 in
Inside Diameter 0.51 in
Material 302/304 Stainless Steel
Outside Diameter 0.6 in
Part Type Standard
Rate 2.2 lbs/in
SKU 12675CS
Solid Length 0.69 in
Suggested Max Deflection 2.5 in
Suggested Max Load 5.5 lbf
Total Coils 15.4
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 12675
Ends Closed & Ground
Finish None
Free Length 88.9 mm
Inside Diameter 12.95 mm
Material 302/304 Stainless Steel
Outside Diameter 15.24 mm
Part Type Standard
Rate 0.39 N/mm
SKU 12675CS
Solid Length 17.53 mm
Suggested Max Deflection 63.5 mm
Suggested Max Load 24.46 N
Total Coils 15.4
Wire Diameter 1.14 mm
The 12675CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.045" diameter 302/304 stainless steel, the 12675 spring design exhibits reliable strength across its 15.4 active coils, withstanding repeated compression cycles with a maximum load of 5.5 lbf without succumbing to fatigue.

We manufacture the 12675 design to provide a compression spring that is 3.5" long at rest and provides a consistent rate of 2.2 lbs/in along its recommended maximum of 2.5" deflection. For best results, your application should fully accommodate the inner (0.51") and outer (0.6") diameters of this spring and be designed for its closed & ground end configuration.
