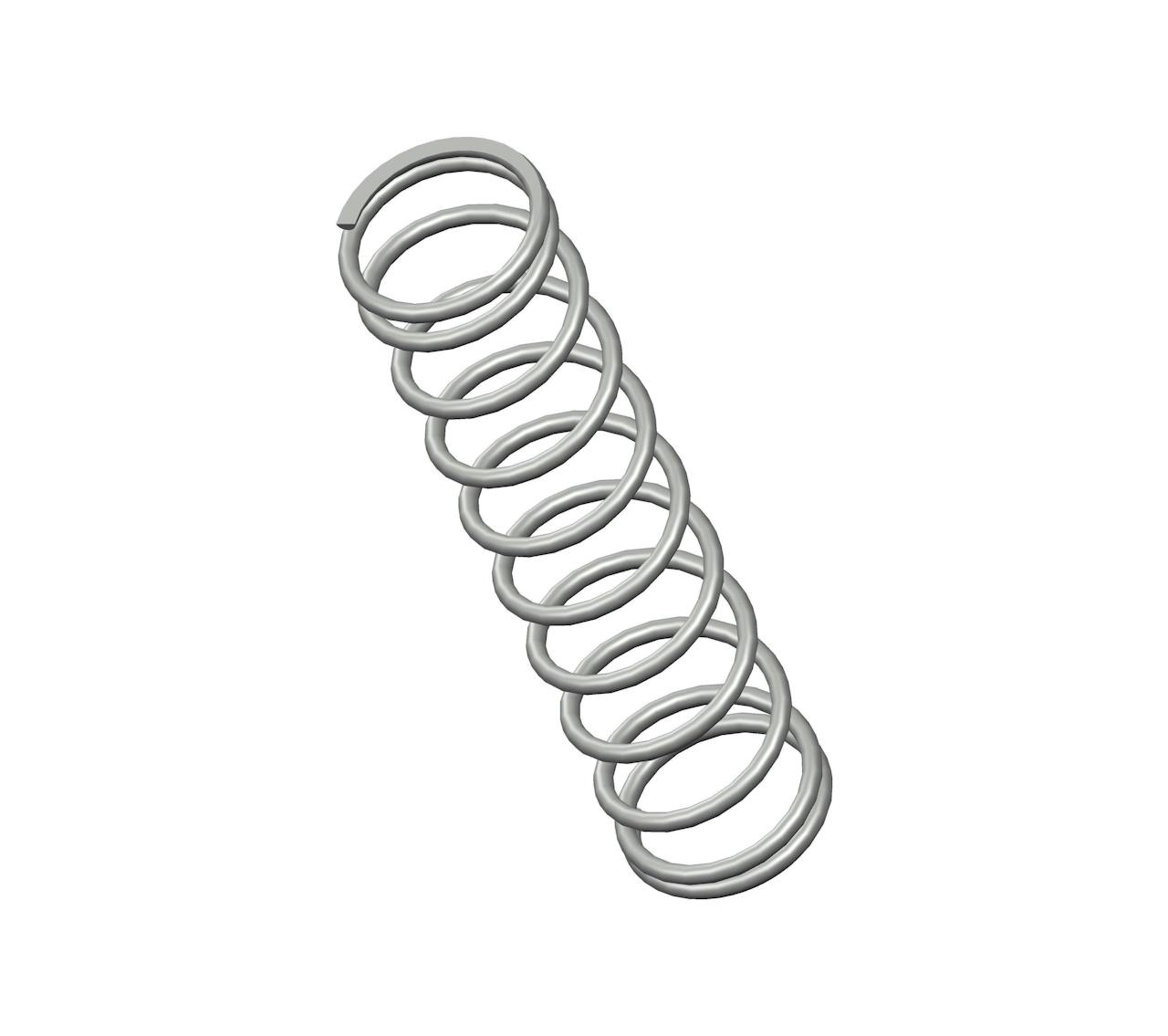

B17-202CS - 3.34" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 11 coils and closed & ground ends. This spring features an O.D. of 0.796", and an I.D. of 0.652".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B17-202 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.34 in |
| Inside Diameter | 0.652 in |
| Material | Spring Steel |
| Outside Diameter | 0.796 in |
| Part Type | Standard |
| Rate | 11 lbs/in |
| SKU | B17-202CS |
| Solid Length | 0.79 in |
| Suggested Max Deflection | 1.4 in |
| Suggested Max Load | 16 lbf |
| Total Coils | 11 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B17-202 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 84.84 mm |
| Inside Diameter | 16.56 mm |
| Material | Spring Steel |
| Outside Diameter | 20.22 mm |
| Part Type | Standard |
| Rate | 1.93 N/mm |
| SKU | B17-202CS |
| Solid Length | 20.07 mm |
| Suggested Max Deflection | 35.56 mm |
| Suggested Max Load | 71.17 N |
| Total Coils | 11 |
| Wire Diameter | 1.83 mm |
The B17-202 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The B17-202CS compression spring is designed with a free length of 3.59" total of 10.3 coils, and a rate of 0.43 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B17-202 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The B17-202CS compression spring is designed with a free length of 3.59" total of 10.3 coils, and a rate of 0.43 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B17-202 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
