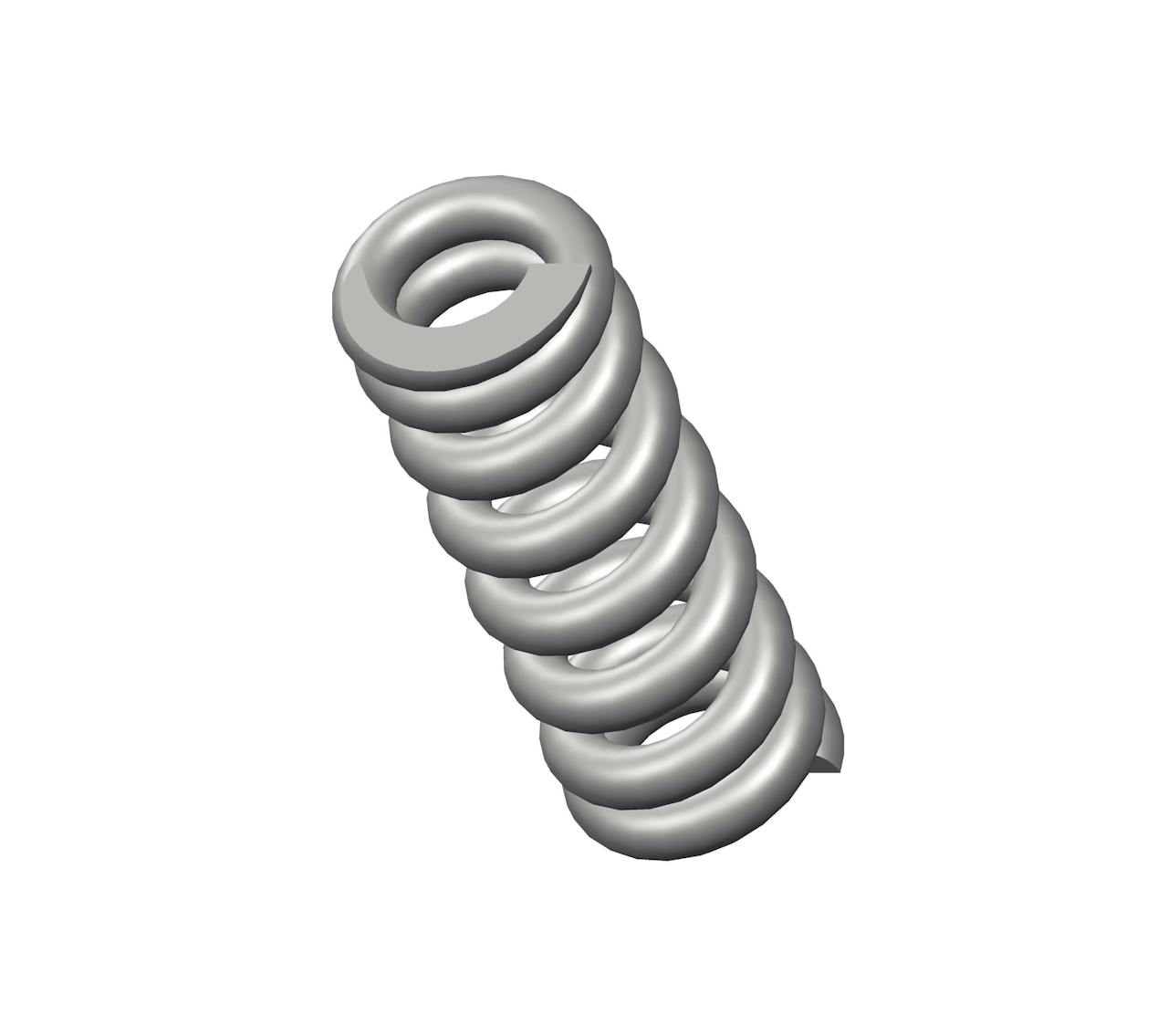

EE-35CS - 0.63" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.219", and an I.D. of 0.119".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name EE-35
Ends Closed & Ground
Finish None
Free Length 0.63 in
Inside Diameter 0.119 in
Material Spring Steel
Outside Diameter 0.219 in
Part Type Standard
Rate 310 lbs/in
SKU EE-35CS
Solid Length 0.4 in
Suggested Max Deflection 0.06 in
Suggested Max Load 19 lbf
Total Coils 8
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name EE-35
Ends Closed & Ground
Finish None
Free Length 16 mm
Inside Diameter 3.02 mm
Material Spring Steel
Outside Diameter 5.56 mm
Part Type Standard
Rate 54.28 N/mm
SKU EE-35CS
Solid Length 10.16 mm
Suggested Max Deflection 1.52 mm
Suggested Max Load 84.51 N
Total Coils 8
Wire Diameter 1.27 mm
The compression spring EE-35CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the EE-35 compression spring design exhibits exceptional tensile strength and resilience.

The EE-35 design is manufactured with a free length of 0.63", with an outer diameter of 0.219", an inner diameter of 0.119", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 310 lbs/in.

The EE-35CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring EE-35 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
