Century Spring

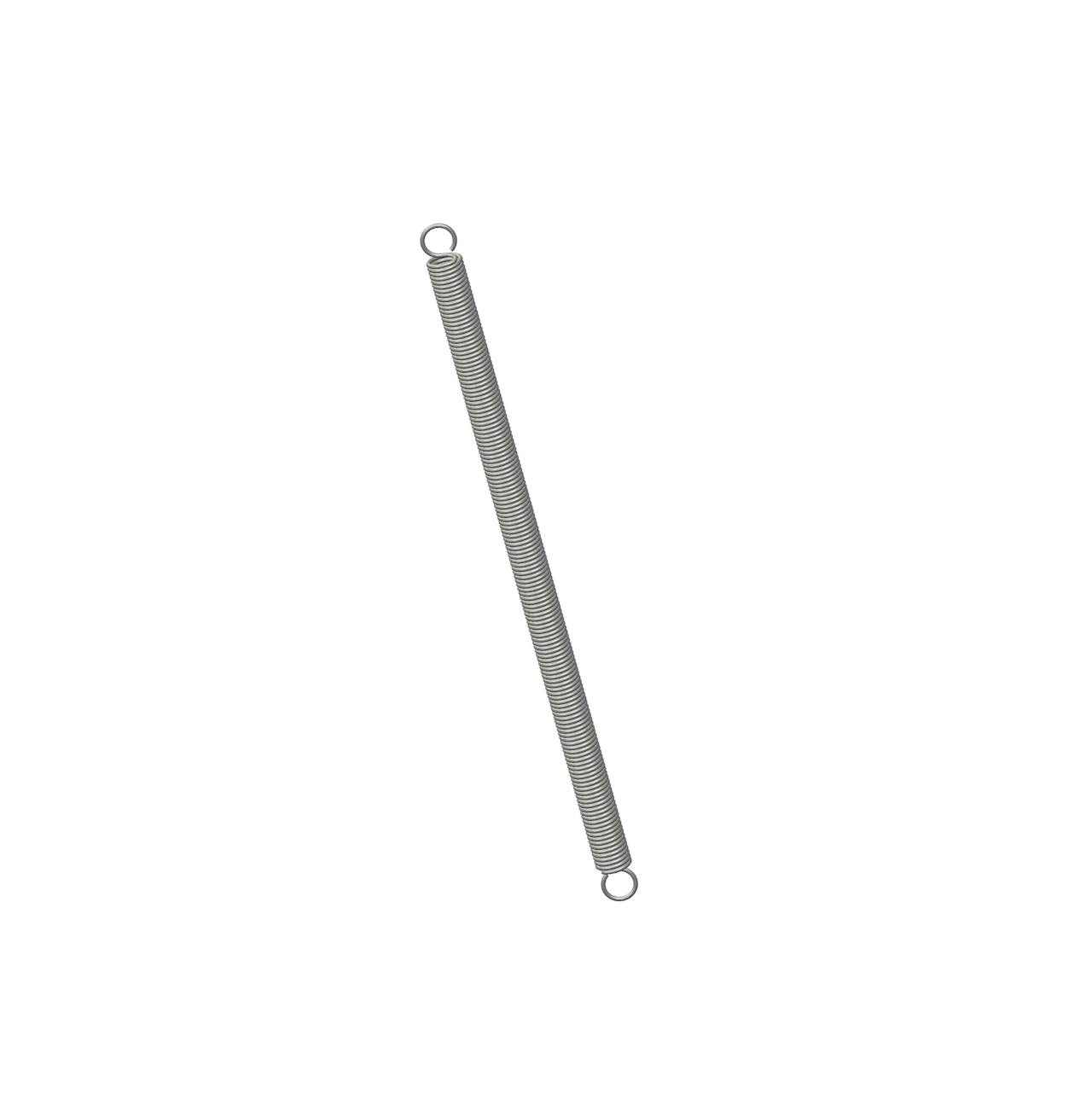

149CS - 5 Inch High Carbon Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 149
Ends Full Loop
Finish Zinc
Initial Tension 0.8 lb
Length 5 in
Material High Carbon Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 0.84 lbs/in
SKU 149CS
Sugg Max Deflection 4.4 in
Sugg Max Load 4.5 lbf
Wind Direction Left
Wire Diameter 0.031 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 149
Ends Full Loop
Finish Zinc
Initial Tension 0.36 kg
Length 127 mm
Material High Carbon Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 0.15 N/mm
SKU 149CS
Sugg Max Deflection 111.76 mm
Sugg Max Load 20.02 N
Wind Direction Left
Wire Diameter 0.79 mm
