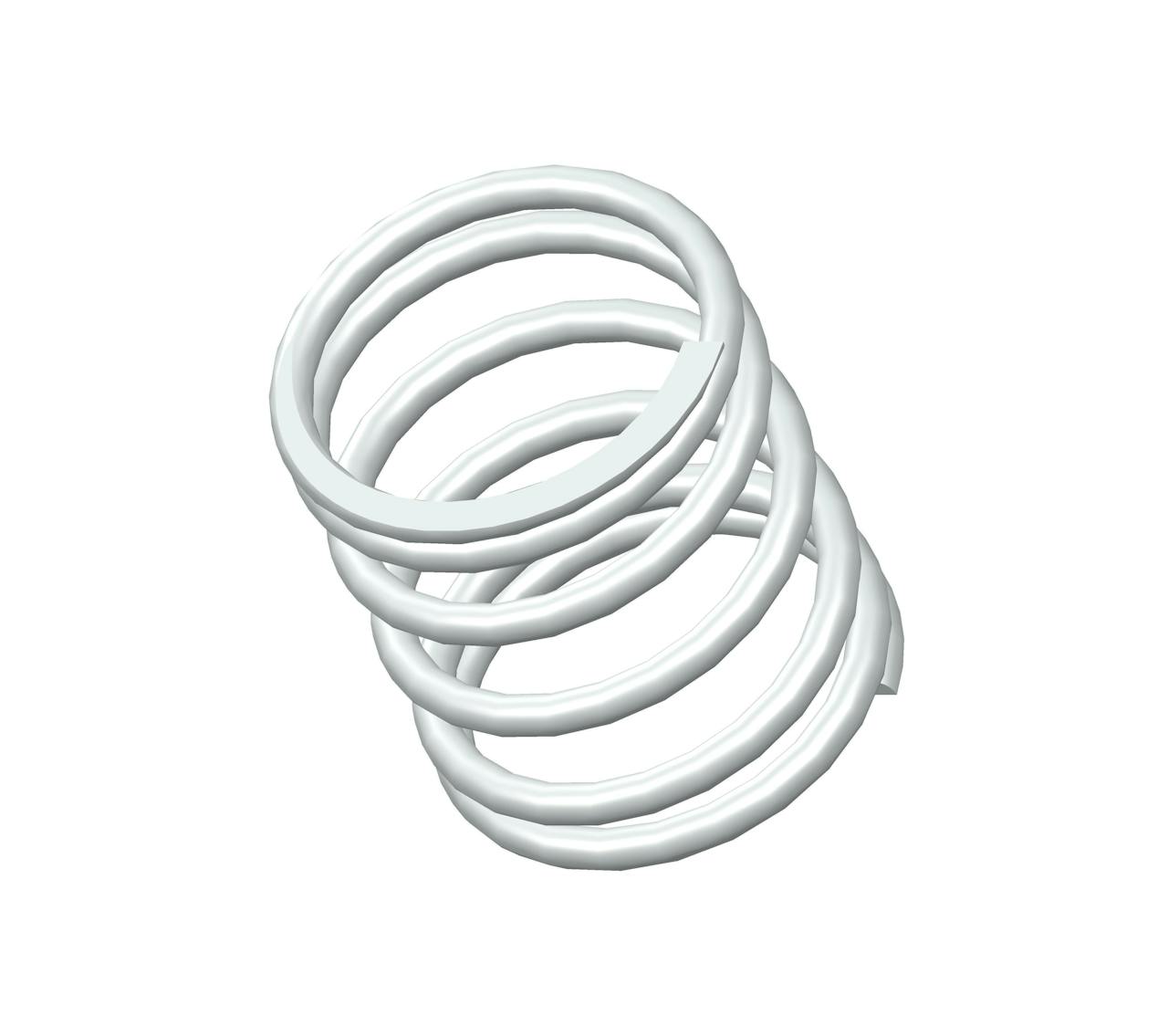

EE-32CS - 0.38" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.328", and an I.D. of 0.27".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-32 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.38 in |
| Inside Diameter | 0.27 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.328 in |
| Part Type | Standard |
| Rate | 8.3 lbs/in |
| SKU | EE-32CS |
| Solid Length | 0.17 in |
| Suggested Max Deflection | 0.2 in |
| Suggested Max Load | 1.7 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.029 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | EE-32 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 9.65 mm |
| Inside Diameter | 6.86 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 8.33 mm |
| Part Type | Standard |
| Rate | 1.45 N/mm |
| SKU | EE-32CS |
| Solid Length | 4.32 mm |
| Suggested Max Deflection | 5.08 mm |
| Suggested Max Load | 7.56 N |
| Total Coils | 6 |
| Wire Diameter | 0.74 mm |
The compression spring EE-32CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the EE-32 compression spring design exhibits exceptional tensile strength and resilience.
The EE-32 design is manufactured with a free length of 0.38", with an outer diameter of 0.328", an inner diameter of 0.27", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.3 lbs/in.
The EE-32CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-32 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The EE-32 design is manufactured with a free length of 0.38", with an outer diameter of 0.328", an inner diameter of 0.27", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.3 lbs/in.
The EE-32CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring EE-32 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
