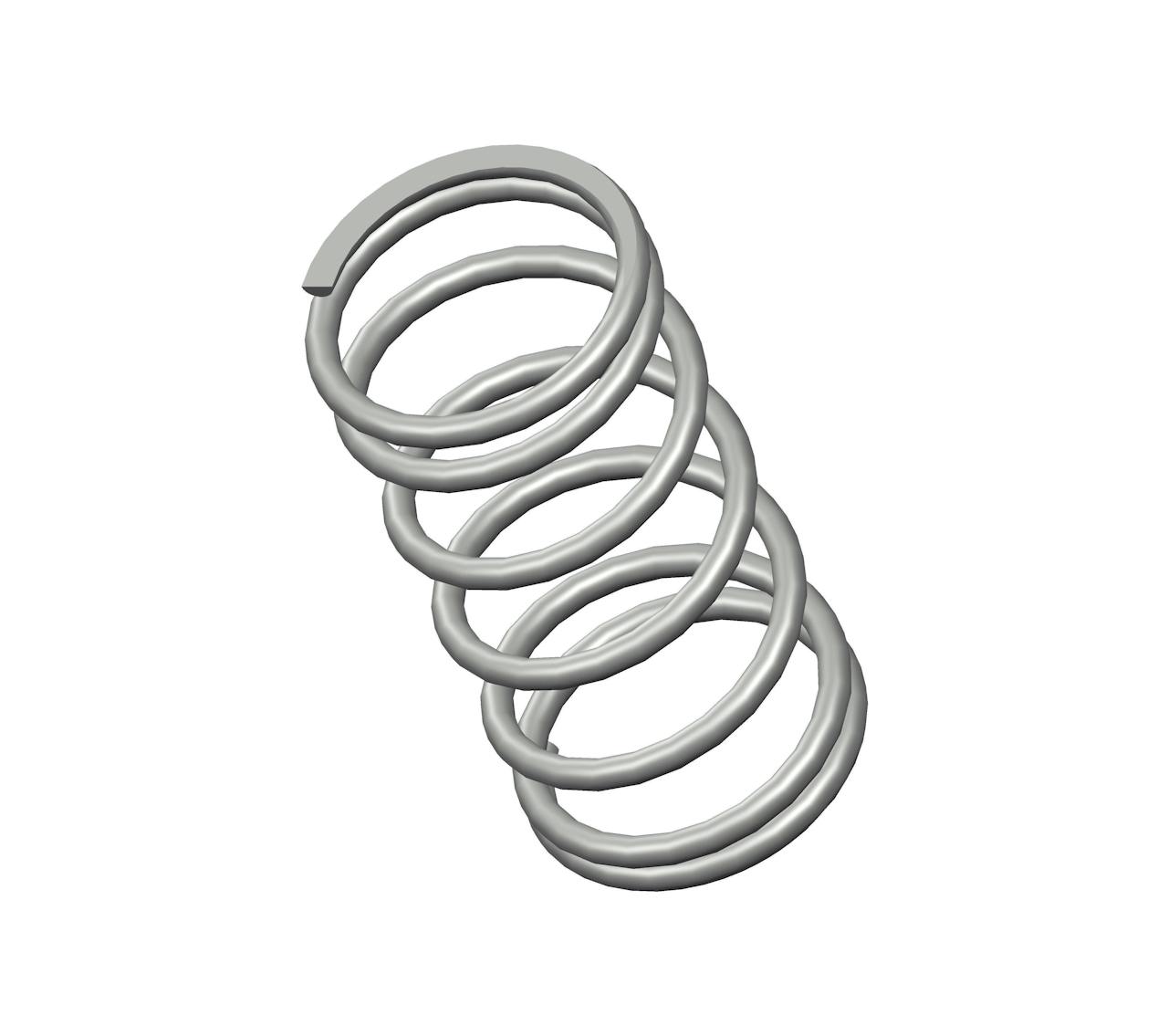

11605CS - 2.69" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 7 coils and closed ends. This spring features an O.D. of 1.328", and an I.D. of 1.088".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11605
Ends Closed
Finish Zinc
Free Length 2.69 in
Inside Diameter 1.088 in
Material Spring Steel
Outside Diameter 1.328 in
Part Type Standard
Rate 34 lbs/in
SKU 11605CS
Solid Length 0.96 in
Suggested Max Deflection 1.2 in
Suggested Max Load 41 lbf
Total Coils 7
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11605
Ends Closed
Finish Zinc
Free Length 68.33 mm
Inside Diameter 27.64 mm
Material Spring Steel
Outside Diameter 33.73 mm
Part Type Standard
Rate 5.95 N/mm
SKU 11605CS
Solid Length 24.38 mm
Suggested Max Deflection 30.48 mm
Suggested Max Load 182.37 N
Total Coils 7
Wire Diameter 3.05 mm
The 11605CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.12" diameter spring steel, the 11605 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 41 lbf without succumbing to fatigue.

We manufacture the 11605 design to provide a compression spring that is 2.69" long at rest and provides a consistent rate of 34 lbs/in along its recommended maximum of 1.2" deflection. For best results, your application should fully accommodate the inner (1.088") and outer (1.328") diameters of this spring and be designed for its closed end configuration.
