Century Spring

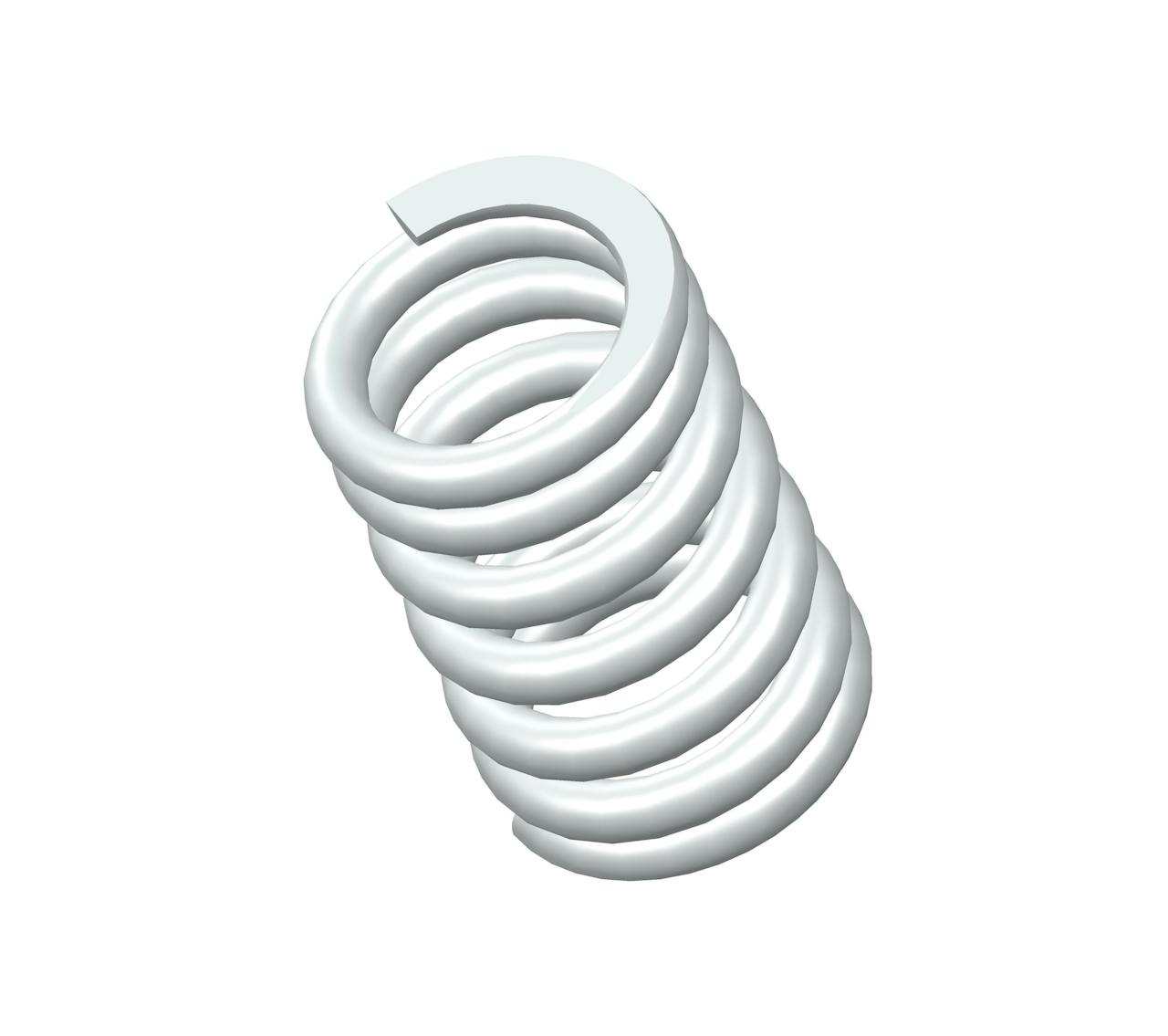

DD-96CS - 0.81" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 6.75 coils and closed & ground ends. This spring features an O.D. of 0.515", and an I.D. of 0.355".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name DD-96
Ends Closed & Ground
Finish None
Free Length 0.81 in
Inside Diameter 0.355 in
Material 302/304 Stainless Steel
Outside Diameter 0.515 in
Part Type Standard
Rate 131 lbs/in
SKU DD-96CS
Solid Length 0.54 in
Suggested Max Deflection 0.23 in
Suggested Max Load 31 lbf
Total Coils 6.75
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name DD-96
Ends Closed & Ground
Finish None
Free Length 20.57 mm
Inside Diameter 9.02 mm
Material 302/304 Stainless Steel
Outside Diameter 13.08 mm
Part Type Standard
Rate 22.94 N/mm
SKU DD-96CS
Solid Length 13.72 mm
Suggested Max Deflection 5.84 mm
Suggested Max Load 137.89 N
Total Coils 6.75
Wire Diameter 2.03 mm
The DD-96 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The DD-96CS compression spring is designed with a free length of 1.81" total of 20 coils, and a rate of 2.1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The DD-96 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
