Century Spring

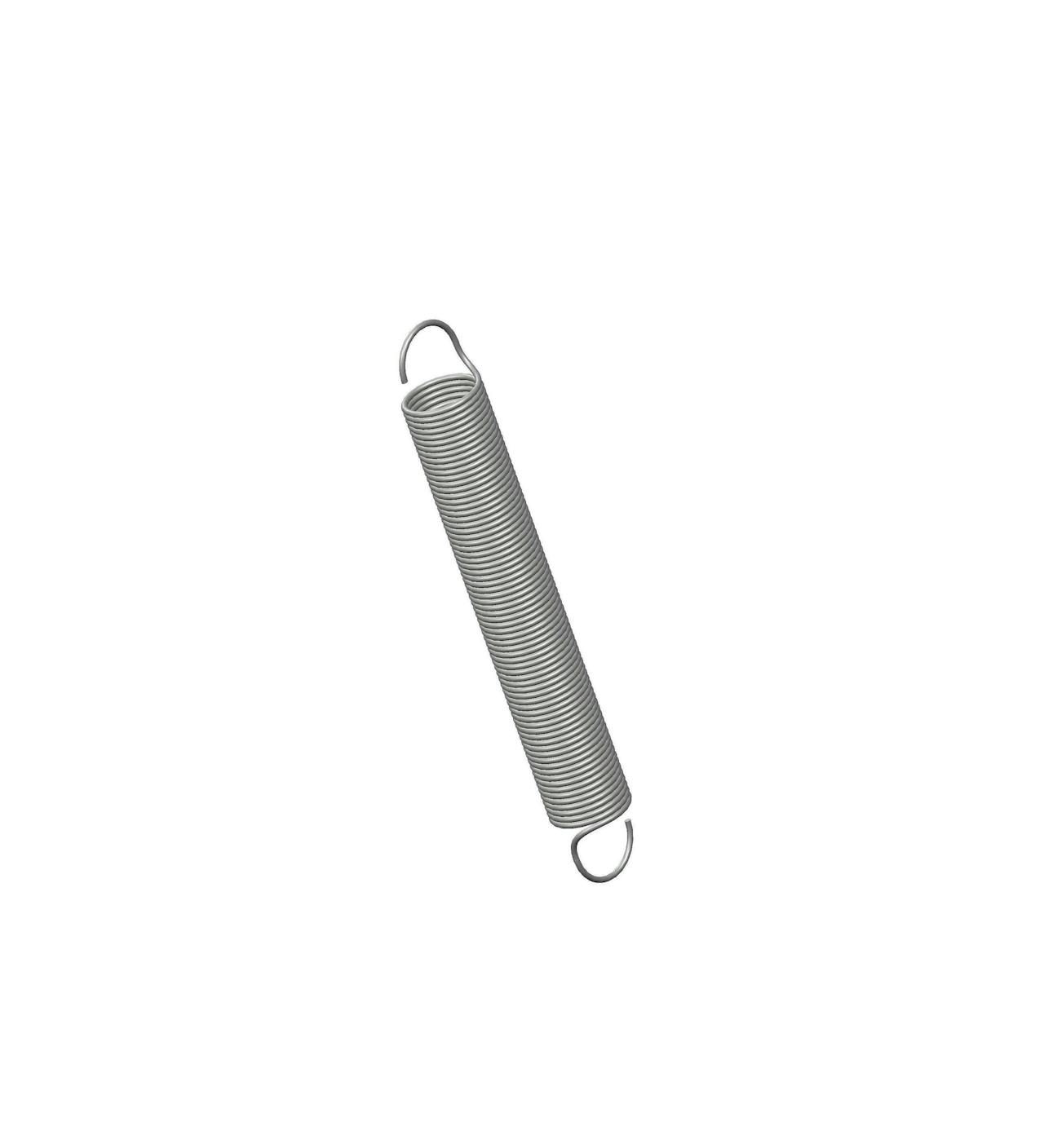

495CS - 1.06 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.14 Inch and an initial tension of 0.03 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 495
Ends Machine Hook
Finish Zinc
Initial Tension 0.03 lb
Length 1.06 in
Material Music Wire
Outside Diameter 0.14 in
Part Type Standard
Rate 0.12 lbs/in
SKU 495CS
Sugg Max Deflection 4.2 in
Sugg Max Load 0.55 lbf
Wind Direction Left
Wire Diameter 0.011 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 495
Ends Machine Hook
Finish Zinc
Initial Tension 0.01 kg
Length 26.92 mm
Material Music Wire
Outside Diameter 3.56 mm
Part Type Standard
Rate 0.02 N/mm
SKU 495CS
Sugg Max Deflection 106.68 mm
Sugg Max Load 2.45 N
Wind Direction Left
Wire Diameter 0.28 mm
