Century Spring

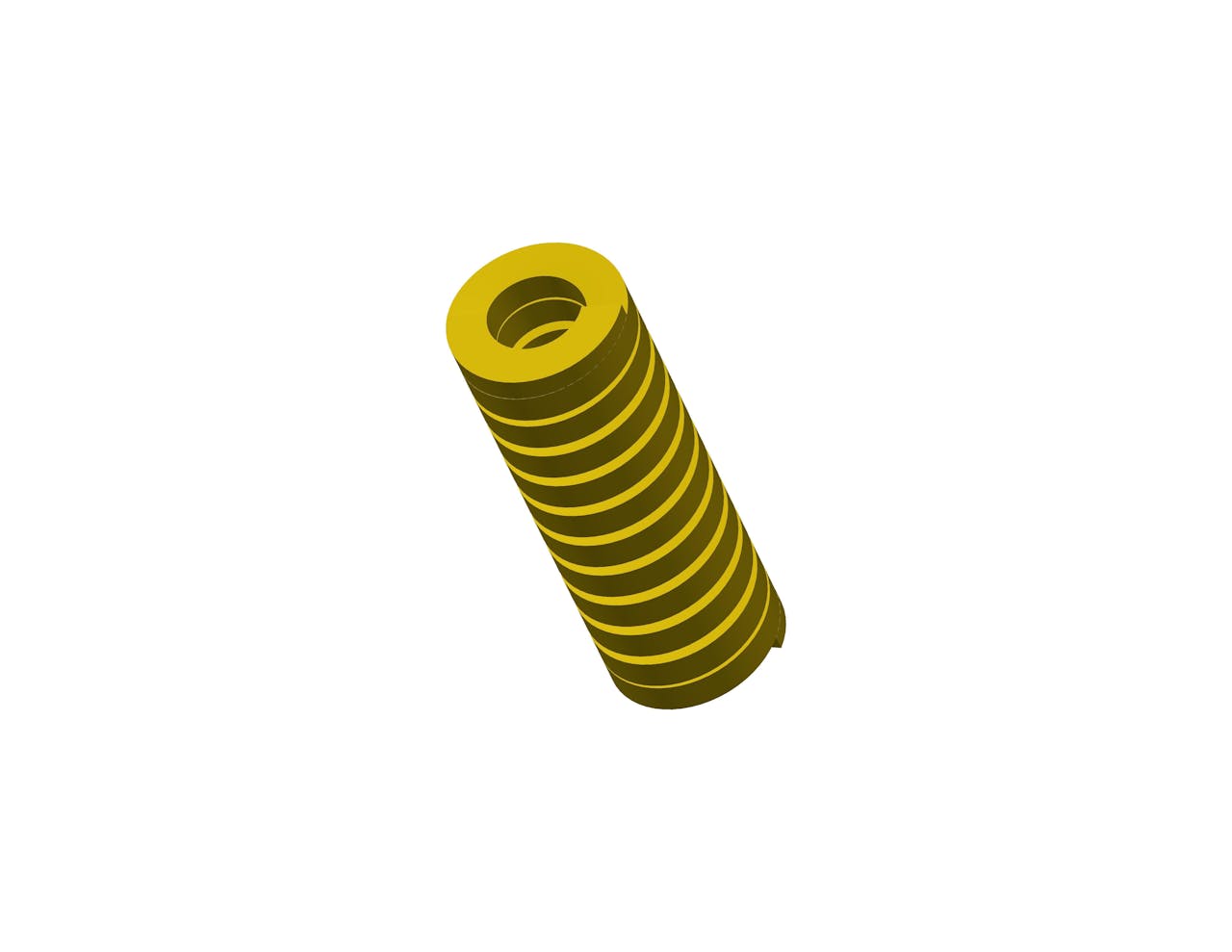

D-9201436CS - 3.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 619 lb
Brand Century Spring
Deflection For Average Life 0.6 in
Deflection For Long Life 0.7 in
Display Name D-9201436
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 3.5 in
Hole Size 1.25 in
Long Life Deflection Force 729 lb
Material Chrome Silicon
Maximum Deflection 0.88 in
Maximum Deflection Force 911 lb
Measurement Units Standard
Rate 1040 lbs/in
Rod Size 0.625 in
SKU D-9201436CS
Wire Diameter 0.28 in x 0.226 in
Specs (in metric)
Label Value
Average Life Deflection Force 280.73 kg
Brand Century Spring
Deflection For Average Life 15.24 mm
Deflection For Long Life 17.78 mm
Display Name D-9201436
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 88.9 mm
Hole Size 31.75 mm
Long Life Deflection Force 330.61 kg
Material Chrome Silicon
Maximum Deflection 22.35 mm
Maximum Deflection Force 413.15 kg
Measurement Units Standard
Rate 182.1 N/mm
Rod Size 15.88 mm
SKU D-9201436CS
Wire Diameter 7.11 mm x 5.74 mm
