Century Spring

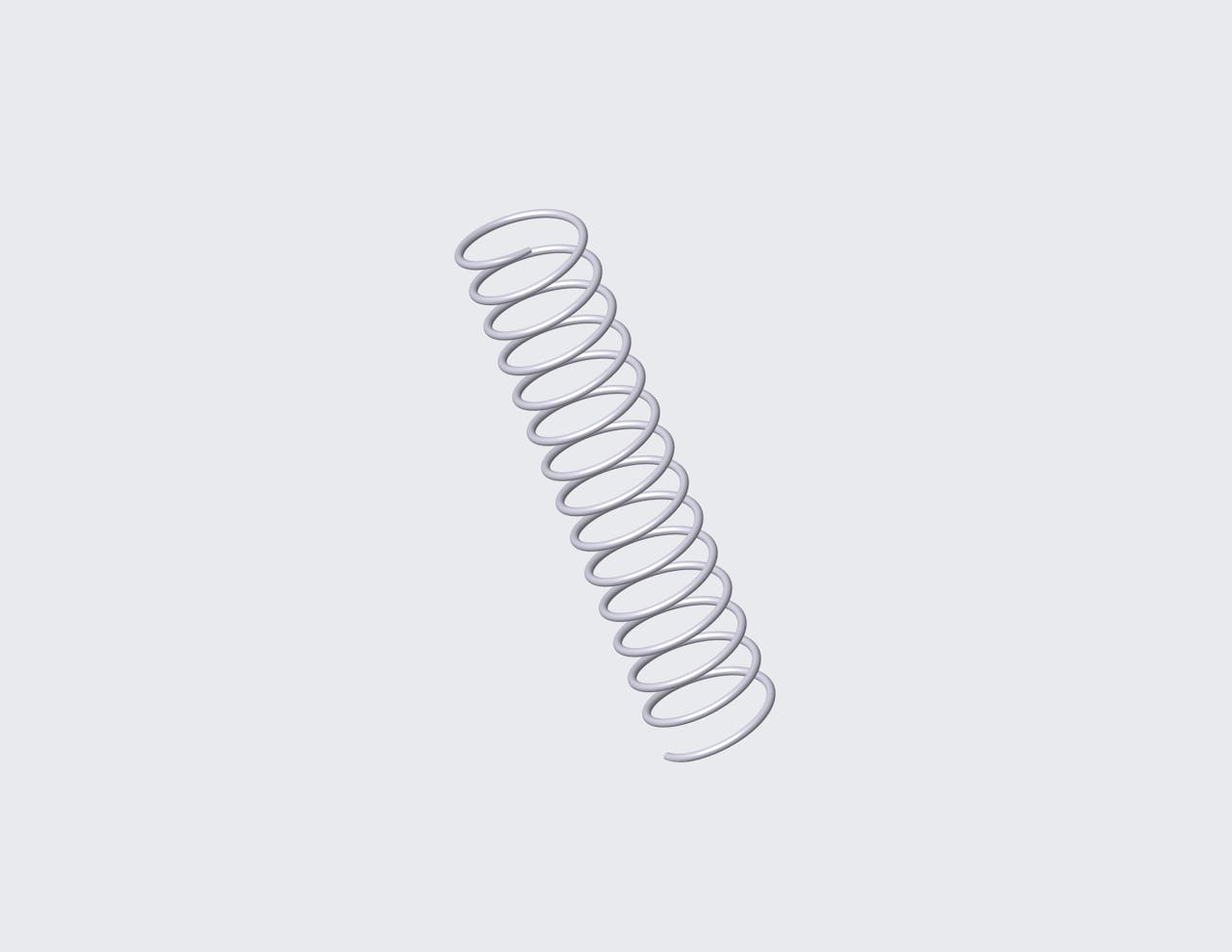

67477SCS - 1.47" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 14 coils and closed & ground ends. This spring features an O.D. of 0.328", and an I.D. of 0.284".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67477S
Ends Closed & Ground
Finish Passivated
Free Length 1.47 in
Inside Diameter 0.284 in
Material 316 Stainless Steel
Outside Diameter 0.328 in
Part Type Standard
Rate 0.852 lbs/in
SKU 67477SCS
Solid Length 0.31 in
Suggested Max Deflection 1.162 in
Suggested Max Load 0.99 lbf
Total Coils 14
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67477S
Ends Closed & Ground
Finish Passivated
Free Length 37.34 mm
Inside Diameter 7.21 mm
Material 316 Stainless Steel
Outside Diameter 8.33 mm
Part Type Standard
Rate 0.15 N/mm
SKU 67477SCS
Solid Length 7.87 mm
Suggested Max Deflection 29.51 mm
Suggested Max Load 4.4 N
Total Coils 14
Wire Diameter 0.56 mm
The 67477S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 67477SCS compression spring is designed with a free length of 1.41" total of 15.8 coils, and a rate of 3.193 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 67477S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
