Century Spring

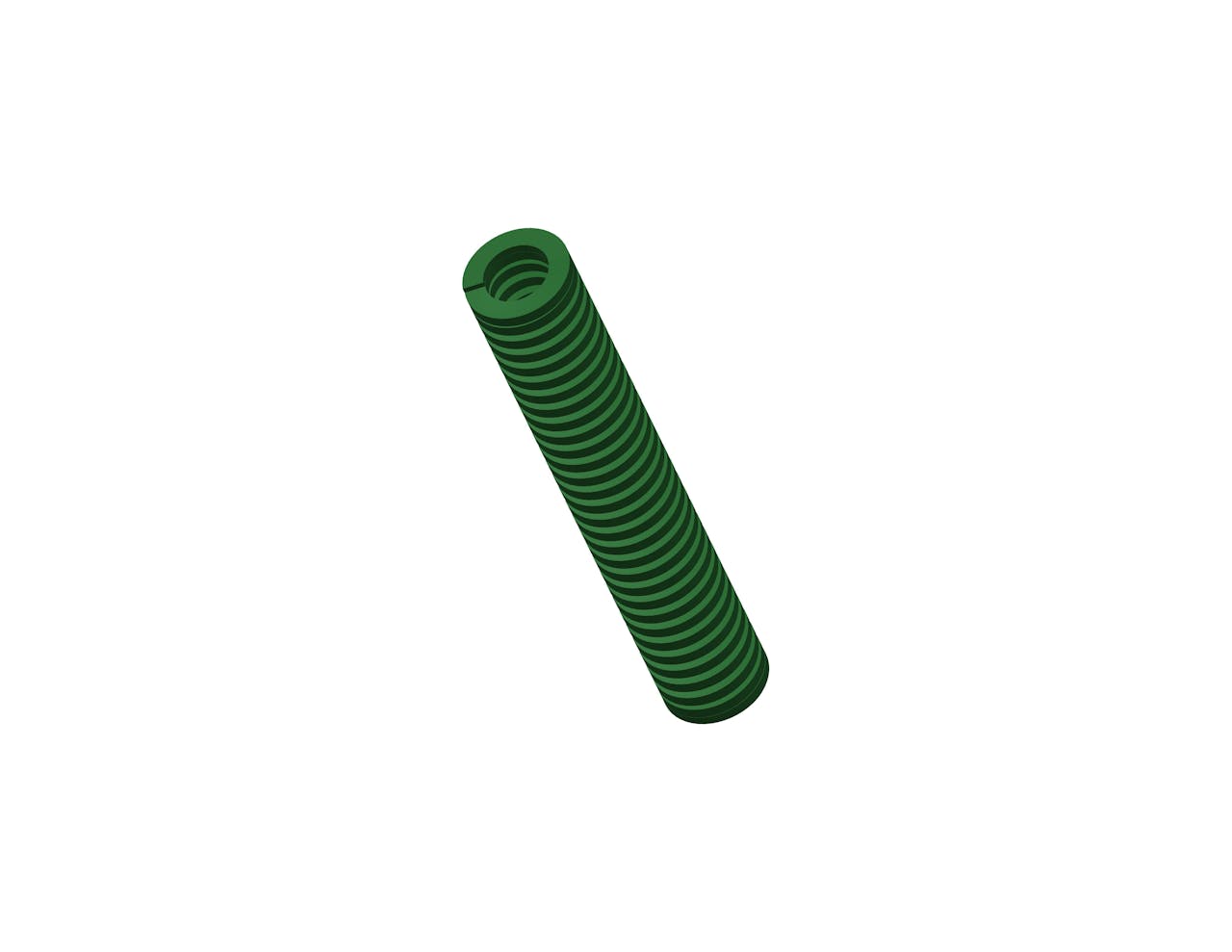

D-9101411CS - 3.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 46 lb
Brand Century Spring
Deflection For Average Life 0.88 in
Deflection For Long Life 1.05 in
Display Name D-9101411
Duty Load Light
Finish None
Finish Color Green
Free Length 3.5 in
Hole Size 0.625 in
Long Life Deflection Force 56 lb
Material Chrome Silicon
Maximum Deflection 1.4 in
Maximum Deflection Force 74 lb
Measurement Units Standard
Rate 53 lbs/in
Rod Size 0.3428 in
SKU D-9101411CS
Wire Diameter 0.117 in x 0.068 in
Specs (in metric)
Label Value
Average Life Deflection Force 20.86 kg
Brand Century Spring
Deflection For Average Life 22.35 mm
Deflection For Long Life 26.67 mm
Display Name D-9101411
Duty Load Light
Finish None
Finish Color Green
Free Length 88.9 mm
Hole Size 15.88 mm
Long Life Deflection Force 25.4 kg
Material Chrome Silicon
Maximum Deflection 35.56 mm
Maximum Deflection Force 33.56 kg
Measurement Units Standard
Rate 9.28 N/mm
Rod Size 8.71 mm
SKU D-9101411CS
Wire Diameter 2.97 mm x 1.73 mm
