Century Spring

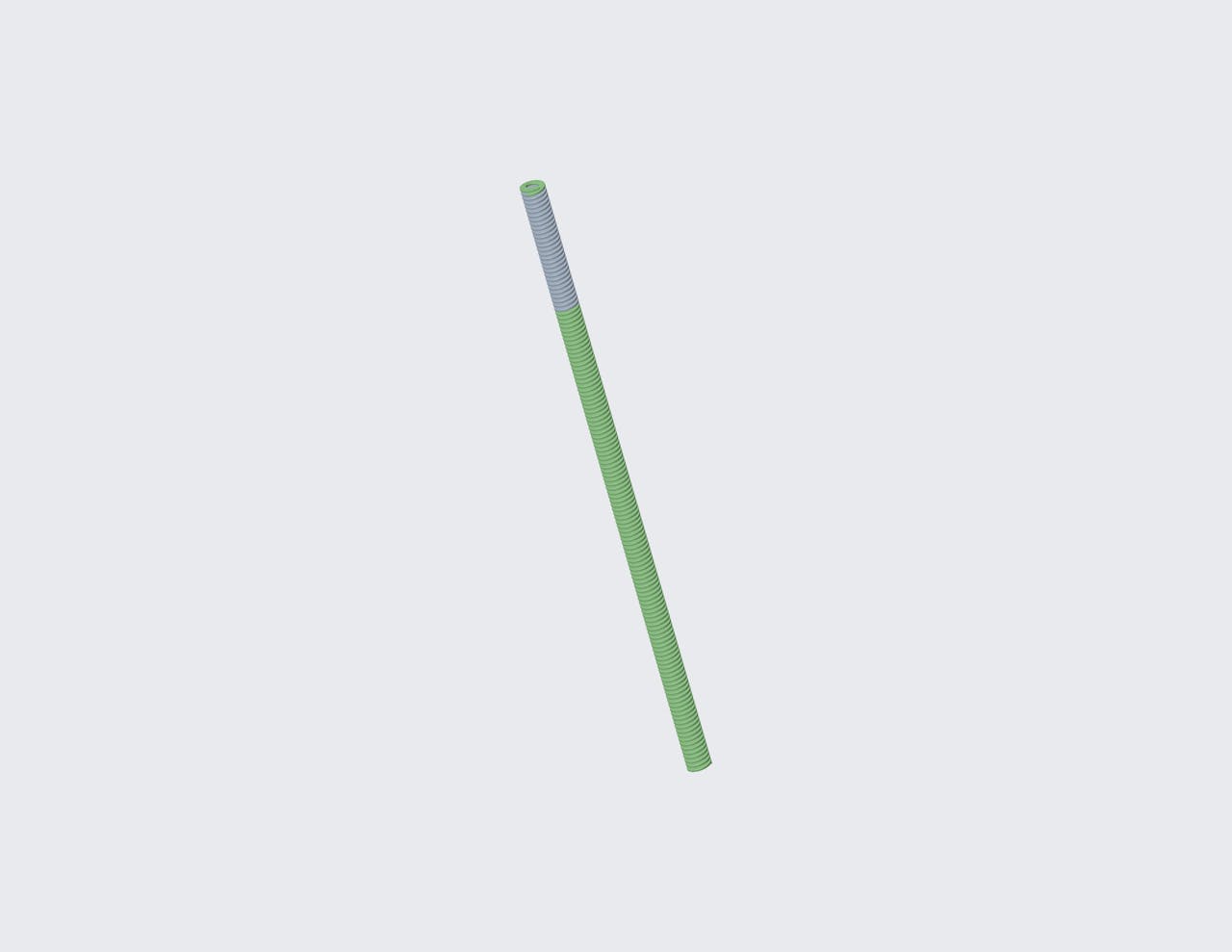

D-303148CS - 305 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 305 Millimeter long and has a 1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 3.0039 in
Deflection 2 3.6024 in
Deflection 3 4.8031 in
Display Name D-303148
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 12.0079 in
Hole Size 0.3937 in
Load 1 17.7608 lbf
Load 2 21.3579 lbf
Load 3 28.5522 lbf
Load At Max Deflection 41.1421 lbf
Material Chrome Silicon
Max Deflection 6.9291 in
Measurement Units Metric
Rate 5.711 lbs/in
Rod Size 0.1969 in
SKU D-303148CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 76.3 mm
Deflection 2 91.5 mm
Deflection 3 122 mm
Display Name D-303148
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 305 mm
Hole Size 10 mm
Load 1 79 N
Load 2 95 N
Load 3 127 N
Load At Max Deflection 183 N
Material Chrome Silicon
Max Deflection 176 mm
Measurement Units Metric
Rate 1 N/mm
Rod Size 5 mm
SKU D-303148CS
