Century Spring

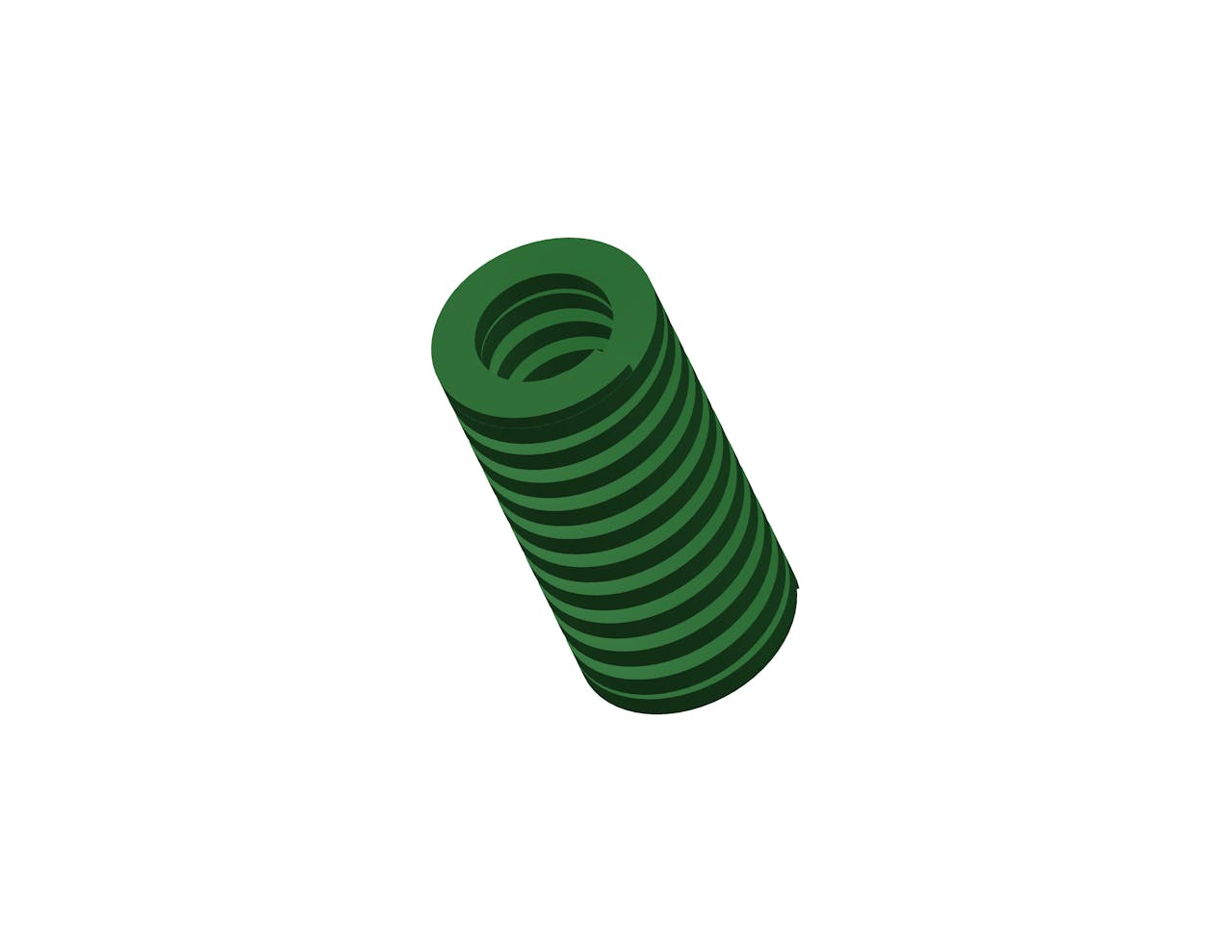

D-9080411CS - 1 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

1 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 27 lb
Brand Century Spring
Deflection For Average Life 0.25 in
Deflection For Long Life 0.3 in
Display Name D-9080411
Duty Load Light
Finish None
Finish Color Green
Free Length 1 in
Hole Size 0.5 in
Long Life Deflection Force 32 lb
Material Chrome Silicon
Maximum Deflection 0.4 in
Maximum Deflection Force 43 lb
Measurement Units Standard
Rate 109 lbs/in
Rod Size 0.2813 in
SKU D-9080411CS
Wire Diameter 0.095 in x 0.052 in
Specs (in metric)
Label Value
Average Life Deflection Force 12.24 kg
Brand Century Spring
Deflection For Average Life 6.35 mm
Deflection For Long Life 7.62 mm
Display Name D-9080411
Duty Load Light
Finish None
Finish Color Green
Free Length 25.4 mm
Hole Size 12.7 mm
Long Life Deflection Force 14.51 kg
Material Chrome Silicon
Maximum Deflection 10.16 mm
Maximum Deflection Force 19.5 kg
Measurement Units Standard
Rate 19.09 N/mm
Rod Size 7.15 mm
SKU D-9080411CS
Wire Diameter 2.41 mm x 1.32 mm
