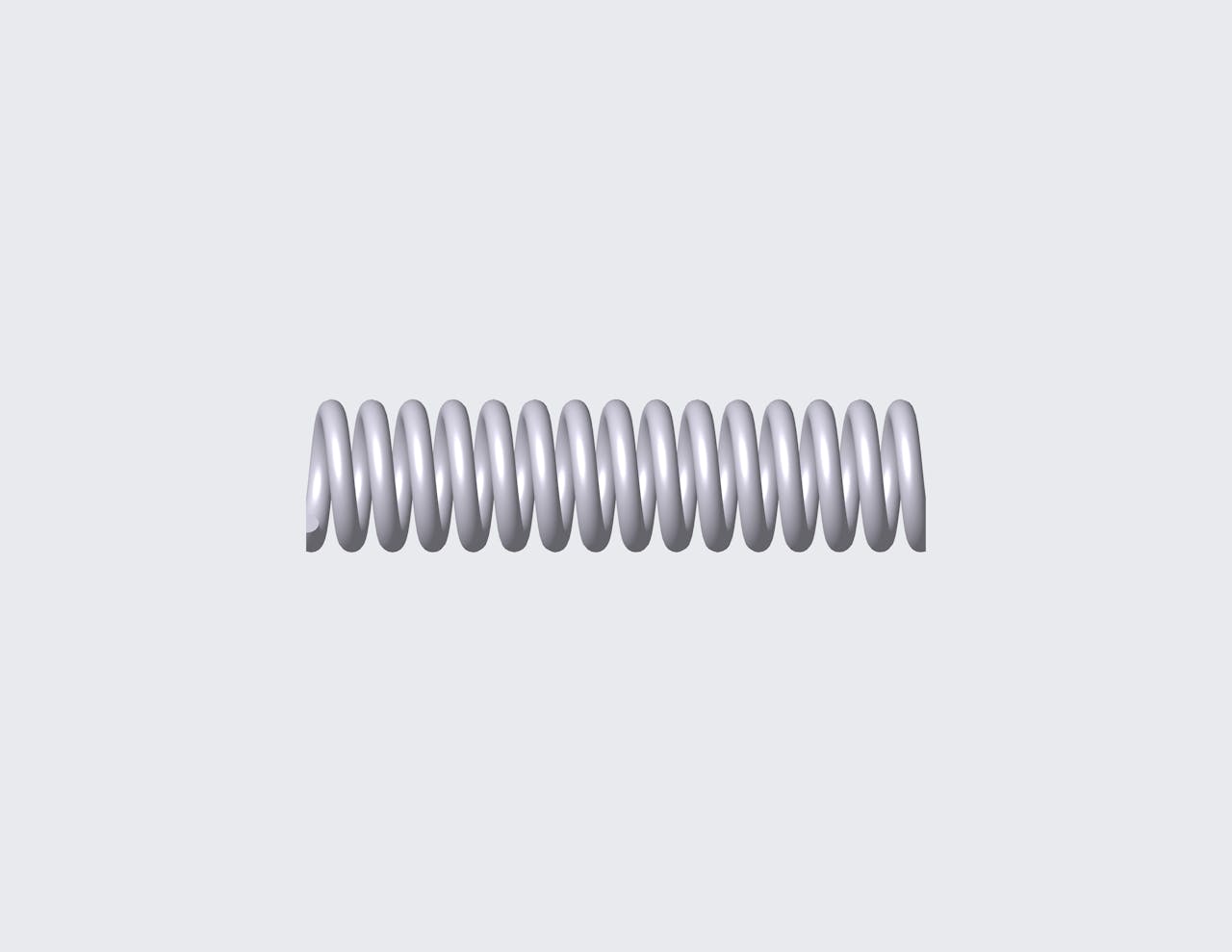

76954CS - 6.102" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 14.61 coils and closed & ground ends. This spring features an O.D. of 1.51", and an I.D. of 1.01".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76954 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 6.102 in |
| Inside Diameter | 1.01 in |
| Material | Music Wire |
| Outside Diameter | 1.51 in |
| Part Type | Metric |
| Rate | 222.693 lbs/in |
| SKU | 76954CS |
| Solid Length | 3.653 in |
| Suggested Max Deflection | 1.768 in |
| Suggested Max Load | 393.786 lbf |
| Total Coils | 14.61 |
| Wire Diameter | 0.25 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76954 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 154.99 mm |
| Inside Diameter | 25.65 mm |
| Material | Music Wire |
| Outside Diameter | 38.35 mm |
| Part Type | Metric |
| Rate | 38.99 N/mm |
| SKU | 76954CS |
| Solid Length | 92.79 mm |
| Suggested Max Deflection | 44.91 mm |
| Suggested Max Load | 1751.56 N |
| Total Coils | 14.61 |
| Wire Diameter | 6.35 mm |
The 76954CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.25" diameter music wire, the 76954 spring design exhibits reliable strength across its 14.61 active coils, withstanding repeated compression cycles with a maximum load of 393.786 lbf without succumbing to fatigue.
We manufacture the 76954 design to provide a compression spring that is 6.102" long at rest and provides a consistent rate of 222.693 lbs/in along its recommended maximum of 1.768" deflection. For best results, your application should fully accommodate the inner (1.01") and outer (1.51") diameters of this spring and be designed for its closed & ground end configuration.
We manufacture the 76954 design to provide a compression spring that is 6.102" long at rest and provides a consistent rate of 222.693 lbs/in along its recommended maximum of 1.768" deflection. For best results, your application should fully accommodate the inner (1.01") and outer (1.51") diameters of this spring and be designed for its closed & ground end configuration.
