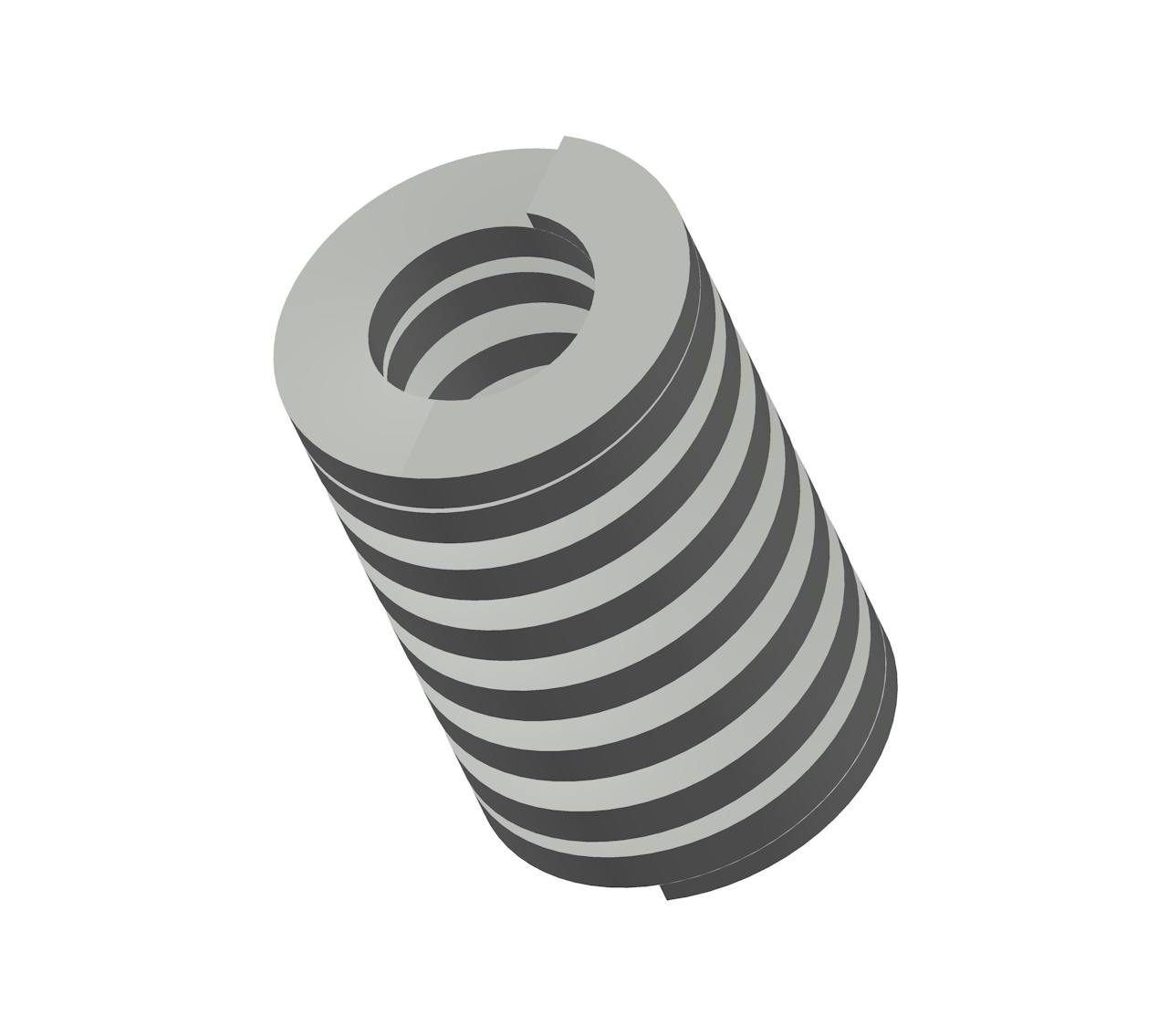

D-42CS - 1.5 Inch Oil Tempered Die Spring

Inventory:
Estimated Lead Time

1.5 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 186 lb
Brand Century Spring
Deflection For Average Life 0.38 in
Display Name D-42
Duty Load Medium
Finish None
Free Length 1.5 in
Hole Size 1 in
Material Oil Tempered
Maximum Deflection 0.6 in
Maximum Deflection Force 298 lb
Measurement Units Standard
Rate 496 lbs/in
Rod Size 0.5 in
SKU D-42CS
Wire Diameter 0.219 in x 0.109 in
Specs (in metric)
Label Value
Average Life Deflection Force 84.35 kg
Brand Century Spring
Deflection For Average Life 9.65 mm
Display Name D-42
Duty Load Medium
Finish None
Free Length 38.1 mm
Hole Size 25.4 mm
Material Oil Tempered
Maximum Deflection 15.24 mm
Maximum Deflection Force 135.15 kg
Measurement Units Standard
Rate 86.85 N/mm
Rod Size 12.7 mm
SKU D-42CS
Wire Diameter 5.56 mm x 2.77 mm
