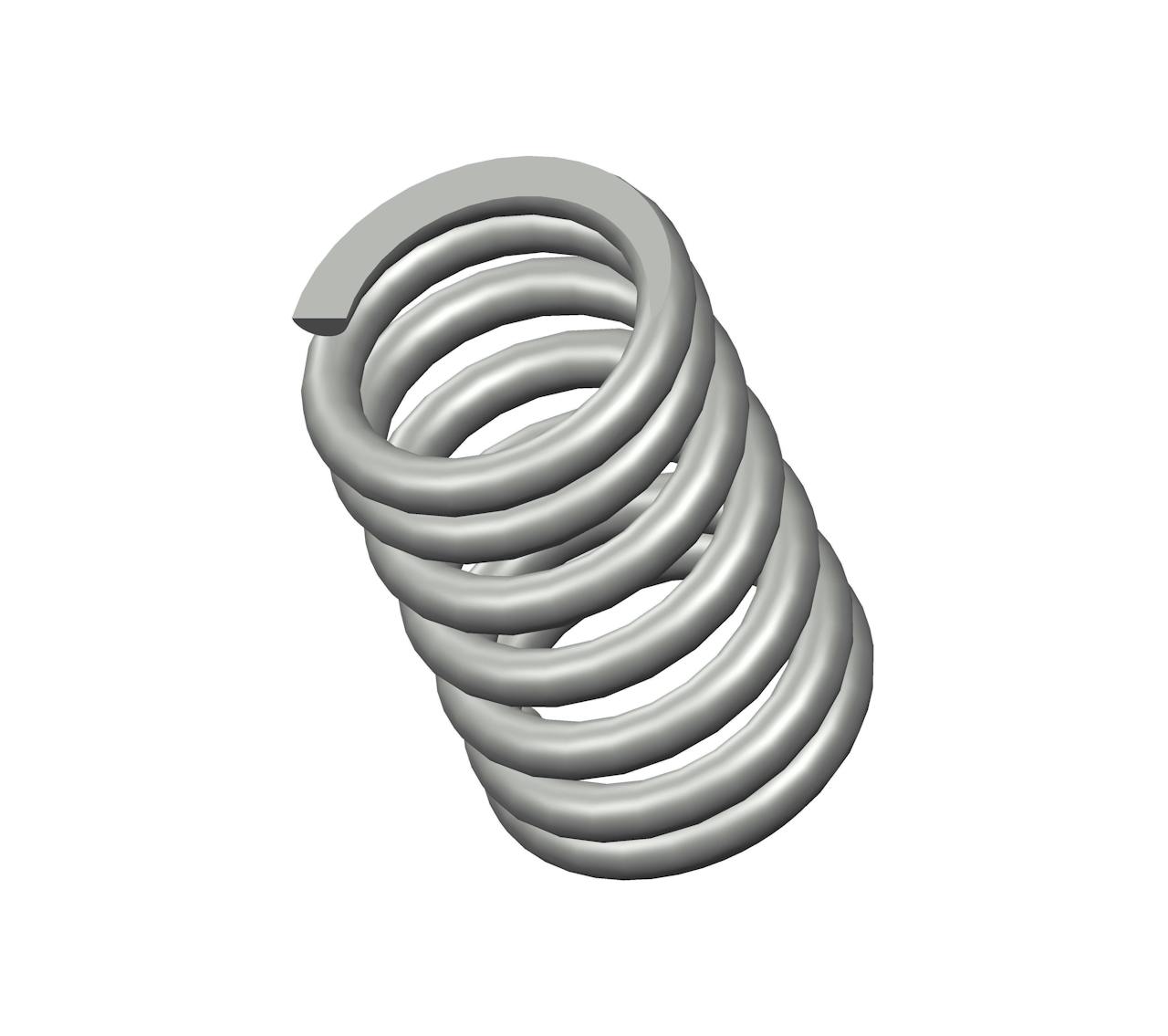

A10-51CS - 0.5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.328", and an I.D. of 0.236".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A10-51 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.236 in |
| Material | Spring Steel |
| Outside Diameter | 0.328 in |
| Part Type | Standard |
| Rate | 31 lbs/in |
| SKU | A10-51CS |
| Solid Length | 0.32 in |
| Suggested Max Deflection | 0.18 in |
| Suggested Max Load | 5.6 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.046 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A10-51 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 5.99 mm |
| Material | Spring Steel |
| Outside Diameter | 8.33 mm |
| Part Type | Standard |
| Rate | 5.43 N/mm |
| SKU | A10-51CS |
| Solid Length | 8.13 mm |
| Suggested Max Deflection | 4.57 mm |
| Suggested Max Load | 24.91 N |
| Total Coils | 7 |
| Wire Diameter | 1.17 mm |
The compression spring A10-51CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the A10-51 compression spring design exhibits exceptional tensile strength and resilience.
The A10-51 design is manufactured with a free length of 0.5", with an outer diameter of 0.328", an inner diameter of 0.236", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The A10-51CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A10-51 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A10-51 design is manufactured with a free length of 0.5", with an outer diameter of 0.328", an inner diameter of 0.236", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The A10-51CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A10-51 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
