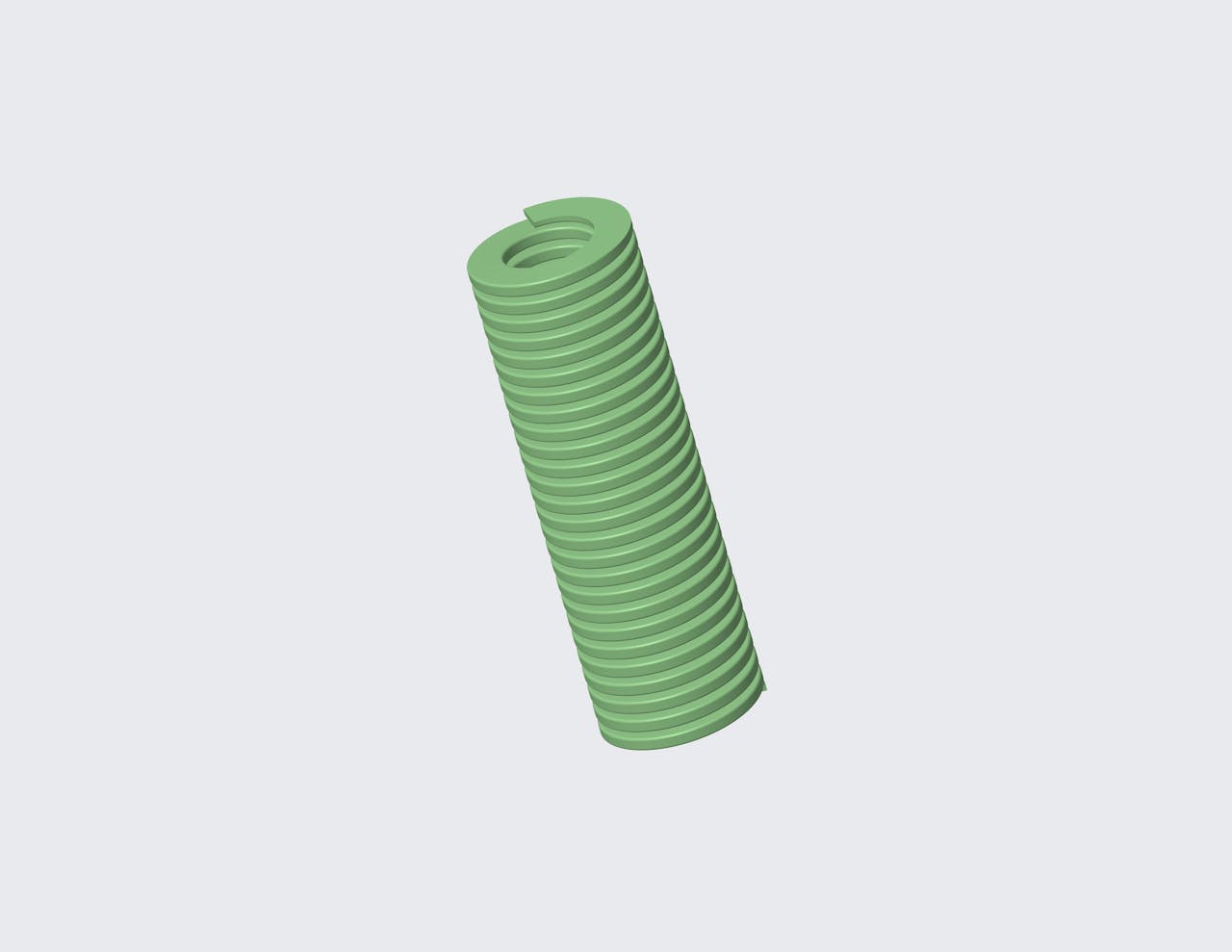

D-306207CS - 44 Millimeter Extra Heavy Duty Metric Die Spring

Inventory:
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 44 Millimeter long and has a 27.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.2953 in
Deflection 2 0.3465 in
Deflection 3 0.4331 in
Display Name D-306207
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 1.7323 in
Hole Size 0.4921 in
Load 1 46.7626 lbf
Load 2 55.0809 lbf
Load 3 68.795 lbf
Load At Max Deflection 103.1924 lbf
Material Chrome Silicon
Max Deflection 0.6496 in
Measurement Units Metric
Rate 158.7664 lbs/in
Rod Size 0.2756 in
SKU D-306207CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 7.5 mm
Deflection 2 8.8 mm
Deflection 3 11 mm
Display Name D-306207
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 44 mm
Hole Size 12.5 mm
Load 1 208 N
Load 2 245 N
Load 3 306 N
Load At Max Deflection 459 N
Material Chrome Silicon
Max Deflection 16.5 mm
Measurement Units Metric
Rate 27.8 N/mm
Rod Size 7 mm
SKU D-306207CS
