Century Spring

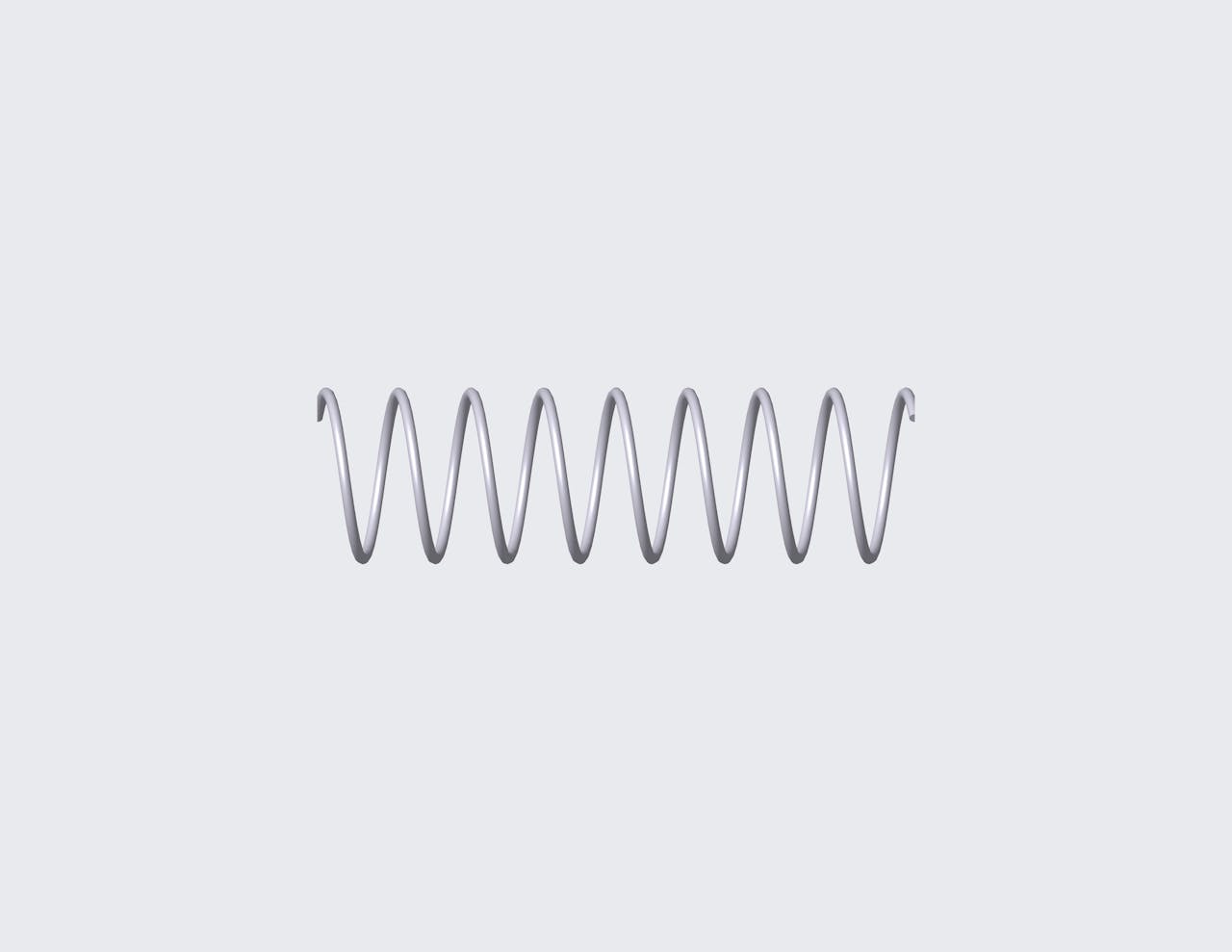

50359SCS - 1.575" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 8.1 coils and closed & ground ends. This spring features an O.D. of 0.467", and an I.D. of 0.407".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50359S
Ends Closed & Ground
Finish Passivated
Free Length 1.575 in
Inside Diameter 0.407 in
Material 316 Stainless Steel
Outside Diameter 0.467 in
Rate 1.866 lbs/in
SKU 50359SCS
Solid Length 0.239 in
Suggested Max Deflection 0.93 in
Suggested Max Load 1.736 lbf
Total Coils 8.1
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50359S
Ends Closed & Ground
Finish Passivated
Free Length 40.01 mm
Inside Diameter 10.34 mm
Material 316 Stainless Steel
Outside Diameter 11.86 mm
Rate 0.33 N/mm
SKU 50359SCS
Solid Length 6.07 mm
Suggested Max Deflection 23.62 mm
Suggested Max Load 7.72 N
Total Coils 8.1
Wire Diameter 0.76 mm
The compression spring 50359SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50359S compression spring design exhibits exceptional tensile strength and resilience.

The 50359S design is manufactured with a free length of 1.575", with an outer diameter of 0.467", an inner diameter of 0.407", and a total of 8.1 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.866 lbs/in.

The 50359SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50359S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
