Century Spring

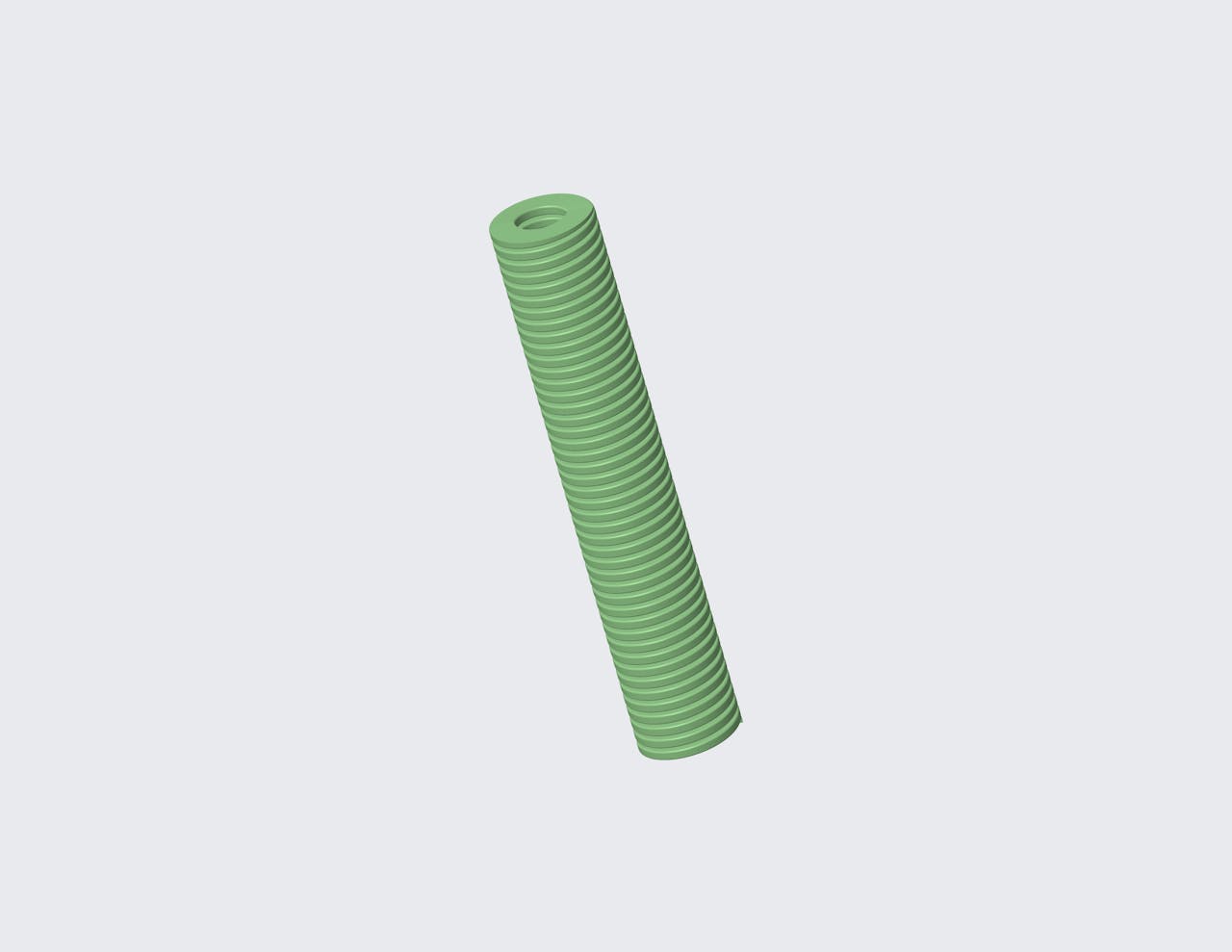

D-305632CS - 203 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 203 Millimeter long and has a 60.7 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.5984 in
Deflection 2 2 in
Deflection 3 2.3976 in
Display Name D-305632
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 7.9921 in
Hole Size 1.2598 in
Load 1 553.732 lbf
Load 2 691.9964 lbf
Load 3 830.4856 lbf
Load At Max Deflection 958.6331 lbf
Material Chrome Silicon
Max Deflection 2.7677 in
Measurement Units Metric
Rate 346.6591 lbs/in
Rod Size 0.6299 in
SKU D-305632CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 40.6 mm
Deflection 2 50.8 mm
Deflection 3 60.9 mm
Display Name D-305632
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 203 mm
Hole Size 32 mm
Load 1 2463 N
Load 2 3078 N
Load 3 3694 N
Load At Max Deflection 4264 N
Material Chrome Silicon
Max Deflection 70.3 mm
Measurement Units Metric
Rate 60.7 N/mm
Rod Size 16 mm
SKU D-305632CS
